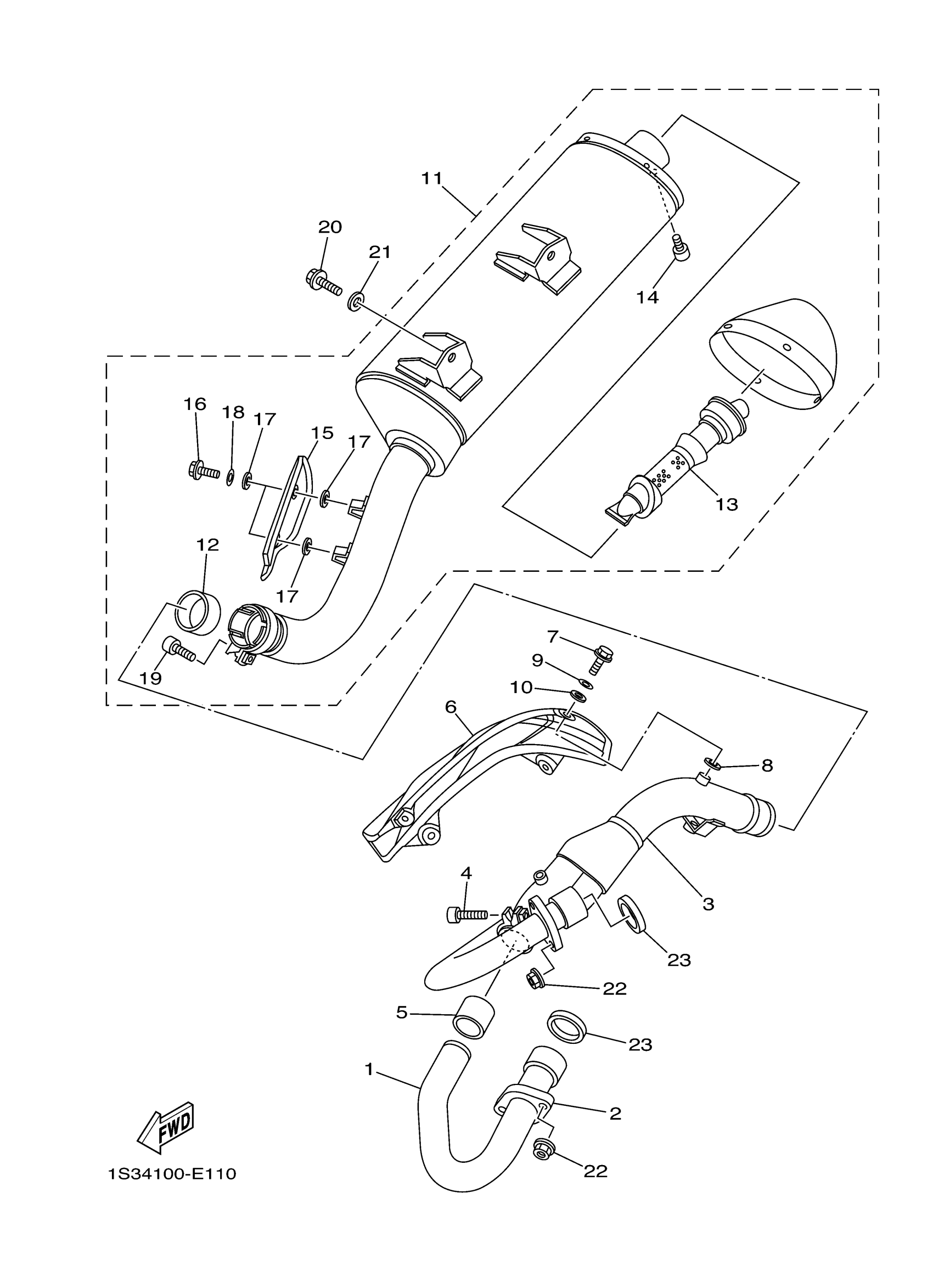

Yamaha YFM7RSEDL (RAPTOR 700R SPECIAL EDITION) 1VS10 2013 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1S3-14611-00-00

$122.99

2

NUT, RING

1S3-14612-00-00

Unavailable

3

PIPE, EXHAUST 2

1S3-14621-01-00

$303.99

4

BOLT, SOCKET

91314-08035-00

$2.22

5

GASKET, MUFFLER

3YF-14714-00-00

$36.99

6

PROTECTOR, EXHAUST PIPE

1S3-14628-00-00

$149.99

7

BOLT, FLANGE

95022-06012-00

$3.29

8

WASHER, PLATE

90201-05015-00

$8.49

9

WASHER, PLATE

90201-06013-00

Unavailable

10

WASHER, PLATE

90201-05019-00

$4.41

11

MUFFLER ASSY 1

1S3-14710-12-00

Unavailable

12

GASKET, MUFFLER

5LP-14714-00-00

$29.99

13

PIPE, OUTLET

1S3-14752-00-00

Unavailable

14

BOLT,SOCKET

91317-06010-00

$9.49

15

PROTECTOR, MUFFLER 2

1S3-14728-00-00

$29.99

16

SCREW, BIND(1JK)

98980-06010-00

Unavailable

17

WASHER, PLATE

90201-05015-00

$8.49

18

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

19

BOLT, SOCKET

91314-08035-00

$2.22

20

BOLT, FLANGE

90105-08142-00

Unavailable

21

WASHER, PLATE

90201-08048-00

Unavailable

22

NUT,FLANGE(J10)

95702-08500-00

Unavailable

23

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
