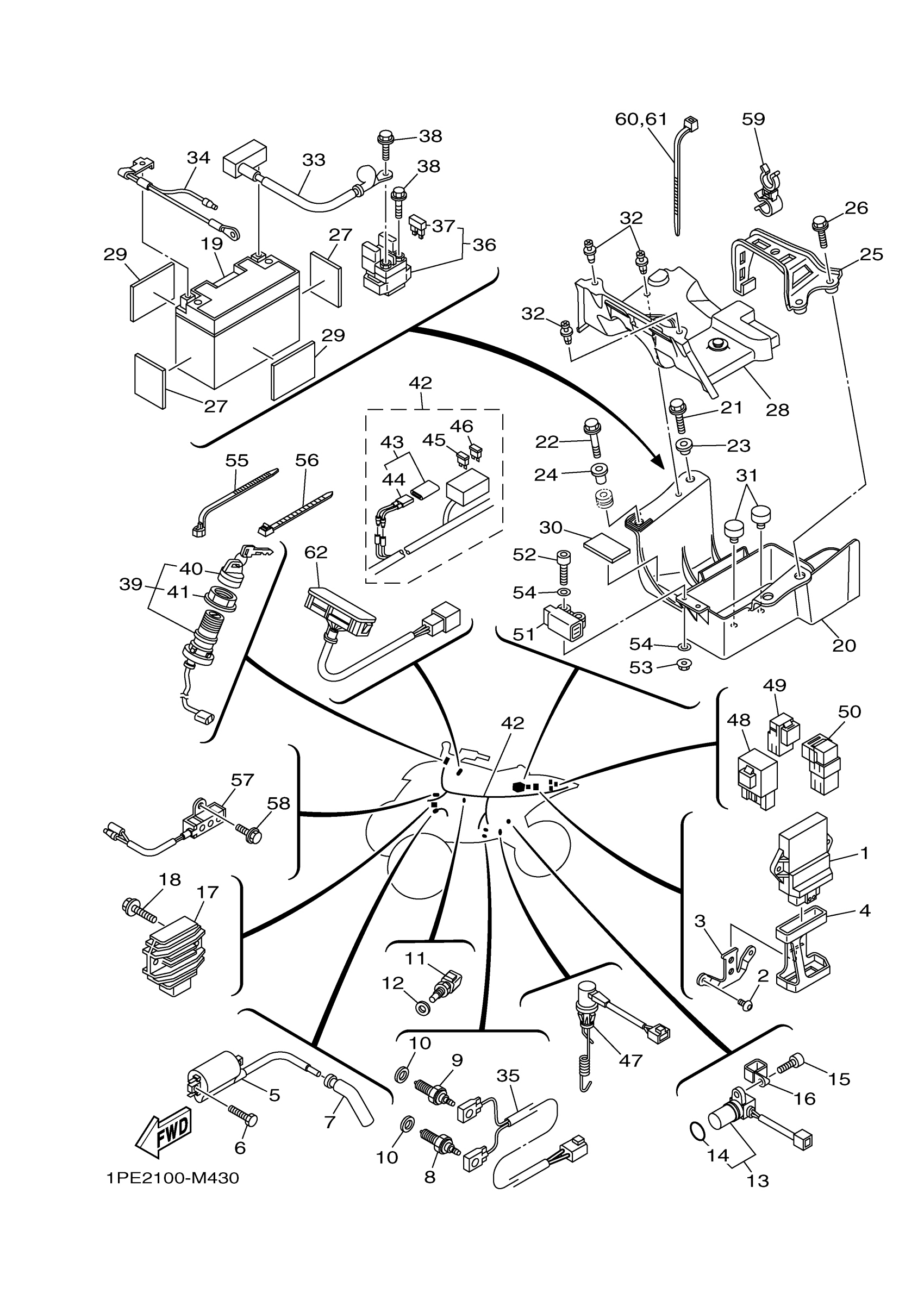

Yamaha YFM7RSEDL (RAPTOR 700R SPECIAL EDITION) 1VS10 2013 ELECTRICAL 1 Diagram

Engine Control Unit Assembly

1S3-8591A-01-00

$914.99

BOLT, BUTTON HEAD

92012-06010-00

$4.30

BRACKET, C.D.I. UNIT

1S3-21274-00-00

Unavailable

BAND

1S3-85546-00-00

$25.99

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

BOLT(3JK)

97027-05020-00

$3.29

PLUG CAP ASSY

5VK-82370-00-00

$62.99

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$37.99

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

GASKET (1KH,1.0T)

90430-10148-00

$5.60

THERMOSENSOR ASSY

5PS-85790-00-00

$85.99

GASKET(2GH)

90430-12202-00

$9.49

SENSOR, SPEED

1S3-83755-02-00

$126.99

O-RING

4D9-81168-00-00

$6.99

BOLT(3MA)

91312-06016-00

$5.60

CLAMP

90461-10004-00

Unavailable

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

Unavailable

BOLT, FLANGE

95817-06025-00

Unavailable

GT9B4 GS BATTERY - FA

GT9-B4000-00-00

Unavailable

BOX, BATTERY 1

1PE-H212B-00-00

Unavailable

BOLT, FLANGE

90105-06084-00

Unavailable

BOLT, FLANGE

95817-06030-00

Unavailable

COLLAR

90387-06153-00

Unavailable

COLLAR

90387-06158-00

Unavailable

BRACKET, BATTERY

1PE-H2128-00-00

Unavailable

BOLT, FLANGE

95817-06020-00

Unavailable

SEAT, BATTERY

1S3-82123-00-00

Unavailable

COVER, BATTERY

1PE-H2129-00-00

Unavailable

PLATE, FOOTREST

4HC-27415-00-00

Unavailable

DAMPER

22F-2139X-00-00

Unavailable

PAD, BATTERY

5TG-82121-10-00

Unavailable

RIVET

90269-06002-00

Unavailable

WIRE, PLUS LEAD

1PE-H2115-00-00

Unavailable

WIRE, MINUS LEAD

1PE-H2116-00-00

Unavailable

WIRE, LEAD

1S3-82541-00-00

Unavailable

STARTER RELAY ASSY (2768112-A)

5UG-81940-00-00

Unavailable

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

BOLT, FLANGE

95022-06008-00

Unavailable

MAIN SWITCH ASSY

4SH-82510-01-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

WIRE HARNESS ASSY

1PE-82590-00-00

Unavailable

CIRCUIT BREAKER ASSY

3D5-82180-00-00

Unavailable

THERMO SWITCH ASSY

3D5-82560-00-00

Unavailable

. FUSE (10A)

67F-82151-40-00

Unavailable

FUSE

5JJ-82151-20-00

Unavailable

STOP SWITCH ASSY

1S3-82530-11-00

Unavailable

RELAY ASSY

5VK-81950-33-00

Unavailable

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

RELAY ASSY

5DM-81950-01-00

Unavailable

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

BOLT

91312-04025-00

Unavailable

NUT, FLANGE

95707-04500-00

Unavailable

WASHER, PLATE

90201-04030-00

Unavailable

CLAMP(4FM)

90464-15195-00

Unavailable

CLAMP (6E5)

90465-13M11-00

Unavailable

RESISTOR ASSY

1S3-85370-00-00

Unavailable

BOLT, FLANGE

95812-06010-00

Unavailable

CLAMP

90464-16013-00

Unavailable

CLAMP

90465-10098-00

Unavailable

CLAMP

90465-10098-00

Unavailable

PILOT LIGHT ASSY

1S3-83530-01-00

Unavailable
