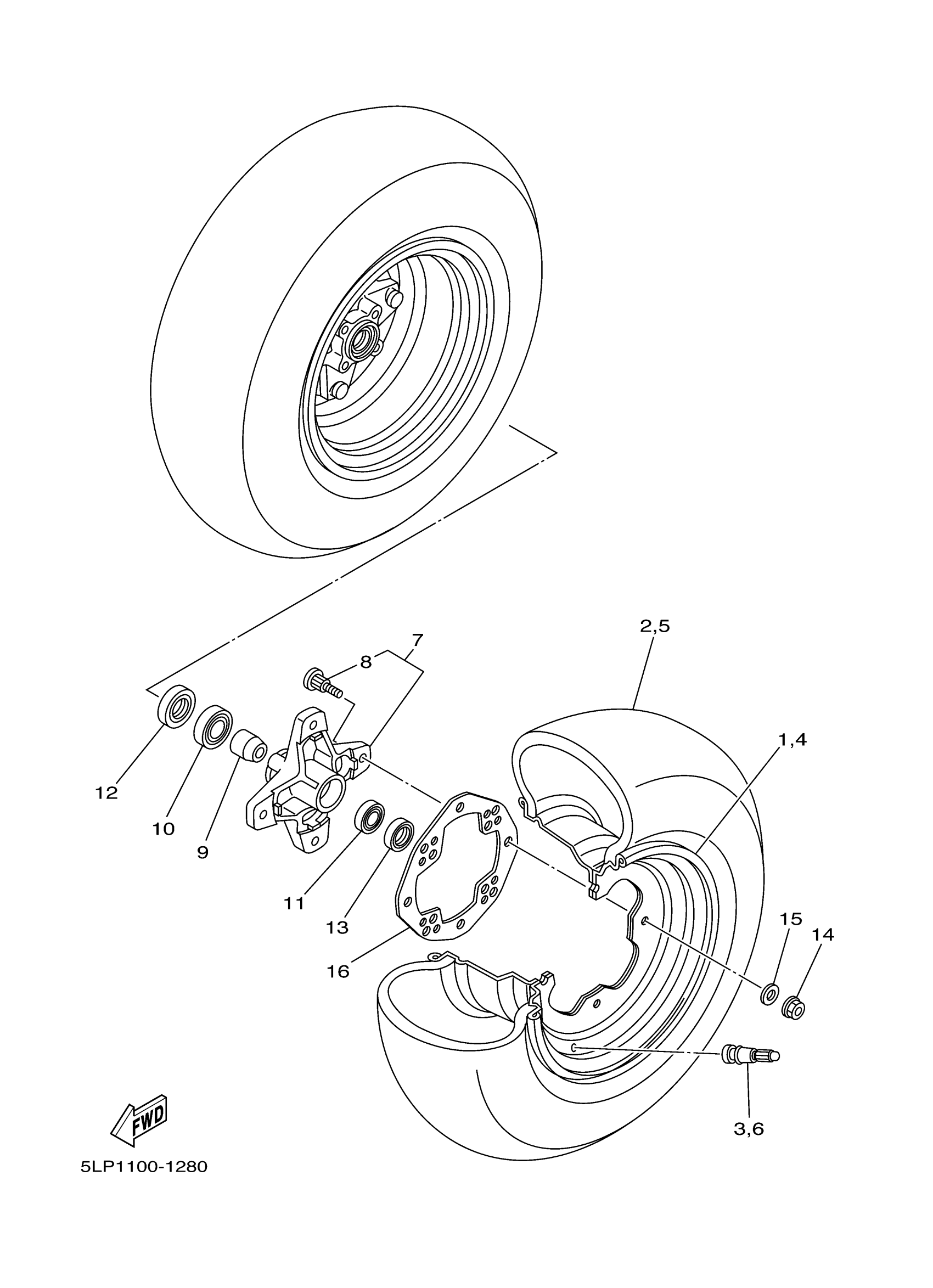

Yamaha YFM7RSEB (RAPTOR 700 SPECIAL EDITION) 1ASG 2012 FRONT WHEEL Diagram

Description

Price

WHEEL COMP.

1S3-25180-11-YX

$291.95

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$13.50

WHEEL COMP.

1S3-25180-11-YX

$291.95

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

VALVE, RIM(2GH)

93900-00030-00

$13.50

HUB, FRONT

1PE-F5111-00-00

$124.89

BOLT, SERRATION

90114-10006-00

$4.81

SPACER, BEARING

5LP-25117-00-00

$14.07

BEARING

93306-00446-00

$34.51

. BEARING

93306-20231-00

$18.41

OIL SEAL(1UY)

93105-26026-00

$9.99

OIL SEAL (7H5)

93102-22216-00

$9.25

NUT, FLANGE(3BM)

95704-10500-00

$1.68

958-69527-00 WASHER, PLAIN

92990-10200-00

$2.67

COVER, PLATE

1S3-25127-01-00

$6.68
