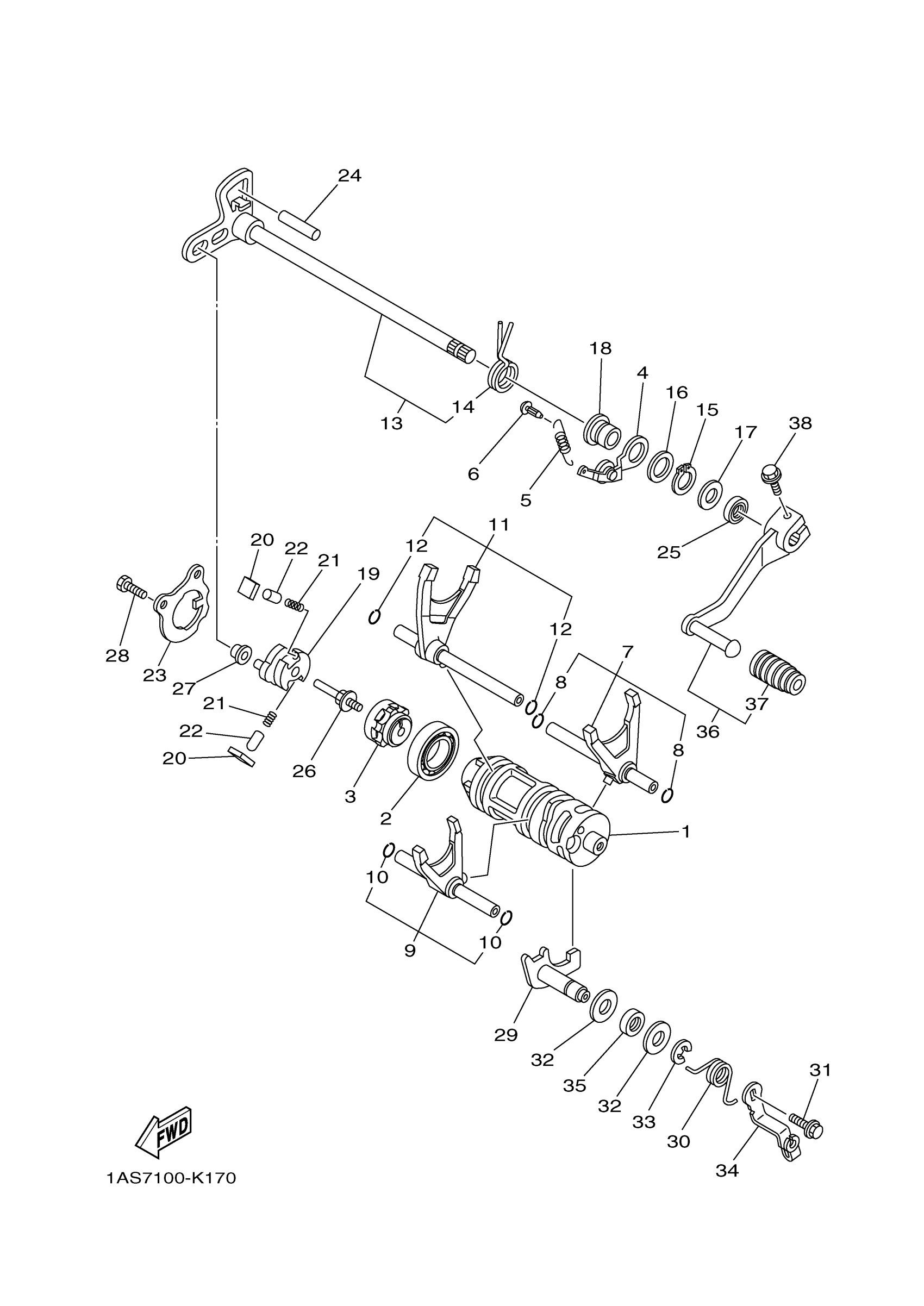

Yamaha YFM7RSEA (700 SPECIAL EDITION) 1ASA 2011 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

1S3-18541-01-00

Unavailable

2

BEARING

93306-90509-00

$31.85

3

SEGMENT

4EW-18185-00-00

$90.43

4

STOPPER LEVER ASSY

1S3-18140-00-00

$18.17

5

HANGER, SPRING

5JW-18144-00-00

$5.55

6

HOOK, SPRING

132-16346-00-00

$8.14

7

FORK, SHIFT 1

1S3-18501-00-00

$82.24

8

CIRCLIP(1AA)

93440-09141-00

$1.64

9

FORK, SHIFT 2

1S3-18502-00-00

$82.98

10

CIRCLIP(1AA)

93440-09141-00

$1.64

11

FORK, SHIFT 3

1S3-18503-00-00

$102.27

12

CIRCLIP(1AA)

93440-09141-00

$1.64

13

SHIFT SHAFT ASSY

1S3-18101-10-00

$83.59

14

SPRING, TORSION

90508-35007-00

$5.80

15

CIRCLIP(1EY)

99009-17400-00

$3.65

16

WASHER, PLATE (30X)

90201-177G4-00

Unavailable

17

WASHER, PLATE

90201-12040-00

Unavailable

18

BOSS 1

5VK-18699-00-00

Unavailable

19

LEVER, SHIFT 2

1S3-18122-01-00

$73.09

20

PAWL, SHIFTER

3XJ-18182-00-00

Unavailable

21

SPRING, COMPRESSION(3XJ)

90501-052G5-00

Unavailable

22

PIN, PAWL

3XJ-18184-00-00

Unavailable

23

GUIDE, SHIFT

1S3-18172-00-00

Unavailable

24

PIN, DOWEL

93608-30002-00

Unavailable

25

OIL SEAL (4G0)

93102-12224-00

Unavailable

26

PIN, SHIFT

3XJ-18173-10-00

Unavailable

27

ROLLER, SHIFT LEVER

3XJ-18178-00-00

Unavailable

28

BOLT

90101-06664-00

$2.44

29

SHIFTER BRKT. ASSY

1S3-18380-00-00

Unavailable

30

SPRING

5LP-18337-01-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

WASHER, PLATE (353)

90201-12575-00

Unavailable

33

CIRCLIP

99006-10600-00

Unavailable

34

BRACKET, SHIFTER

5LP-18431-00-00

Unavailable

35

OIL SEAL (12X22X5-371)

93102-12106-00

Unavailable

36

SHIFT PEDAL ASSY

1S3-18110-10-00

Unavailable

37

COVER, SHIFT PEDAL

5YT-18113-00-00

Unavailable

38

BOLT, FLANGE

90105-06142-00

Unavailable
