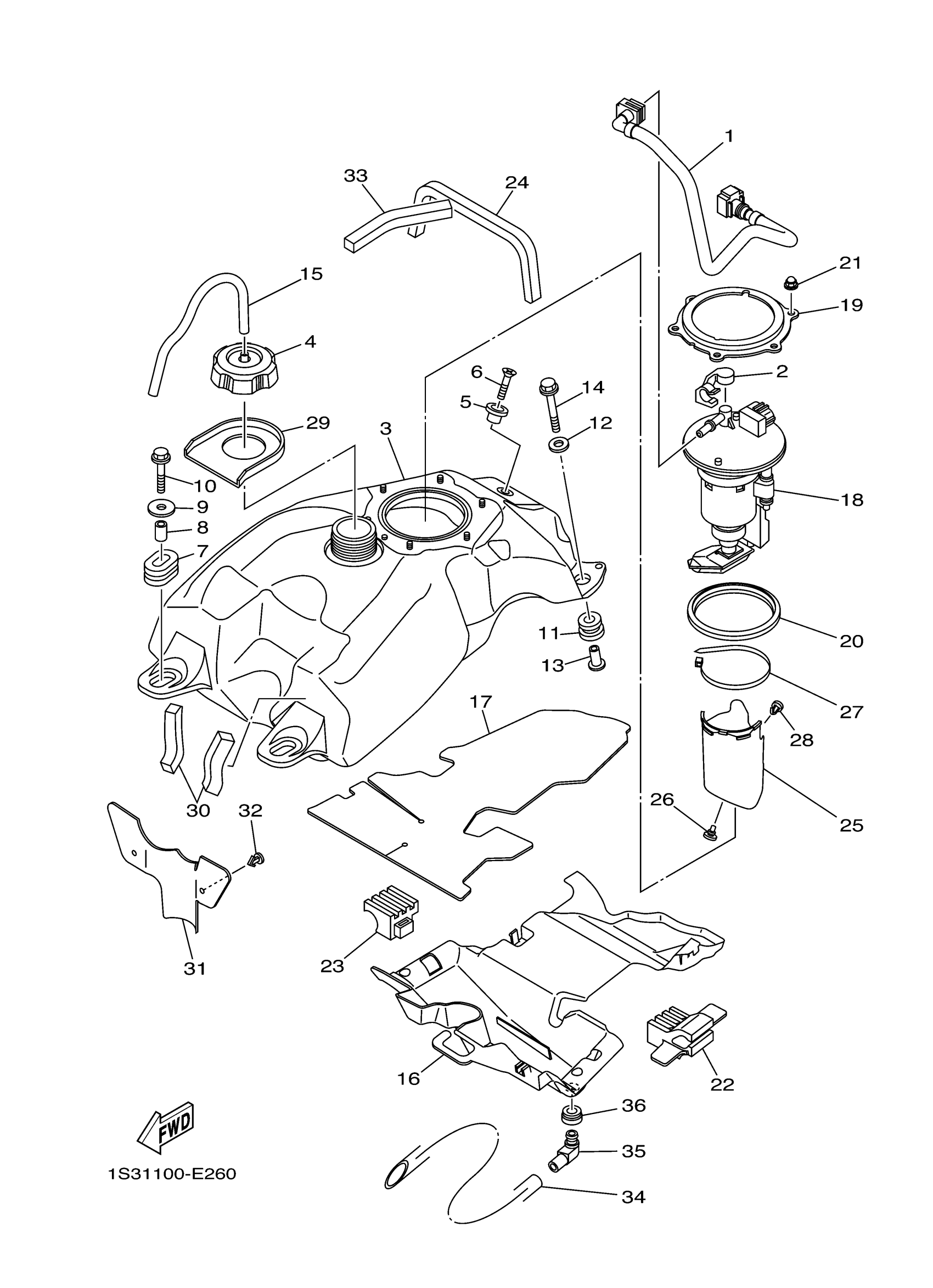

Yamaha YFM7RAW (RAPTOR 700R) 1AS70 2011 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

1S3-13971-11-00

$73.99

2

CLAMP

90464-14004-00

$7.49

3

FUEL TANK COMP.

1S3-24110-20-00

Unavailable

4

CAP ASSY

2FJ-24610-20-00

$68.99

5

BRACKET, SEAT

4EW-2412F-00-00

$14.49

6

SCREW, FLAT HEAD

98702-06025-00

$8.49

7

GROMMET

90480-01017-00

Unavailable

8

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

9

WASHER, PLATE

90201-06090-00

$5.60

10

BOLT, FLANGE

95817-06035-00

$7.49

11

GROMMET

90480-18005-00

$8.49

12

WASHER, PLATE

90201-06033-00

$2.97

13

COLLAR

90387-06098-00

$8.49

14

BOLT, FLANGE

95817-06035-00

$7.49

15

HOSE (L600)

90445-083J5-00

$10.49

16

DAMPER, PLATE 1

1S3-2414H-00-00

Unavailable

17

INSULATOR, FUEL TANK 1

1S3-2416F-00-00

Unavailable

18

FUEL PUMP COMP.

1S3-13907-13-00

Unavailable

19

BRACKET, FUEL PUMP

1S3-24491-10-00

Unavailable

20

O-RING

1S3-24486-00-00

Unavailable

21

NUT (J17)

95380-06800-00

Unavailable

22

STOPPER 1

1S3-24278-00-00

Unavailable

23

STOPPER 2

1S3-24279-00-00

Unavailable

24

DAMPER, LOCATING 1

1S3-24181-00-00

Unavailable

25

COVER

1S3-24452-00-00

Unavailable

26

PLUG

90338-05008-00

Unavailable

27

CLAMP

90464-66001-00

Unavailable

28

RIVET

90269-07011-00

Unavailable

29

DAMPER, PLATE 2

1S3-2414J-00-00

Unavailable

30

DAMPER, LOCATING 2

1S3-24182-00-00

Unavailable

31

PLATE

1S3-2413X-00-00

Unavailable

32

RIVET(81E)

90269-05055-00

Unavailable

33

DAMPER, LOCATING 3

1S3-24183-00-00

Unavailable

34

HOSE (L400)

90445-16007-00

Unavailable

35

PIPE

31A-14419-00-00

Unavailable

36

GROMMET

31A-14435-01-00

Unavailable
