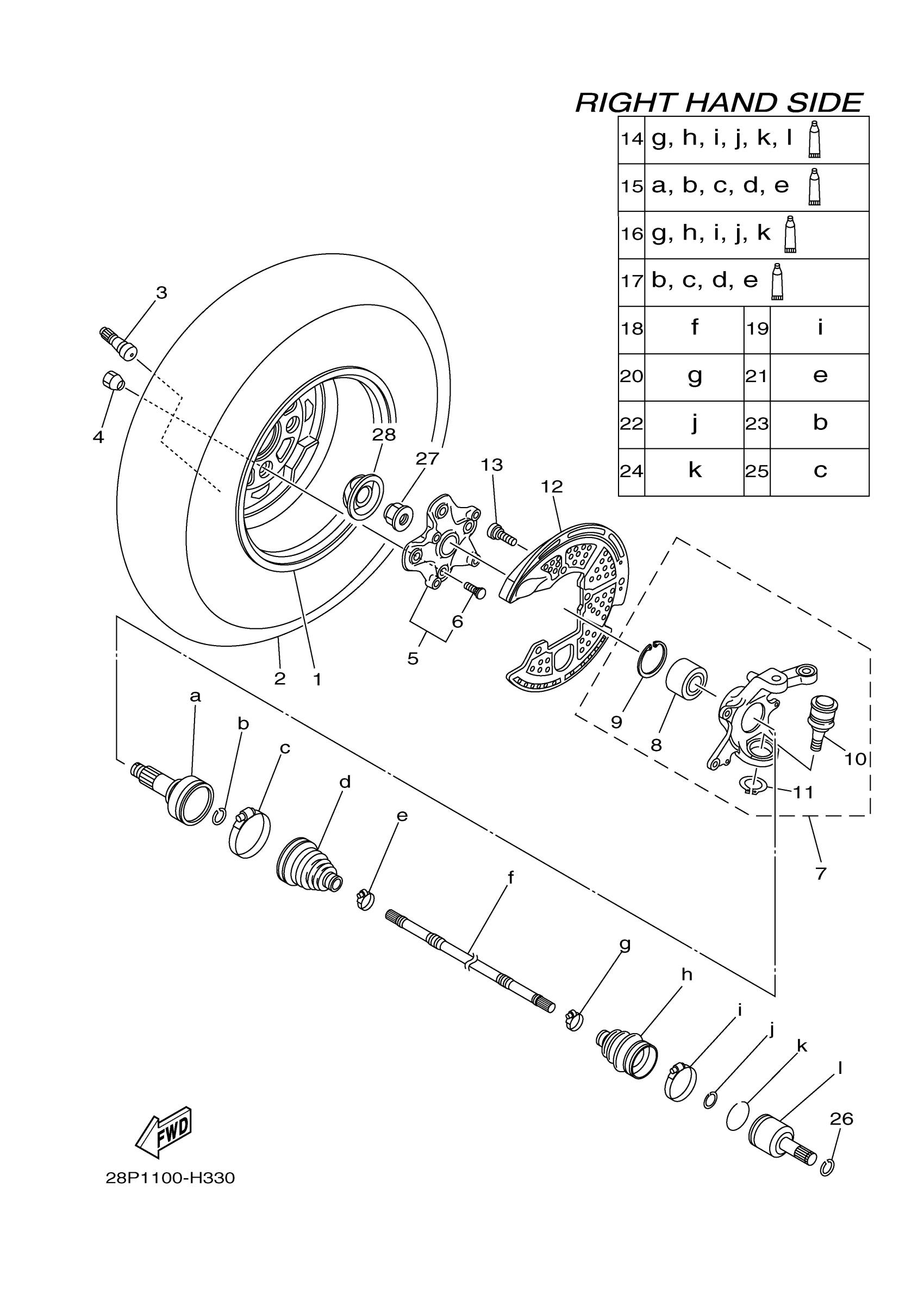

Yamaha YFM7FGZL (GRIZZLY 700 FI 4WD) 5C0E1 2010 FRONT WHEEL 2 Diagram

#

Description
Price

1

WHEEL COMP.

B16-F5180-00-00

$208.99

2

AT25X8.00-12 MU19

94108-12817-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT

90179-10020-00

$5.60

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

STEERING KNUCKLE ASSY (RIGHT)

3B4-23502-01-00

$506.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BALL JOINT 2

3B4-23579-01-00

$83.99

11

CIRCLIP(4A6)

99009-30400-00

$8.49

12

RING, WHEEL 2 (RIGHT)

3B4-2515A-00-00

$14.49

13

SCREW, BINDING (31K)

90154-06014-00

$8.49

14

DOUBLE OFF SET JOI

28P-2510J-02-00

$293.99

15

BALL JOINT SET

28P-2510F-05-00

$506.99

16

BOOT SET(DOUBLE OF

28P-2510H-03-00

Unavailable

17

BOOT SET (BALL JOI

28P-2510G-02-00

Unavailable

18

SHAFT

28P-2518E-00-00

Unavailable

19

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

20

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

21

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

22

SNAP RING

3B4-2512J-00-00

Unavailable

23

CIRCLIP

3B4-2512H-00-00

Unavailable

24

CIRCLIP

3B4-25182-00-00

Unavailable

25

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

26

CIRCLIP(2HR)

93450-22119-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

CAP, WHEEL

1HP-F512A-00-00

Unavailable
