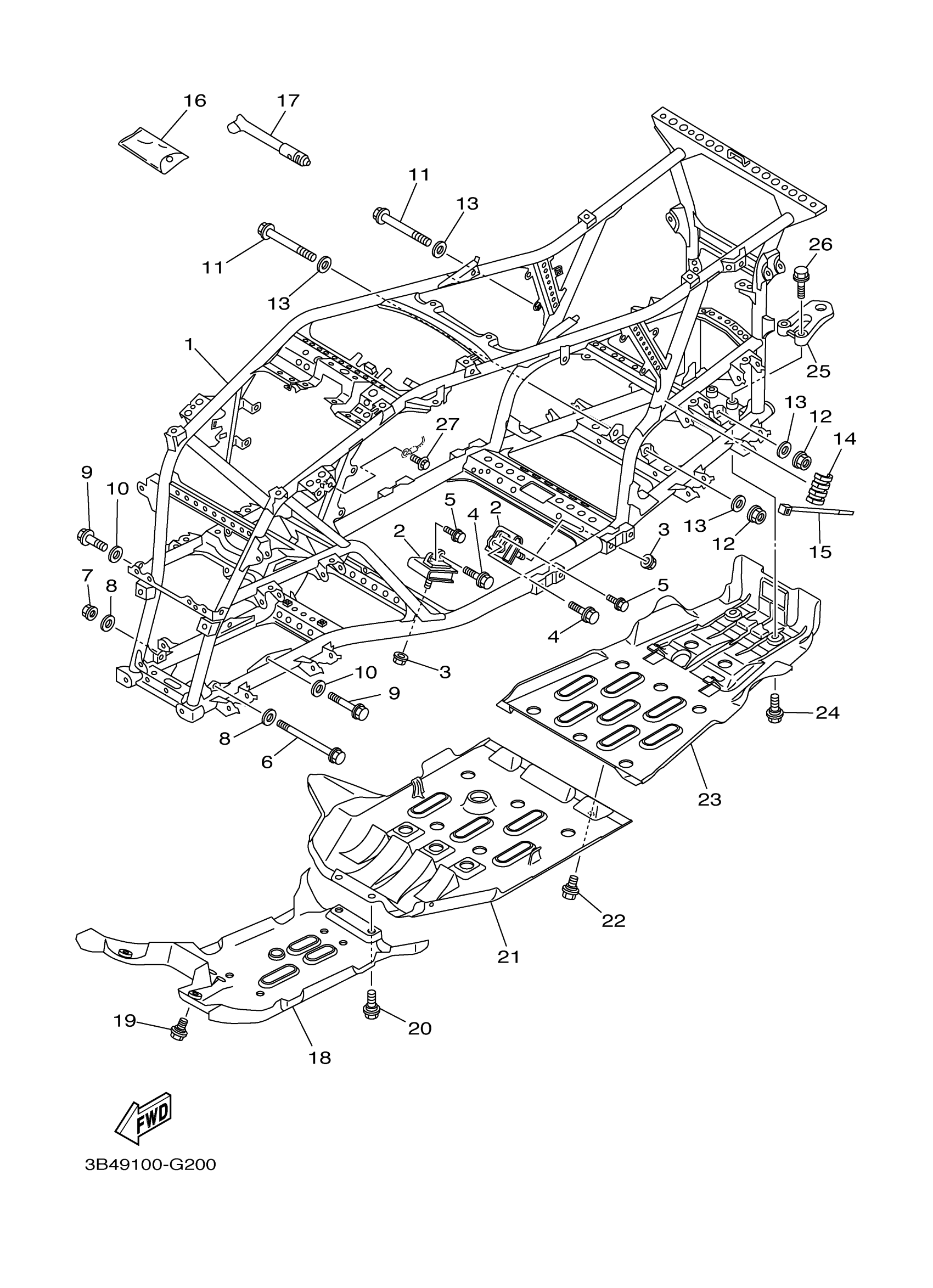

Yamaha YFM7FGZL (GRIZZLY 700 FI 4WD) 5C0E1 2010 FRAME Diagram

#

Description
Price

1

FRAME COMPLETE

1HP-F1110-B9-00

Unavailable

2

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

3

NUT, S/L FLANGE

95602-10200-00

$4.82

4

BOLT, FLANGE

95812-10035-00

$5.60

5

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

6

BOLT, FLANGE

90105-10219-00

$7.49

7

NUT, SELF-LOCKING

90185-10011-00

$5.60

8

WASHER, PLATE

90201-10035-00

$4.19

9

BOLT, FLANGE

95817-10030-00

$8.49

10

WASHER, PLATE

90201-10035-00

$4.19

11

BOLT, FLANGE

90105-10238-00

$8.49

12

NUT, SELF-LOCKING

90185-10011-00

$5.60

13

WASHER, PLATE

90201-10035-00

$4.19

14

DAMPER

3B4-2113B-01-00

$18.49

15

CLAMP(3XW)

90464-35132-00

$9.49

16

TOOL KIT

28P-28100-00-00

Unavailable

17

GAUGE, AIR

1NV-2811A-01-00

Unavailable

18

GUARD, ENGINE 1

1HP-F147A-01-00

Unavailable

19

BOLT

90109-06202-00

Unavailable

20

BOLT

90109-06214-00

Unavailable

21

GUARD, ENGINE 2

1HP-F147E-02-00

Unavailable

22

BOLT

90109-06214-00

Unavailable

23

GUARD, ENGINE 3

1HP-F147F-01-00

Unavailable

24

BOLT

90109-06202-00

Unavailable

25

HOOK

1HP-F8488-00-00

Unavailable

26

BOLT, FLANGE

95812-10035-00

$5.60

27

BOLT, FLANGE

95817-06012-00

Unavailable
