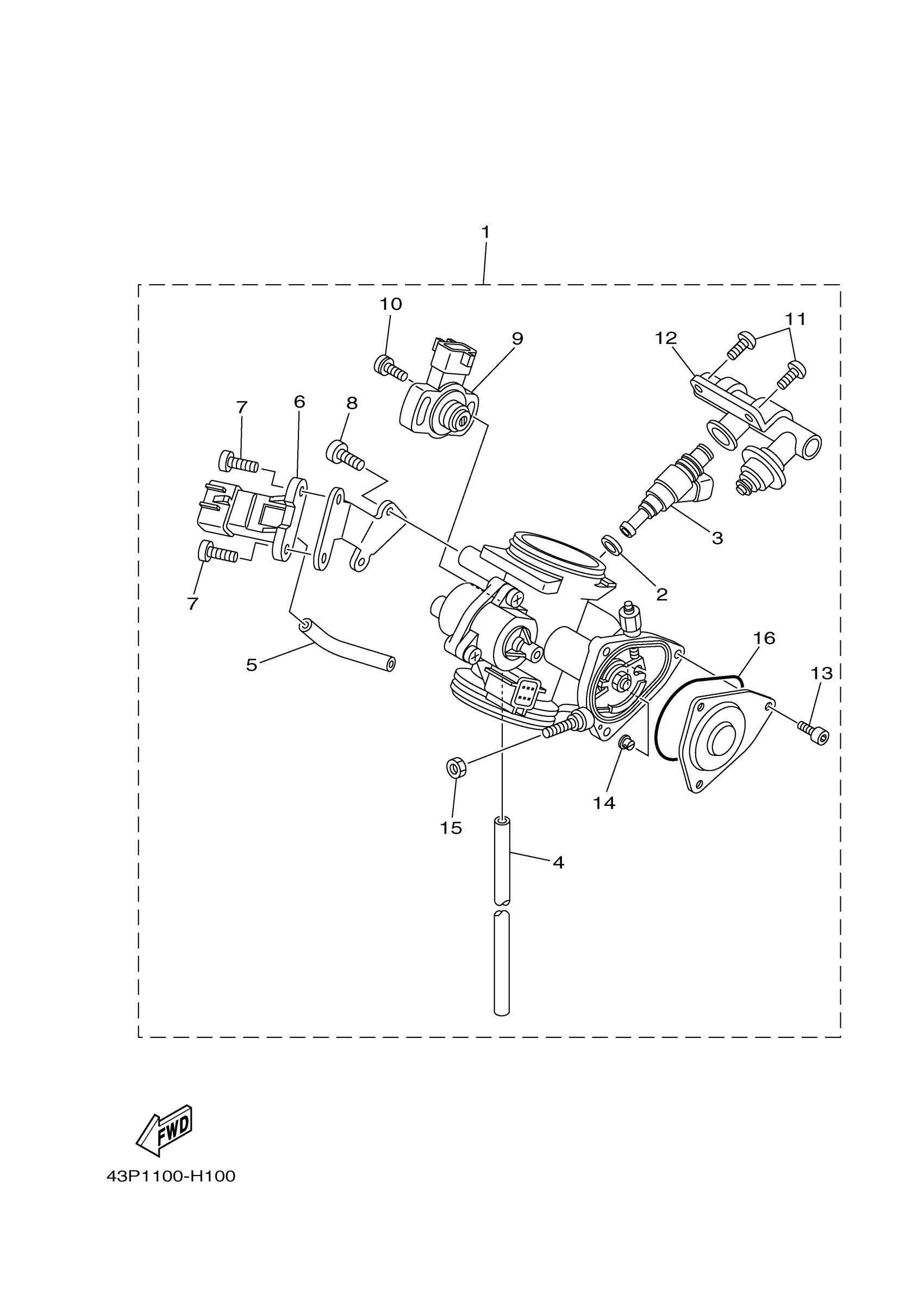

Yamaha YFM7FGYL (GRIZZLY 700 FI 4WD) 5C0A00 2009 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

43P-13750-12-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

INJECTOR ASSY

3B4-13761-00-00

$225.99

4

HOSE, AIR

28P-13543-00-00

Unavailable

5

PIPE 1

5JW-14348-00-00

$20.99

6

SENSOR, PRESSURE

1C7-82380-00-00

$184.99

7

SCREW, PAN

98507-06010-00

$3.55

8

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

9

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

10

SCREW

8CC-14216-10-00

$7.99

11

SCREW, PAN

98517-06012-00

$3.78

12

DELIVERY PIPE ASSY 1

3B4-13160-00-00

$258.99

13

BOLT

91312-04006-00

$2.97

14

GUIDE, CABLE

1UY-14155-00-00

$18.49

15

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

16

O-RING

5LP-14147-00-00

Unavailable
