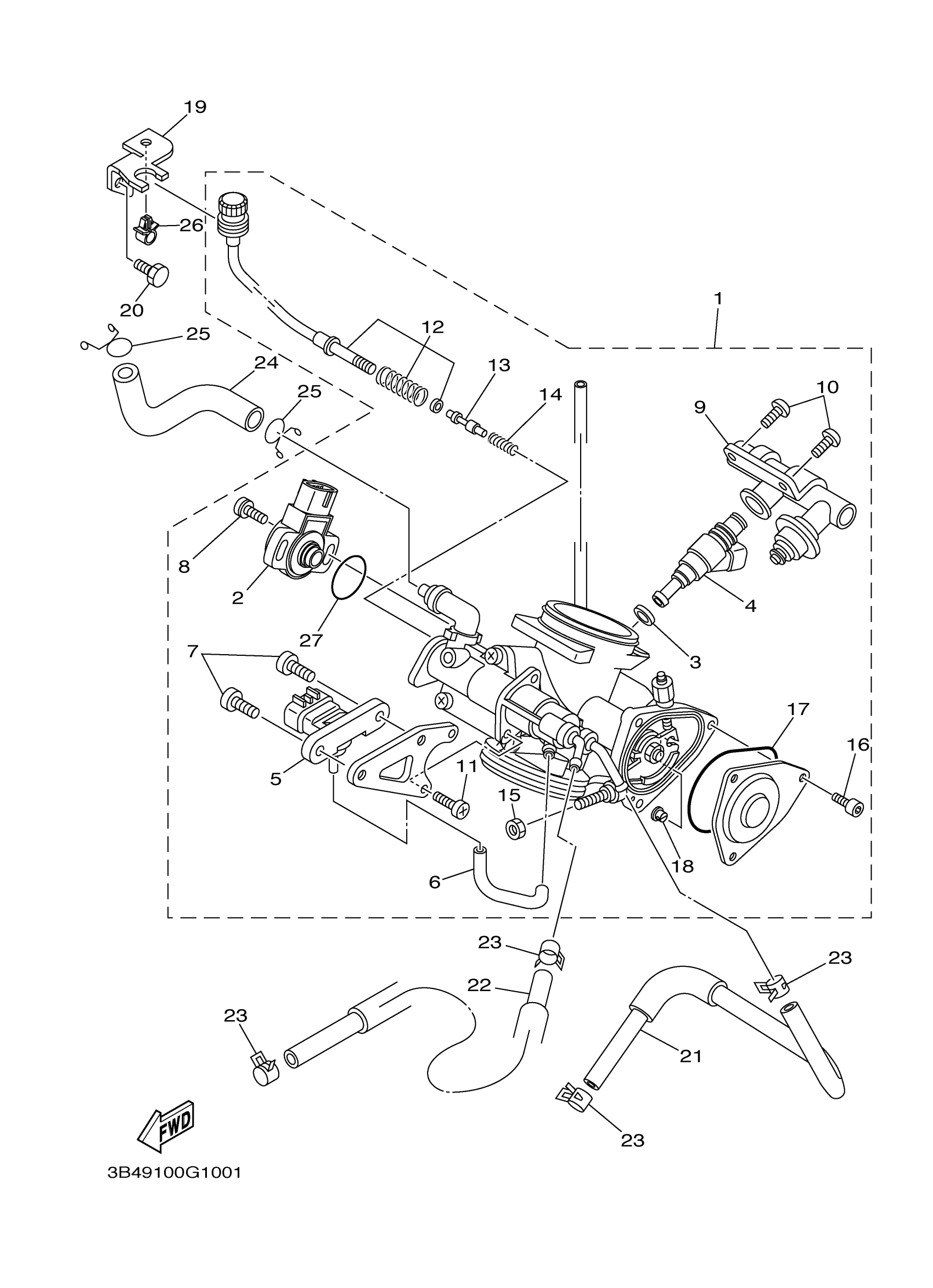

Yamaha YFM7FGXR (GRIZZLY 700) 5C010 2008 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

3B4-13750-10-00

Unavailable

2

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

3

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

4

INJECTOR ASSY

3B4-13761-00-00

$225.99

5

SENSOR, PRESSURE

1C7-82380-00-00

$184.99

6

PIPE 1

5JW-14348-00-00

$20.99

7

SCREW, PAN

98507-06010-00

$3.55

8

SCREW

8CC-14216-10-00

$7.99

9

DELIVERY PIPE ASSY 1

3B4-13160-00-00

$258.99

10

SCREW, PAN

98517-06012-00

$3.78

11

SCREW, PAN

98517-05012-00

$4.73

12

. ADJUST SCREW SET

3B4-14503-00-00

Unavailable

13

PLUNGER

1S3-13493-00-00

$47.99

14

. SPRING, AIR ADJUSTING

4BH-14134-00-00

Unavailable

15

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

16

BOLT

91312-04006-00

Unavailable

17

O-RING

5LP-14147-00-00

Unavailable

18

GUIDE, CABLE

1UY-14155-00-00

Unavailable

19

STAY

3B4-14413-10-00

Unavailable

20

BOLT (661)

97013-06012-00

Unavailable

21

HOSE 1

3B4-1243A-00-00

Unavailable

22

HOSE (L630)

90445-12006-00

Unavailable

23

CLIP

90467-110A2-00

Unavailable

24

HOSE 1

3B4-13545-00-00

Unavailable

25

CLIP

90467-140A4-00

Unavailable

26

CLAMP

90464-06007-00

Unavailable

27

O-RING

5YP-14562-00-00

Unavailable
