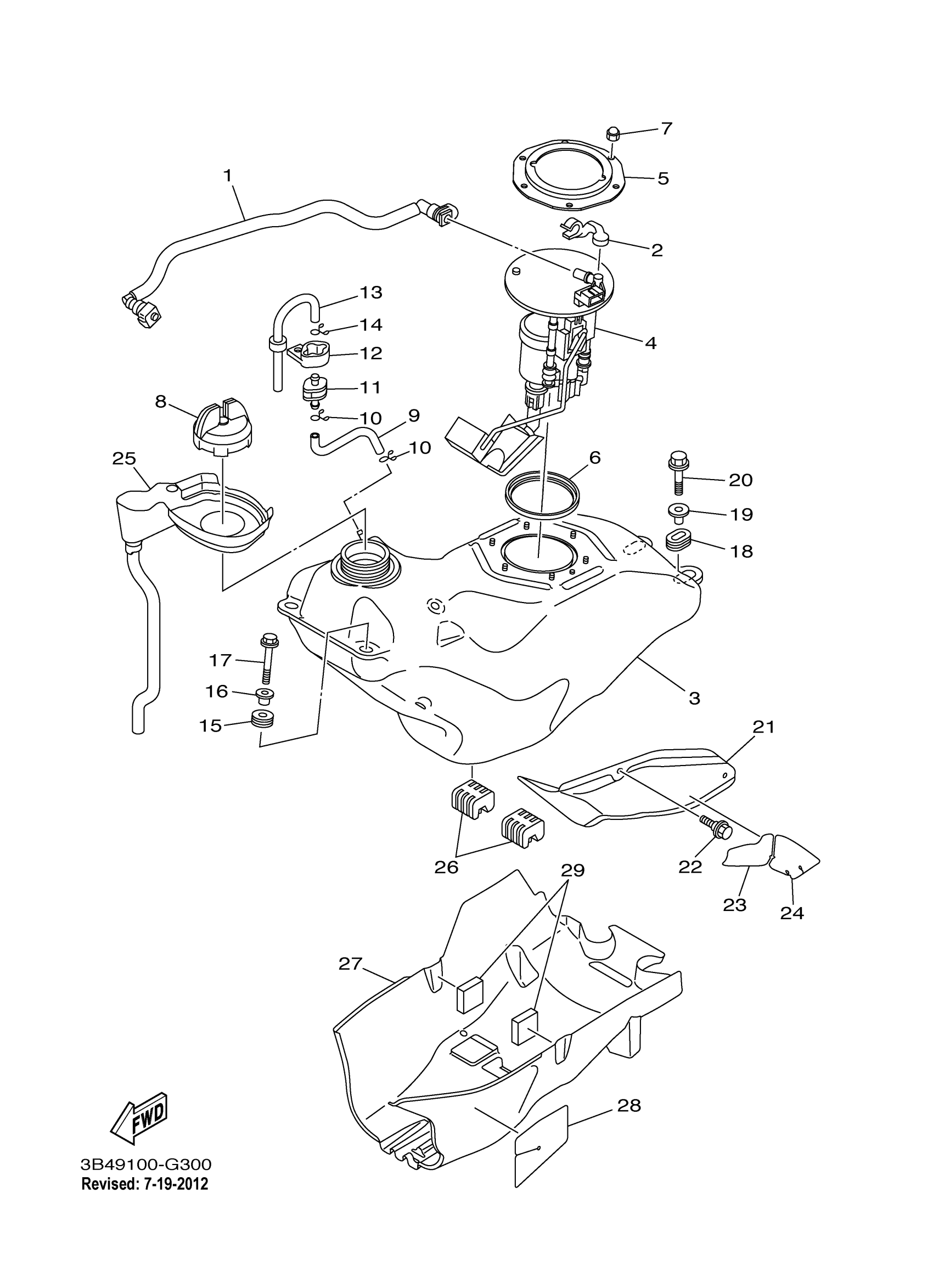

Yamaha YFM7FGXR (GRIZZLY 700) 5C010 2008 FUEL TANK Diagram

#

Description
Price

1

PIPE, FUEL 1

3B4-13971-11-00

Unavailable

2

CLAMP

90464-14004-00

$7.49

3

FUEL TANK COMP.

1HP-F4110-00-00

Unavailable

4

Fuel Pump Comp

3B4-13907-13-00

$317.99

5

BRACKET, FUEL PUMP

3B4-24491-00-00

Unavailable

6

O-RING

1S3-24486-00-00

$17.49

7

NUT (J17)

95380-06800-00

$8.49

8

CAP ASSY

3B4-24610-10-00

Unavailable

9

PIPE 2

3B4-24312-00-00

Unavailable

10

CLIP

90467-090A2-00

$4.41

11

PIPE JOINT ASSY

3B4-24380-11-00

$44.99

12

BAND 1

3B4-24398-00-00

Unavailable

13

PIPE 3

3B4-24313-00-00

Unavailable

14

CLIP

90467-090A2-00

$4.41

15

GROMMET (4V1)

90480-18290-00

$8.49

16

COLLAR (36R)

90387-066J1-00

Unavailable

17

BOLT, FLANGE

95817-06030-00

Unavailable

18

GROMMET(38W)

90480-01400-00

Unavailable

19

COLLAR

90387-07021-00

Unavailable

20

BOLT, FLANGE

95817-06030-00

Unavailable

21

COVER, SIDE 1

3B4-24129-00-00

Unavailable

22

BOLT

90109-06172-00

Unavailable

23

DAMPER, PLATE 2

1HP-F414J-00-00

Unavailable

24

DAMPER, PLATE 3

1HP-F414K-00-00

Unavailable

25

COVER, FILLER COMP.

3B4-2414F-00-00

Unavailable

26

DAMPER, LOCATING 1

3B4-24181-00-00

Unavailable

27

PROTECTOR, FUEL TANK

3B4-24141-01-00

Unavailable

28

INSULATOR, FUEL TANK 2

1HP-F416G-00-00

Unavailable

29

DAMPER, LOCATING 2

3B4-24182-00-00

Unavailable
