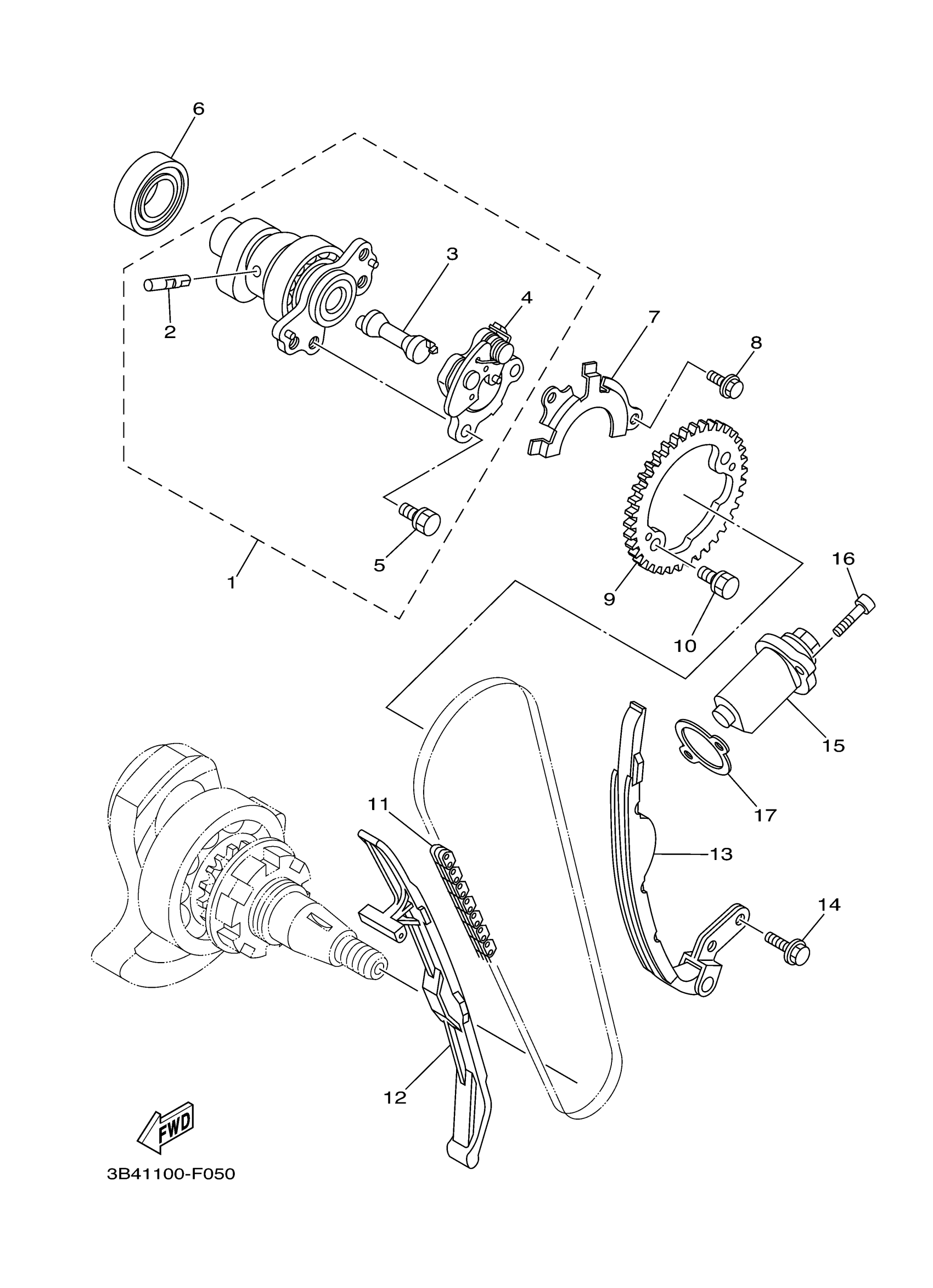

Yamaha YFM7FGPZL (GRIZZLY 700 FI EPS 4WD) 43PG0 2010 CAMSHAFT CHAIN Diagram

Description

Price

CAMSHAFT ASSY 1

3B4-12170-01-00

$370.99

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$22.99

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$61.99

DECOMPRESSION ASSY

1S3-12280-01-00

$106.99

BOLT, FLANGE

90105-07004-00

$5.60

BEARING

93306-07209-00

$44.99

PLATE

5VK-1111F-00-00

$15.49

BOLT, FLANGE

95022-06012-00

$3.29

SPROCKET, CAM CHAIN

1S3-12176-00-00

$74.99

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-57126-00

$38.99

GUIDE, STOPPER 1

3B4-12231-01-00

$31.99

GUIDE, STOPPER 2

3B4-12241-01-00

$53.99

BOLT, FLANGE

95022-06020-00

$3.62

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

$141.99

BOLT,SOCKET

91317-06025-00

Unavailable

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
