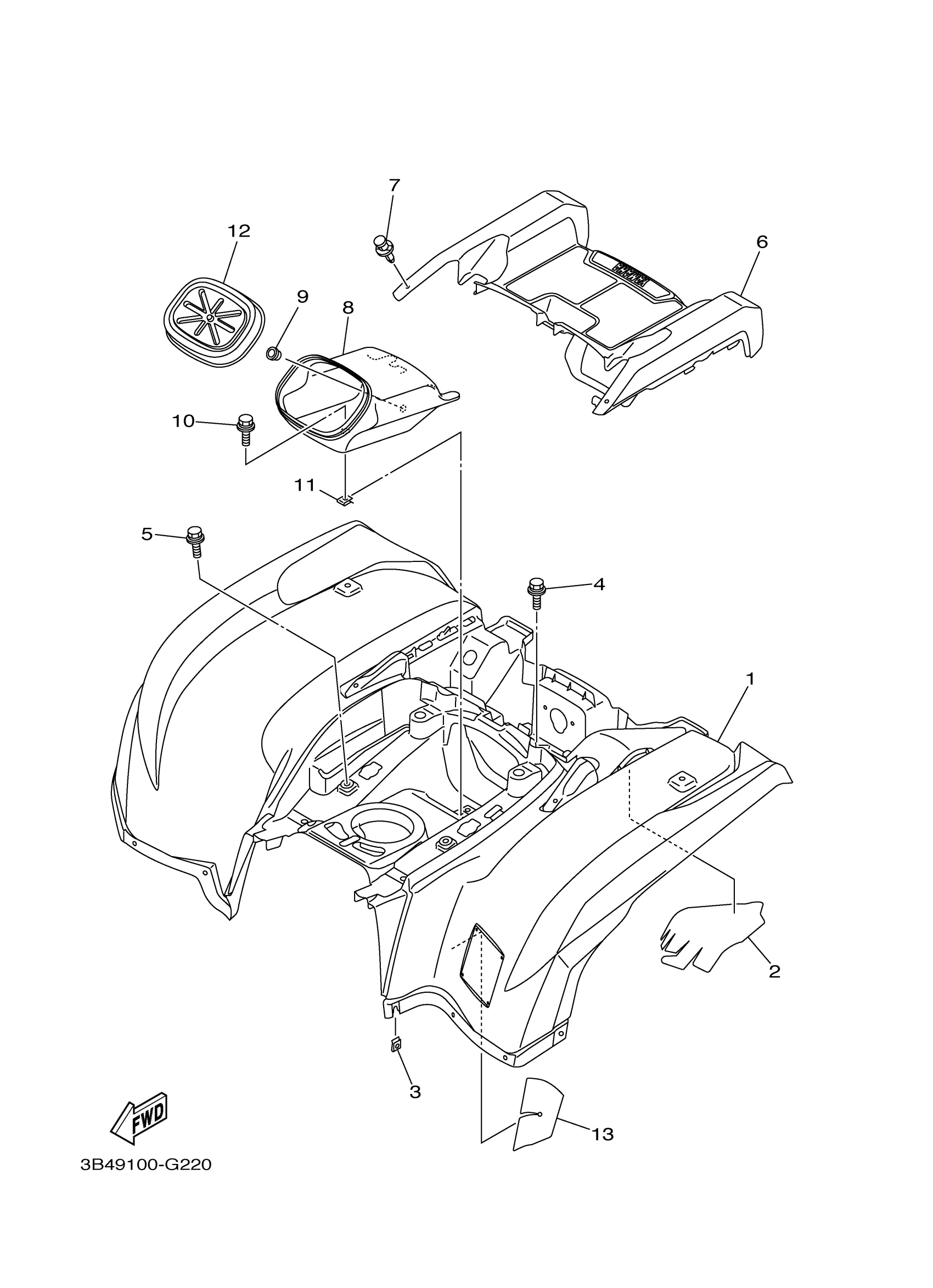

Yamaha YFM7FGPYL (GRIZZLY 700 FI EPS 4WD) 43P10 2009 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP. (PASTEL DEEP GREEN)
3B4-W2161-01-00
Unavailable
1
REAR FENDER COMP. (DARK PURPLISH BLUE SOLID N)
3B4-W2161-21-00
Unavailable
1
REAR FENDER COMP. (BLACK METALLIC J)
3B4-W2161-40-00
Unavailable
2
PROTECTOR
3B4-21652-01-00
Unavailable
3
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
BOX
1HP-F160E-00-00
Unavailable
11
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
SEAL
3B4-21669-00-00
Unavailable
