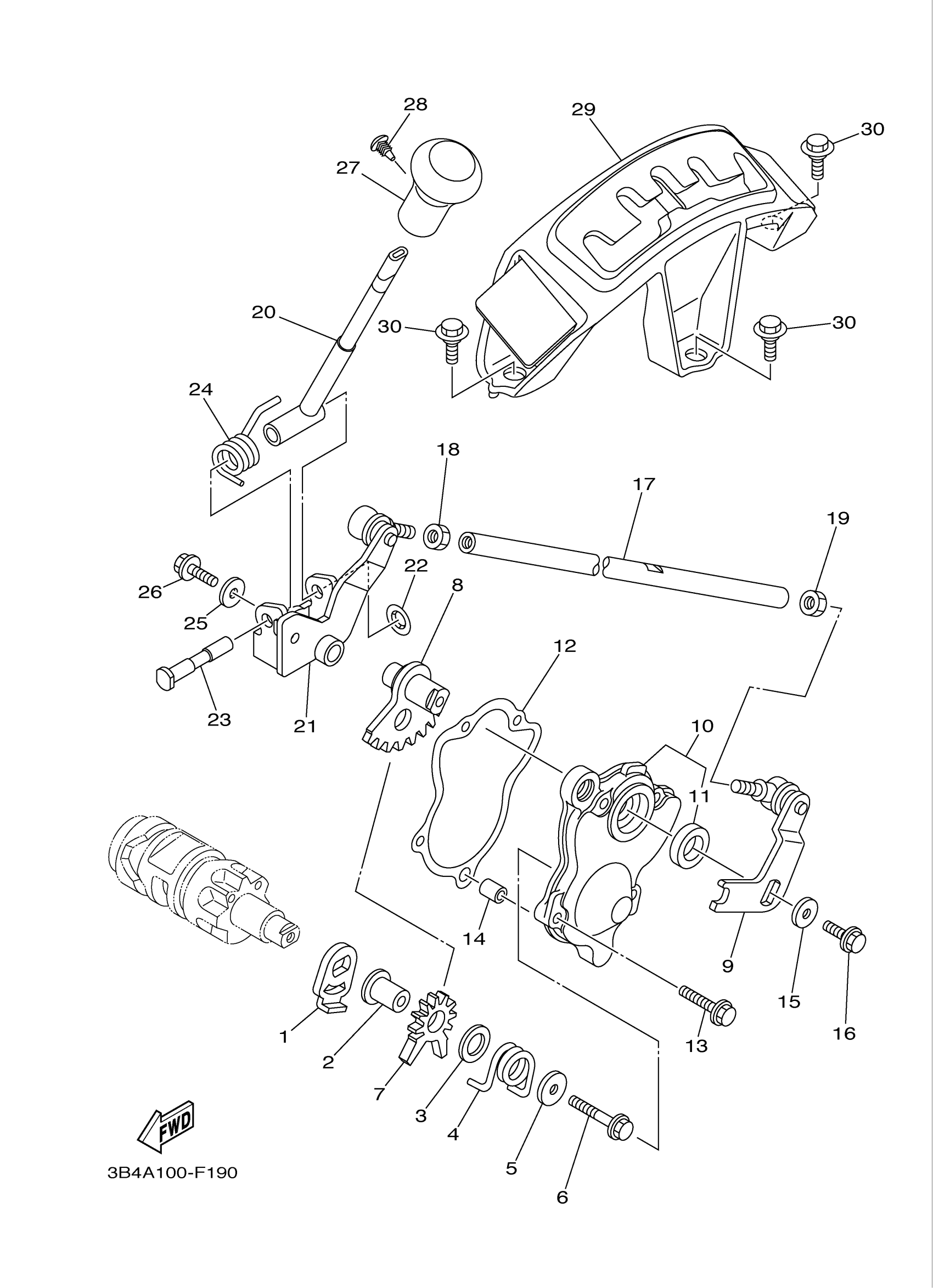

Yamaha YFM7FGPXR (GRIZZLY 700 POWER STEERING) 3B491 2008 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$22.99

2

COLLAR

90387-0613B-00

$9.49

3

WASHER, PLATE

90201-13013-00

$8.49

4

SPRING, TORSION(1YW)

90508-35764-00

$5.60

5

WASHER, PLATE

90201-06036-00

$8.49

6

95812-06035

95812-06035-00

$4.94

7

LEVER

5KM-18191-00-00

$24.99

8

SHIFT SHAFT COMP.

3B4-18103-11-00

$61.99

9

SHIFT GUIDE COMP.

3B4-18104-20-00

Unavailable

10

SHIFTER BRKT. ASSY

3B4-18380-00-00

Unavailable

11

OIL SEAL (3X3)

93102-15212-00

$9.49

12

GASKET

3B4-18146-00-00

$6.99

13

BOLT, FLANGE

95022-06020-00

$3.62

14

PIN, DOWEL

99530-08012-00

Unavailable

15

WASHER, PLATE

90201-06036-00

$8.49

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

ROD, SHIFT

3B4-18115-00-00

Unavailable

18

NUT(1KT)

90170-08358-00

Unavailable

19

. NUT

95380-08700-00

Unavailable

20

LEVER COMP. 1

3B4-18190-01-00

Unavailable

21

ARM, SHIFT 2

3B4-18169-10-00

Unavailable

22

NUT, SPRING

90183-080A1-00

Unavailable

23

SHAFT, SHIFT

3B4-18125-00-00

Unavailable

24

SPRING, RETURN

3B4-18196-01-00

Unavailable

25

WASHER, PLATE

90201-06036-00

$8.49

26

BOLT, FLANGE

95817-06016-00

Unavailable

27

KNOB, SHIFT LEVER

3B4-18174-01-00

Unavailable

28

RIVET(81E)

90269-05055-00

Unavailable

29

SHIFT GUIDE ASSY

3B4-18160-00-00

Unavailable

30

BOLT

90109-06172-00

Unavailable
