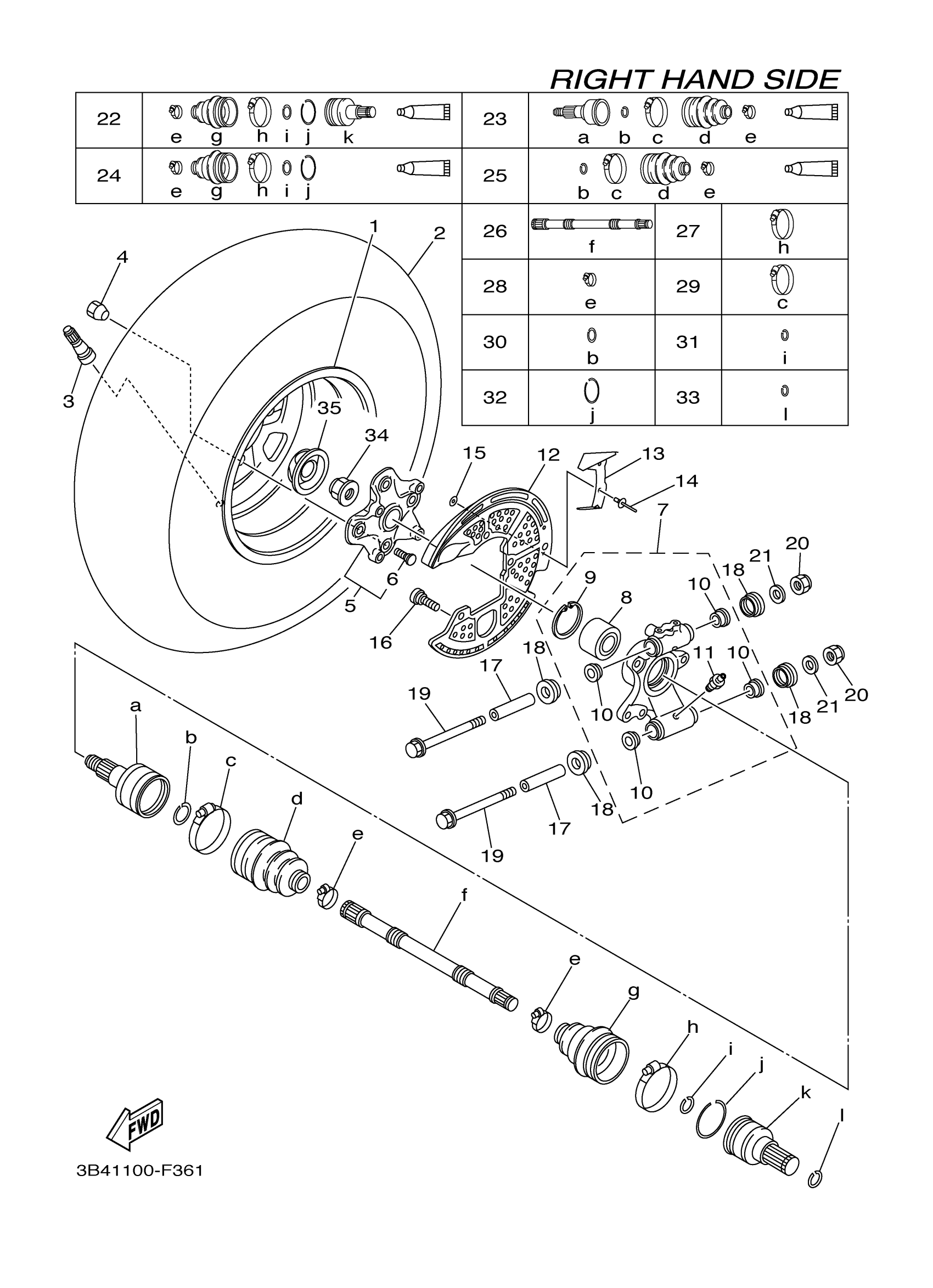

Yamaha YFM7FGPXR (GRIZZLY 700 POWER STEERING) 3B491 2008 REAR WHEEL 2 Diagram

REAR WHEEL COMP.

2BG-F5390-00-00

Unavailable

AT25X10.00-12 MU20

94110-12814-00

$237.99

VALVE, RIM(2GH)

93900-00030-00

$16.99

NUT

90179-10020-00

$5.60

HUB ASSY 2

B16-F510D-03-00

$47.99

BOLT, SERRATION

90114-10014-00

$7.49

REAR KNUCKLE ASSY.,2

3B4-2532F-00-00

$449.99

BEARING

93305-00602-00

$101.99

CIRCLIP

99009-55500-00

$9.49

BUSH, SOLID(2NL)

90381-17067-00

$11.49

NIPPLE, GREASE

93700-06M03-00

Unavailable

RING, WHEEL 2 (RIGHT)

3B4-2515A-00-00

$14.49

PLATE 2

3B4-2539G-00-00

$24.99

RIVET, BLIND(8CH)

90267-47187-00

$2.34

WASHER, PLATE

90201-04027-00

$3.02

SCREW, BINDING (31K)

90154-06014-00

Unavailable

SPACER

5KM-23448-00-00

Unavailable

COVER, THRUST 1

3JN-23517-00-00

Unavailable

BOLT, FLANGE

90105-10185-00

Unavailable

NUT, SELF-LOCKING

90185-10012-00

Unavailable

WASHER, PLATE

90201-10035-00

Unavailable

DOUBLE OFF SET JOINT

3B4-2530V-00-00

Unavailable

BALL JOINT SET

3B4-2510F-00-00

Unavailable

BOOT SET(DOUBLE OFFSET JOINT)

3B4-2510H-00-00

Unavailable

BOOT SET (BALL JOINT)

3B4-2510G-00-00

Unavailable

SHAFT

3B4-2518E-10-00

Unavailable

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

BOOT BAND (BALL JOINT)

3B4-2511G-00-00

Unavailable

SNAP RING

3B4-2512J-00-00

Unavailable

CIRCLIP

3B4-2512H-00-00

Unavailable

CIRCLIP

3B4-25182-00-00

Unavailable

CLIP, SPRING

3B4-2536E-00-00

Unavailable

NUT

90179-20016-00

Unavailable

CAP, WHEEL

1HP-F512A-00-00

Unavailable
