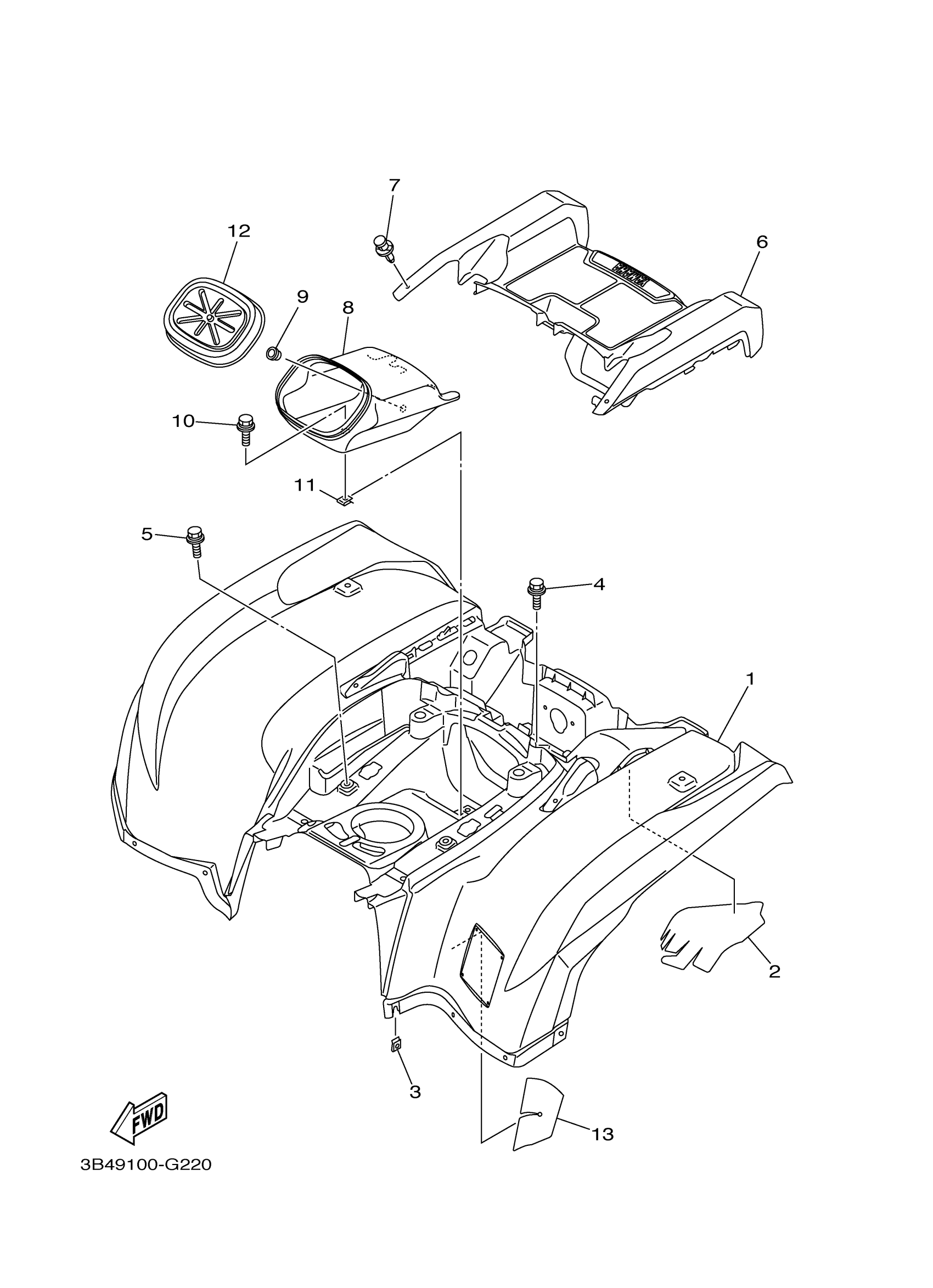

Yamaha YFM7FGPXR (GRIZZLY 700 POWER STEERING) 3B491 2008 REAR FENDER Diagram
#
Description
Price
1
REAR FENDER COMP. (PASTEL DEEP GREEN)
3B4-W2161-00-00
Unavailable
1
REAR FENDER COMP. (ROMANTIQUE ROUGE)
3B4-W2161-10-00
Unavailable
1
REAR FENDER COMP. (DARK PURPLISH BLUE SOLID N)
3B4-W2161-20-00
Unavailable
2
PROTECTOR
3B4-21652-01-00
Unavailable
3
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
BOX
1HP-F160E-00-00
Unavailable
11
NUT, SPRING(4ES)
90183-06069-00
Unavailable
13
SEAL
3B4-21669-00-00
Unavailable
