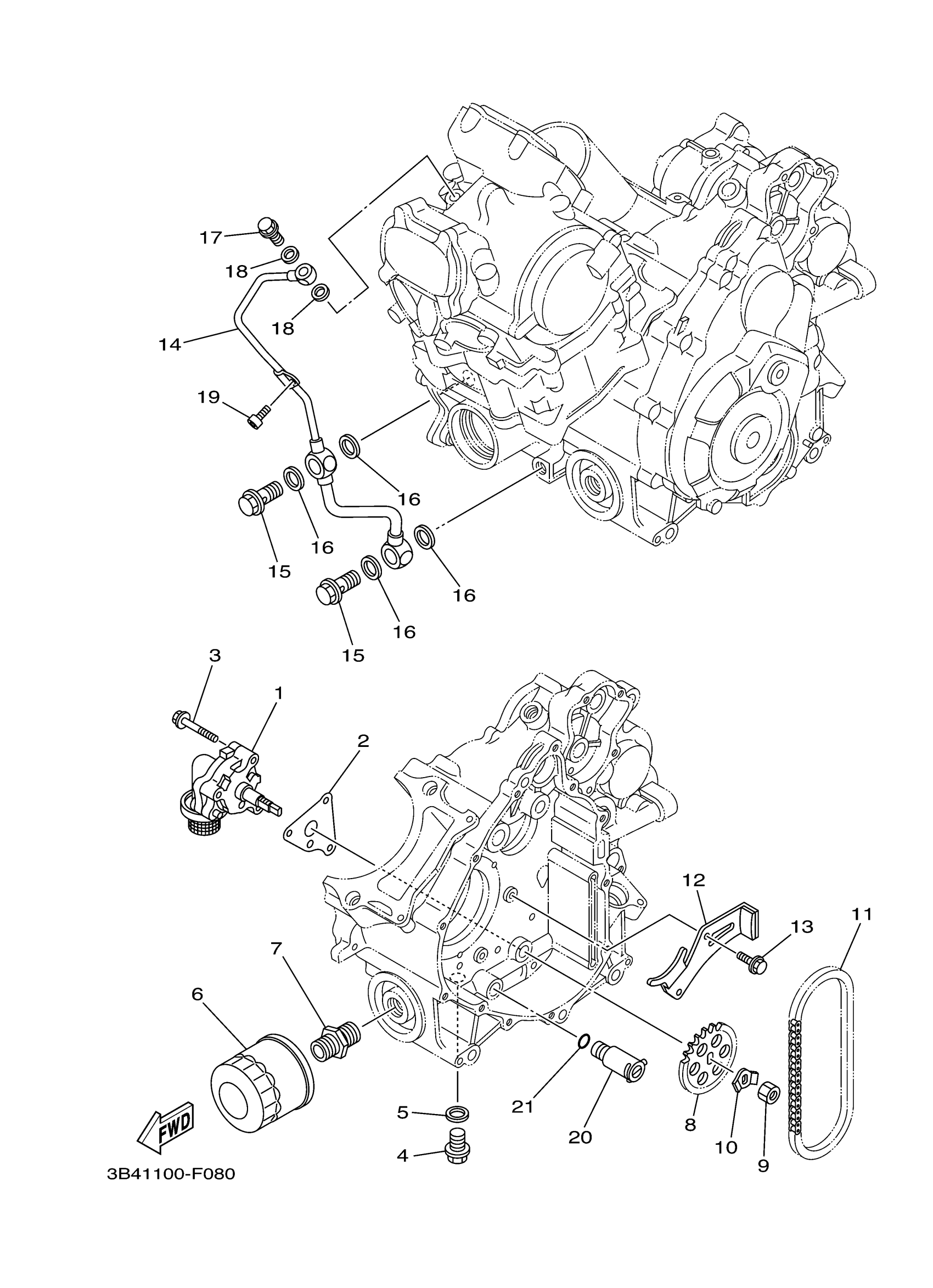

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

3B4-13300-00-00

$191.99

2

GASKET, PUMP COVER

3B4-13329-00-00

$6.99

3

BOLT, FLANGE

95022-06040-00

$3.45

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

5

GASKET

214-11198-01-00

$3.17

6

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

7

BOLT, UNION

90401-20007-00

Unavailable

8

SPROCKET, DRIVEN

3B4-13355-00-00

$37.99

9

NUT(624)

95380-10600-00

$3.50

10

WASHER, LOCK

90215-10008-00

$3.35

11

CHAIN

94580-31074-00

$25.99

12

GUIDE, STOPPER 3

3B4-12221-01-00

$15.49

13

BOLT, FLANGE

95022-06020-00

$3.62

14

PIPE, DELIVERY 2

3B4-13171-00-00

$158.99

15

BOLT, UNION(1YW)

90401-14118-00

Unavailable

16

GASKET 256131670000

90430-14043-00

Unavailable

17

BOLT, UNION

90401-10015-00

Unavailable

18

GASKET

90430-10188-00

Unavailable

19

BOLT,SOCKET

91317-06012-00

Unavailable

20

RELIEF VALVE ASSY

25G-13490-00-00

Unavailable

21

O-RING (611)

93210-10096-00

Unavailable
