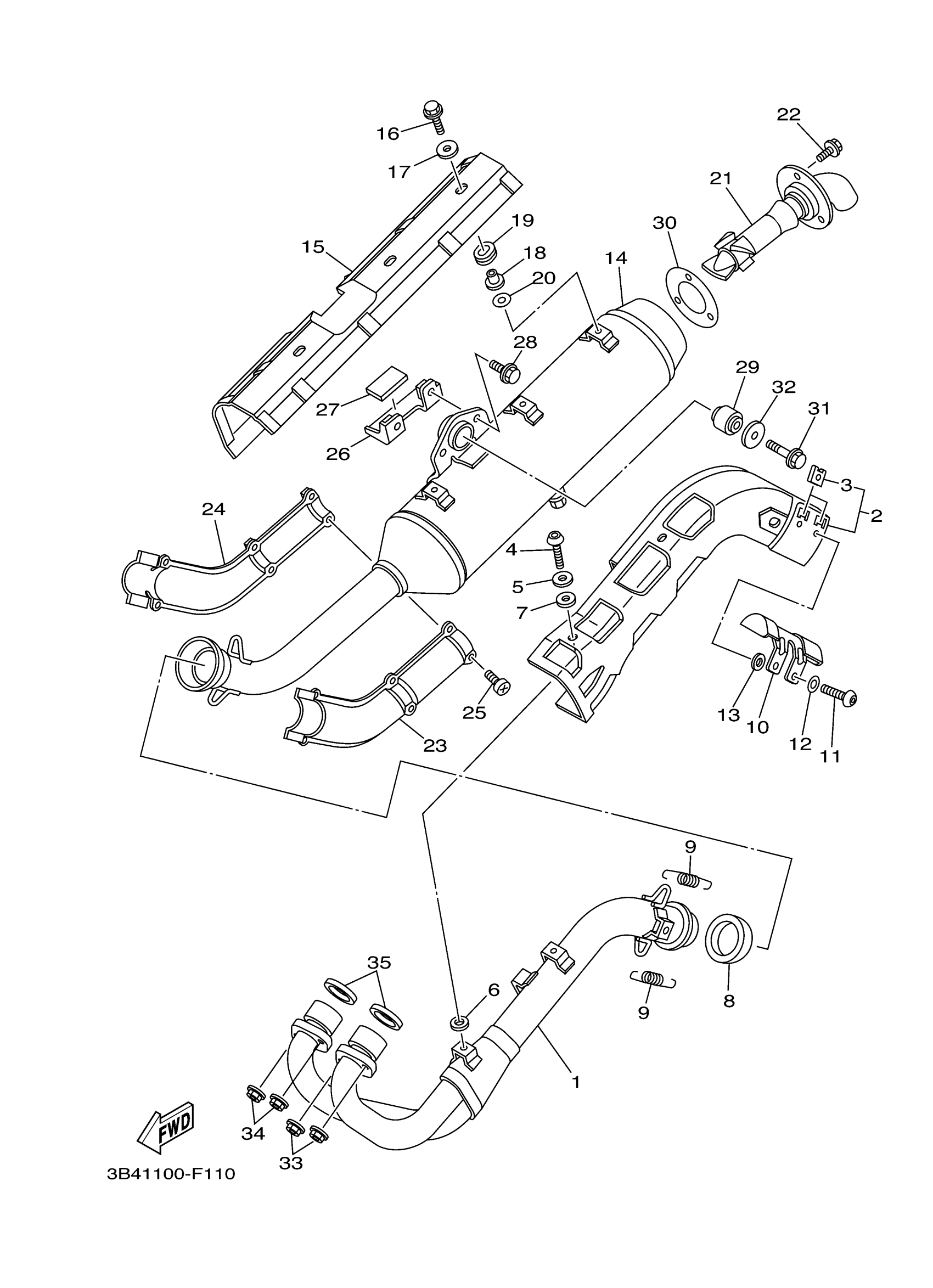

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

99999-03990-00

Unavailable

2

COVER, EXHAUST

99999-03782-00

Unavailable

3

NUT, SPRING

90183-060A2-00

$9.49

4

BOLT, BUTTON HEAD

92012-06016-00

$8.49

5

WASHER, PLATE

90201-06036-00

$8.49

6

WASHER, PLATE (SCORPIO-Z)

90201-05022-00

$30.99

7

WASHER, PLATE

90201-05019-00

$4.41

8

GASKET, MUFFLER

3B4-14714-00-00

$29.99

9

SPRING, TENSION

90506-26010-00

$11.49

10

PROTECTOR, SILENCE

1HP-E4758-00-00

Unavailable

11

BOLT, BUTTON HEAD

92012-06010-00

$4.30

12

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

13

WASHER, PLATE

90201-05015-00

$8.49

14

MUFFLER COMP. 1

3B4-W1471-00-00

Unavailable

15

PROTECTOR, MUFFLER 1

3B4-14718-00-00

Unavailable

16

BOLT, FLANGE

95817-06016-00

Unavailable

17

WASHER, PLATE

90201-06036-00

$8.49

18

COLLAR

90387-06140-00

Unavailable

19

GROMMET

90480-01021-00

Unavailable

20

WASHER, PLATE

90201-05037-00

Unavailable

21

PIPE, OUTLET

1HP-E4752-00-00

Unavailable

22

BOLT, FLANGE

95022-06008-00

Unavailable

23

PROTECTOR ASSY 1

1HP-E471C-00-00

Unavailable

24

PROTECTOR ASSY., 2

1HP-E472C-00-00

Unavailable

25

SCREW, PAN HEAD

98580-06016-00

Unavailable

26

STOPPER 1

1HP-E477U-00-00

Unavailable

27

MAT 1

1HP-E4733-00-00

Unavailable

28

BOLT, FLANGE

95817-08012-00

Unavailable

29

DAMPER, FOOTREST

3B4-27414-00-00

Unavailable

30

GASKET, SILENCER

1HP-E4755-00-00

Unavailable

31

BOLT, FLANGE

95817-08040-00

Unavailable

32

WASHER, PLATE (4R4)

90201-080E4-00

Unavailable

33

NUT

90179-08029-00

Unavailable

34

NUT,FLANGE(J10)

95702-08500-00

Unavailable

35

GASKET, EXHAUST PIPE

3YF-14613-01-00

Unavailable
