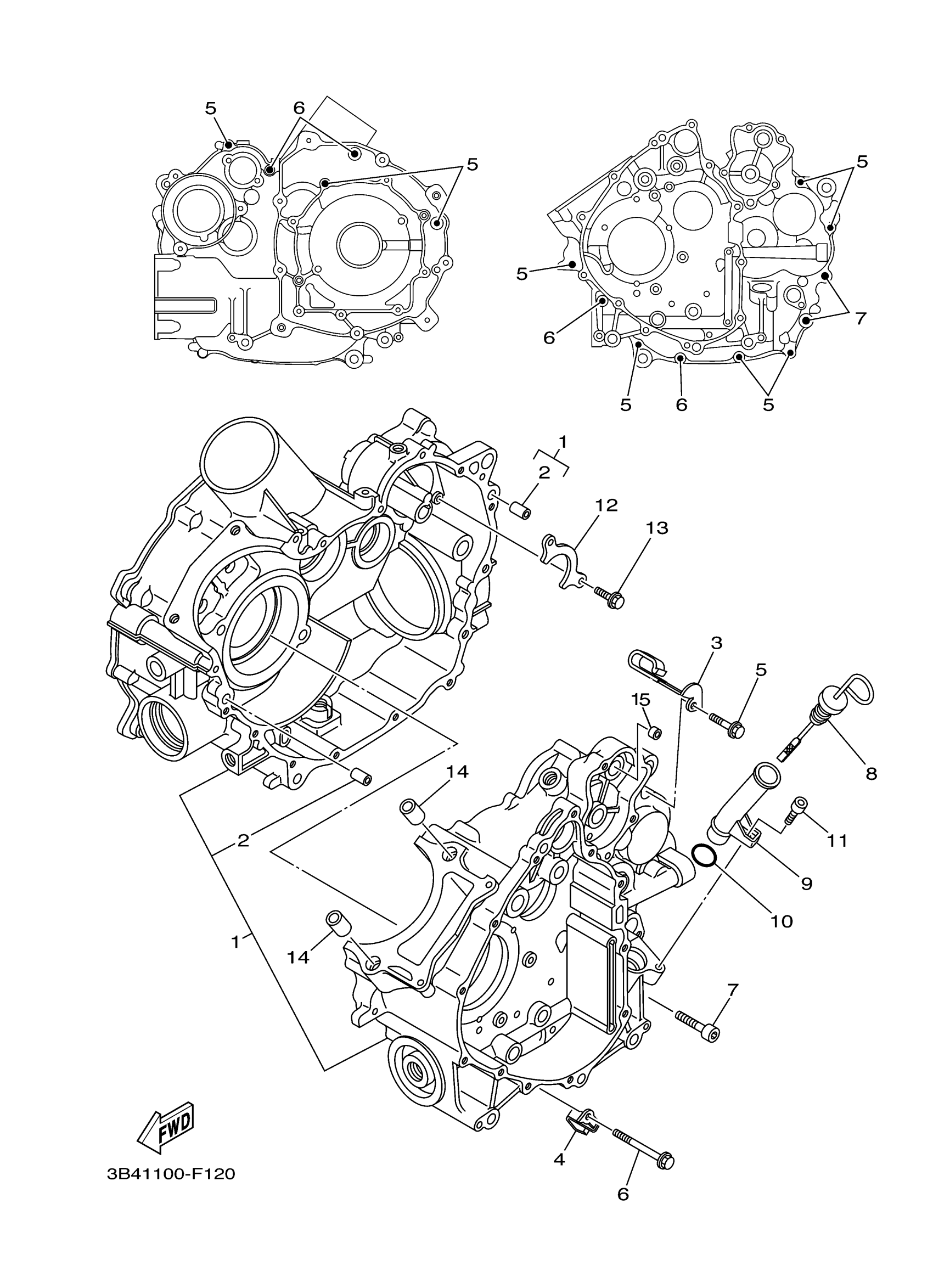

Yamaha YFM7FGPW (GRIZZLY 700) 3B41 2007 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

99999-03813-00

Unavailable

2

PIN, DOWEL(2VG)

99530-10116-00

$4.25

3

CLAMP

90462-10041-00

Unavailable

4

CLAMP

90462-08049-00

$3.28

5

BOLT, FLANGE

95022-06030-00

$3.72

6

BOLT, FLANGE

95022-06060-00

$8.49

7

BOLT,SOCKET

91314-08040-00

$8.49

8

PLUG, OIL LEVEL

3B4-15362-01-00

$25.99

9

PIPE, OIL

3B4-15112-02-00

$56.99

10

O-RING (26H)

93210-21631-00

$7.49

11

BOLT,SOCKET

91317-06012-00

$8.49

12

PLATE, BEARING COVER

3B4-15388-00-00

$6.99

13

BOLT, FLANGE

95022-06020-00

$3.62

14

PIN, DOWEL

99530-14016-00

$3.80

15

SPACER 1

3B4-18581-00

Unavailable
