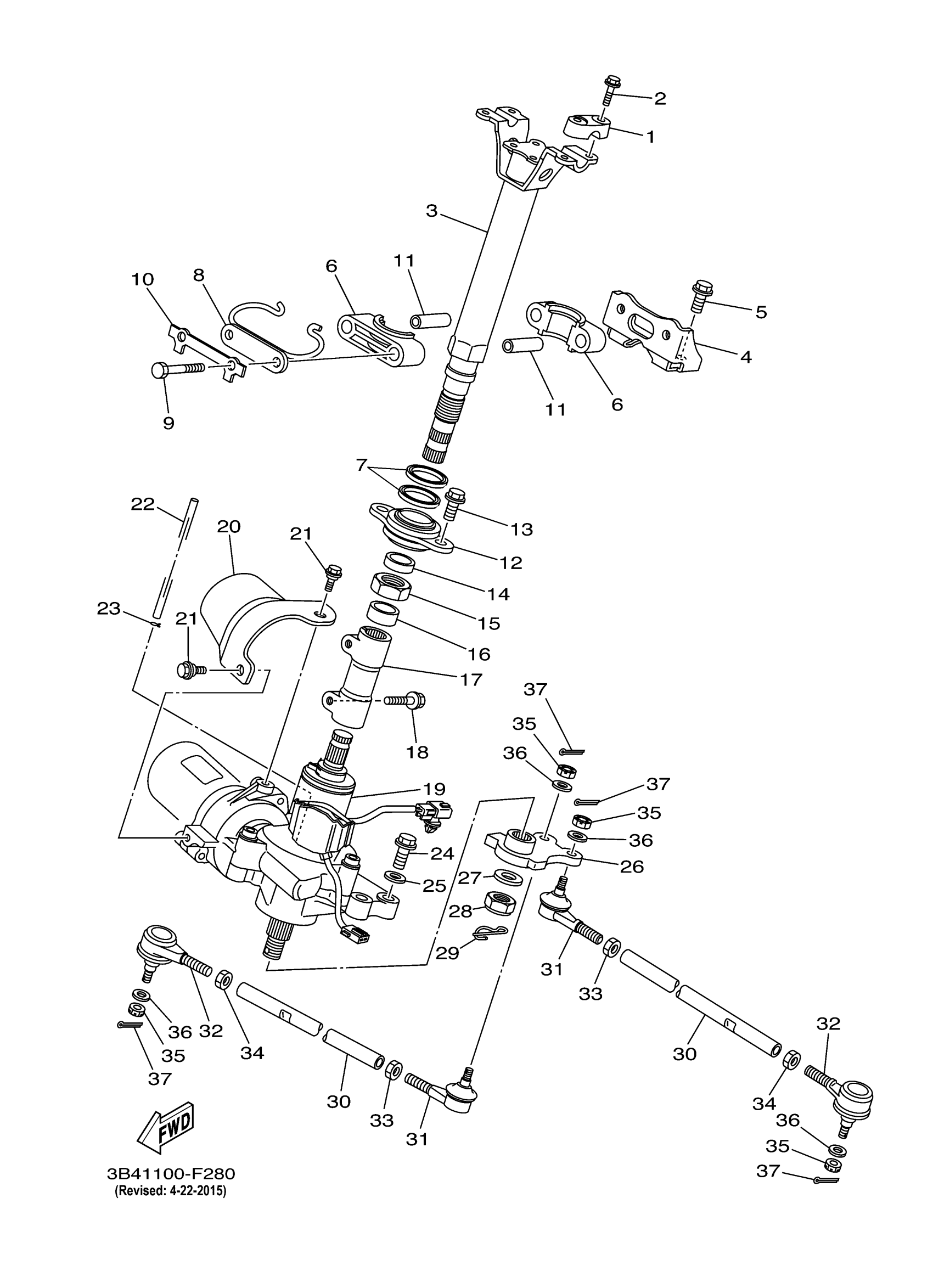

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

2

BOLT, FLANGE(6TA)

95817-08030-00

$8.49

3

COLUMN, STEERING 2

1HP-F3813-00-00

$124.99

4

SUPT., STRG. COLUMN

3B4-22517-00-00

Unavailable

5

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

6

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

7

OIL SEAL(1UY)

93112-31011-00

$9.49

8

BRACKET, STEERING

1HP-F3868-00-00

$9.99

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

BEARING, STEERING LOWER

3B4-23875-10-00

$102.99

13

BOLT, FLANGE(3HP)

95817-10016-00

$8.49

14

COLLAR

90387-22014-00

Unavailable

15

NUT, SELF-LOCKING

90185-22008-00

Unavailable

16

COLLAR (1T3)

90387-22591-00

Unavailable

17

JOINT

3B4-2381B-01-00

Unavailable

18

BOLT, WITH WASHER

90119-08109-00

Unavailable

19

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

Unavailable

20

COVER, MOTOR

3B4-238B6-00-00

Unavailable

21

BOLT(3KJ)

90109-063F1-00

Unavailable

22

HOSE (L1050)

90445-072G8-00

Unavailable

23

CLIP (1J7)

90467-07029-00

Unavailable

24

BOLT, FLANGE

95812-08030-00

Unavailable

25

WASHER (853)

90201-08326-00

Unavailable

26

ARM, PITMAN

1HP-F3816-00-00

Unavailable

27

WASHER, PLATE

90201-16021-00

Unavailable

28

NUT U

95612-16100-00

Unavailable

29

CLIP

90468-18195-00

Unavailable

30

ROD, TIE

5KM-23831-00-00

Unavailable

31

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

32

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

33

NUT (3WP1)

95317-10700-00

Unavailable

34

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

35

NUT, CASTLE

90171-10001-00

Unavailable

36

WASHER (25G)

90209-10229-00

Unavailable

37

PIN, COTTER

91490-20025-00

Unavailable
