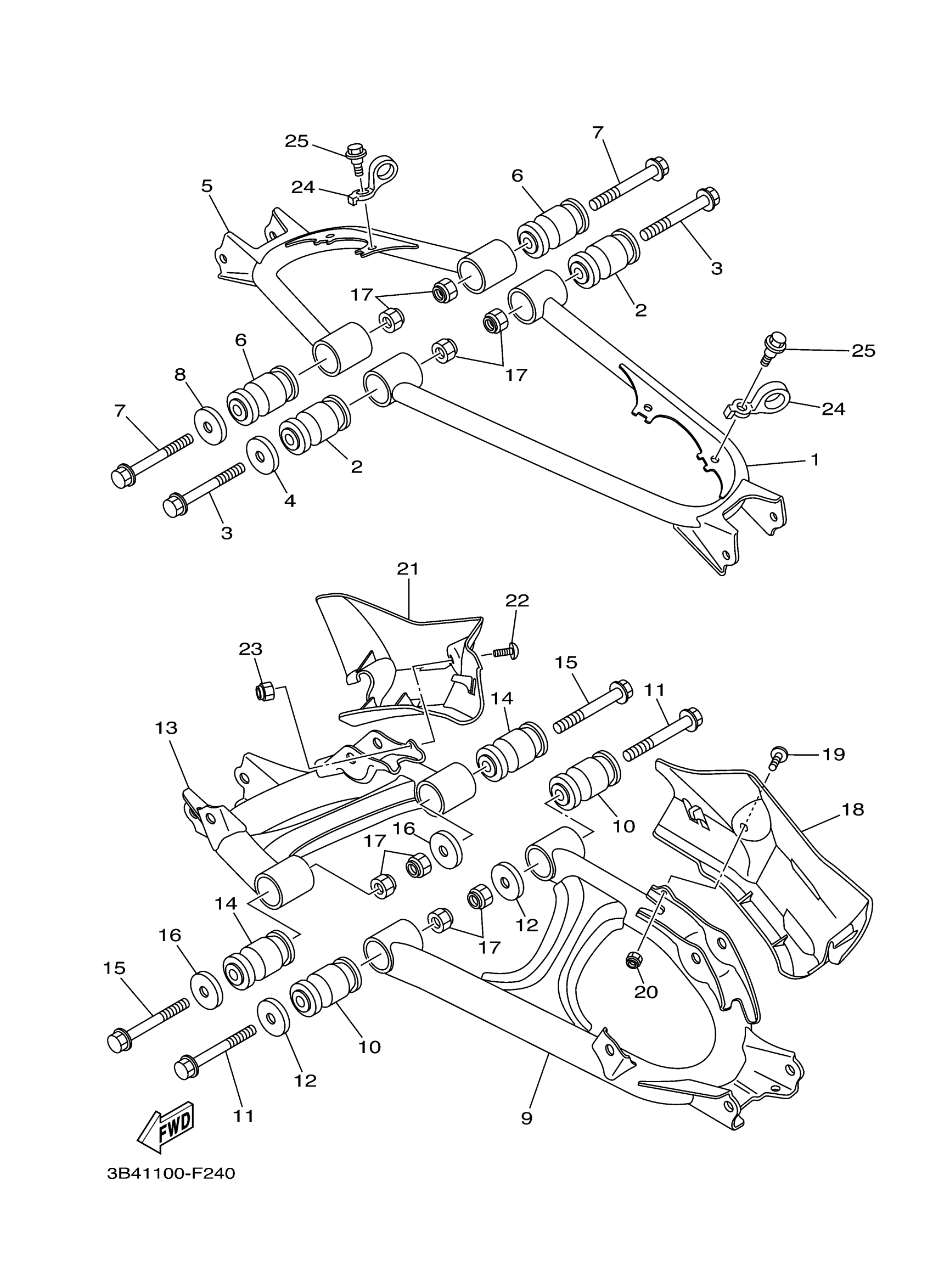

Yamaha YFM7FGPSEW (GRIZZLY 700 SPECIAL EDITION-SILVER) 3B4A 2007 REAR ARM Diagram

#

Description
Price

1

ARM,REAR 1

1HP-F2171-01-00

$40.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BOLT, FLANGE

90105-10222-00

$5.60

4

WASHER

5KM-22149-00-00

$7.99

5

ARM, REAR 2

1HP-F2172-01-00

$41.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BOLT, FLANGE

90105-10222-00

$5.60

8

WASHER

5KM-22149-00-00

$7.99

9

ARM 1

1HP-F217M-01-00

$71.99

10

BUSH

1HP-F3526-00-00

$22.99

11

BOLT, FLANGE

90105-10222-00

$5.60

12

WASHER

5KM-22149-00-00

$7.99

13

ARM 2

1HP-F217N-01-00

Unavailable

14

BUSH

1HP-F3526-00-00

$22.99

15

BOLT, FLANGE

90105-10222-00

$5.60

16

WASHER

5KM-22149-00-00

$7.99

17

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable

18

COVER, THRUST 1

3B4-22128-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable

21

COVER, THRUST 2

3B4-22129-00-00

Unavailable

22

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

23

NUT, NYLON

95707-06300-00

Unavailable

24

HOLDER, BRAKE HOSE 1

3B4-25875-00-00

Unavailable

25

BOLT(3KJ)

90109-063F1-00

Unavailable
