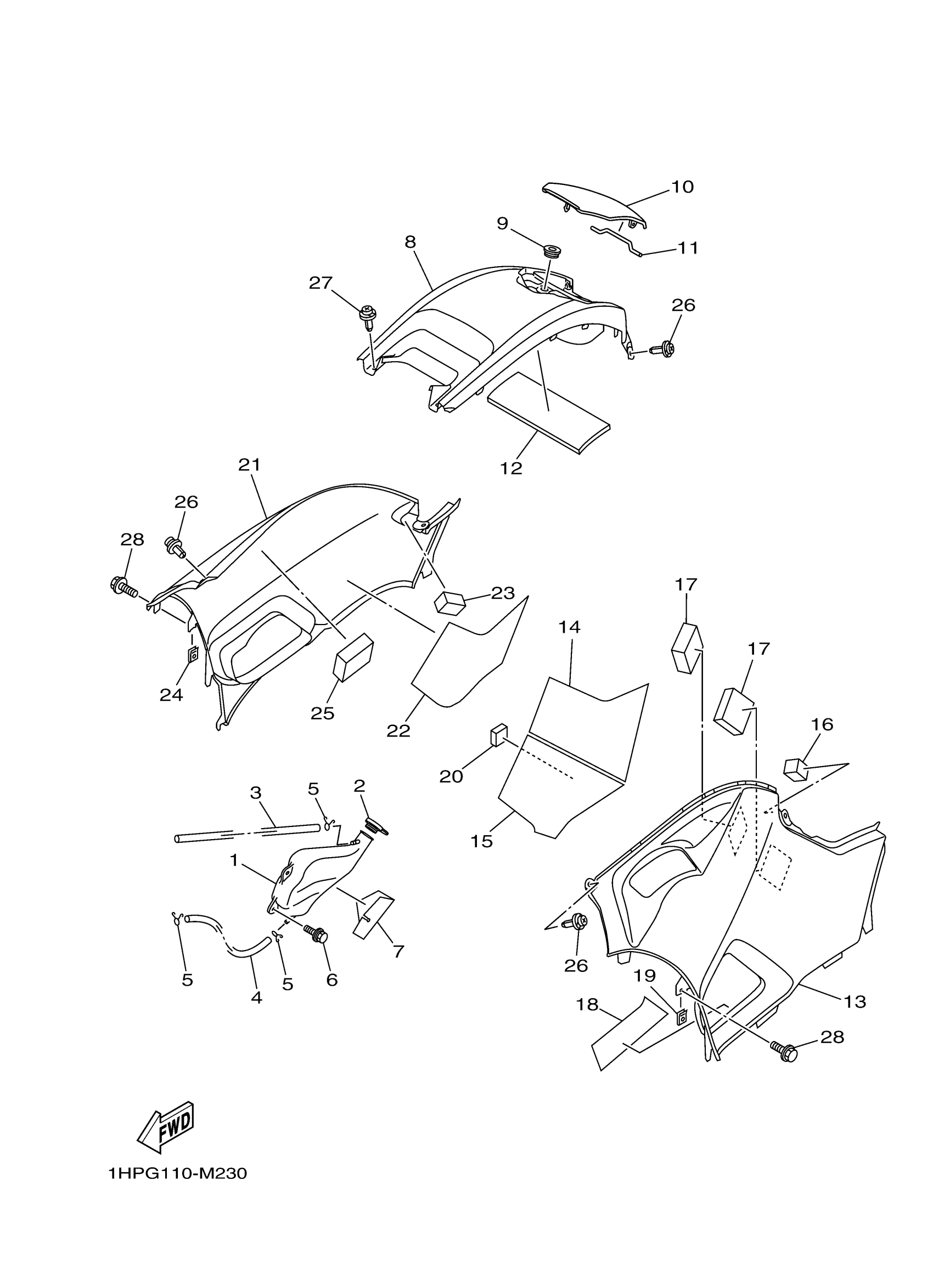

Yamaha YFM7FGPSED (GRIZZLY 700 EPS 4WD SPECIAL EDITION) 1HPT 2013 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

1HP-F1871-01-00

Unavailable

2

CAP

1S3-21875-00-00

$8.50

3

HOSE

90445-08841-00

$2.30

4

HOSE (L420)

90445-08840-00

$1.79

5

CLIP 101235600

90467-08003-00

$5.88

6

BOLT, WITH WASHER

90119-06152-00

$2.56

7

PLATE

1HP-F176E-01-00

$4.29

8

COVER, TOP

1HP-F171A-00-00

$28.15

9

GROMMET(4DN)

90480-01558-00

$3.68

10

LID, COVER

1HP-F177B-00-00

$9.68

11

PIN, HINGE

3B4-2177K-00-00

$9.31

12

DAMPER

3B4-21747-01-00

$5.42

13

SIDE COVER COMP. 1 (LOW GLOSS BLACK)

1HP-F17E0-11-98

$97.99

14

INSULATOR, SIDE COVER

3B4-2174A-00-00

$10.63

15

SEAL 4

3B4-2173N-00-00

$11.48

16

DAMPER

3B4-21717-00-00

Unavailable

17

DAMPER

3B4-2174Y-00-00

Unavailable

18

SEAL 3

3B4-2173M-00-00

Unavailable

19

NUT, SPRING(4ES)

90183-06069-00

$5.69

20

DAMPER, LOCATING 4

3B4-2177N-01-00

Unavailable

21

SIDE COVER COMP. 2 (LOW GLOSS BLACK)

1HP-F17F0-11-98

$72.99

22

INSULATOR, SIDE CO

1HP-F174T-00-00

Unavailable

23

DAMPER

3B4-21717-00-00

Unavailable

24

NUT, SPRING(4ES)

90183-06069-00

$5.69

25

DAMPER

3B4-2174Y-00-00

Unavailable

26

RIVET

90269-07012-00

Unavailable

27

RIVET

90269-06081-00

Unavailable

28

BOLT, WITH WASHER

90119-06152-00

$2.56
