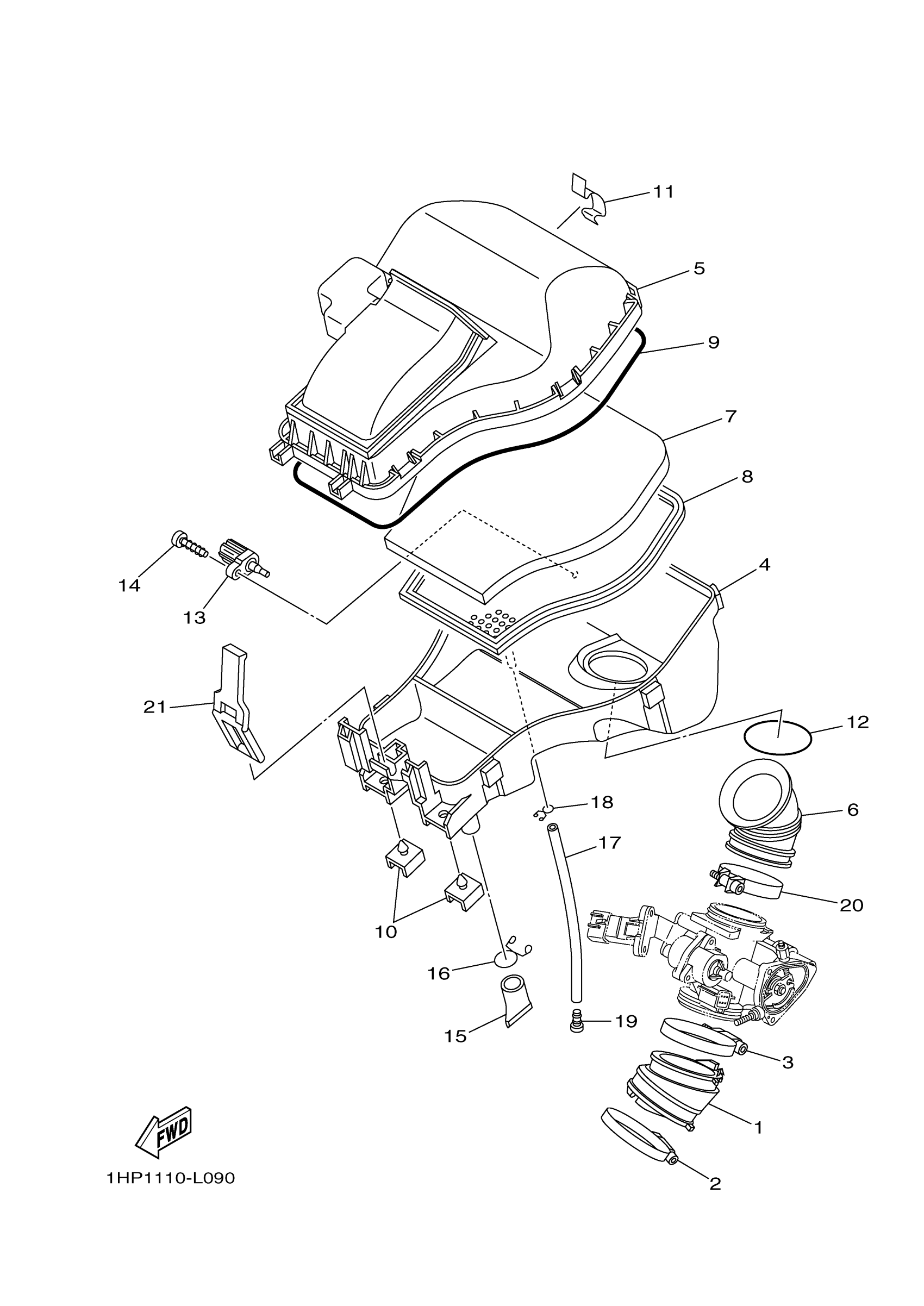

Yamaha YFM7FGPSED (GRIZZLY 700 EPS 4WD SPECIAL EDITION) 1HPT 2013 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

3B4-13586-00-00

$69.99

2

HOSE CLAMP ASSY

90450-72004-00

$18.99

3

HOSE CLAMP ASSY

90450-72004-00

$18.99

4

CASE,AIR CLEANER 1

1HP-E4411-00-00

$74.99

5

CAP ASSY, AIR CLEANER

3B4-14402-03-00

$70.99

6

JOINT, AIR CLEANER 1

3B4-14453-00-00

$38.99

7

ELEMENT, AIR CLEAN

1HP-E4451-01-00

Unavailable

8

PLATE, ELEMENT

1HP-E4472-00-00

$14.49

9

SEAL

3B4-14457-00-00

$16.49

10

DAMPER

3B4-14409-00-00

$6.99

11

CLIP, CAP FITTING

3B4-14424-00-00

$7.99

12

SEAL

1HP-E4462-00-00

$3.17

13

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

14

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

15

SEAL

59V-14457-00-00

$6.99

16

CLIP

90467-220A1-00

Unavailable

17

TUBE, FLEXIBLE VINYL (L200)

91A20-07020-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

PLUG (1HX)

90338-08174-00

Unavailable

20

HOSE CLAMP ASSY

90450-59005-00

Unavailable

21

BAND

3B4-14455-00-00

Unavailable
