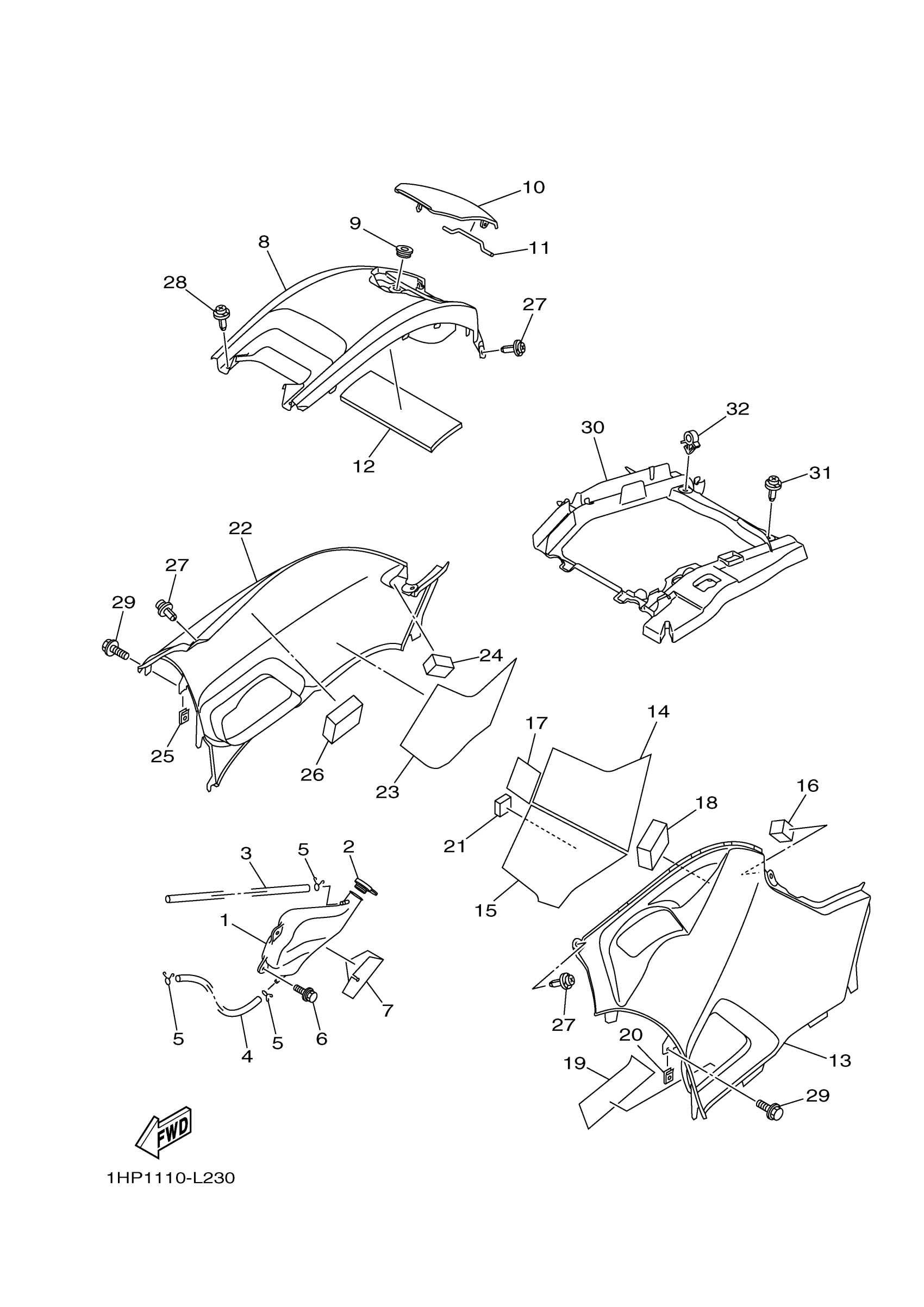

Yamaha YFM7FGPSEB (GRIZZLY 700 EPS 4WD SPECIAL EDITION) 1HP8 2012 SIDE COVER Diagram

#

Description
Price

1

TANK, RECOVERY

1HP-F1871-01-00

Unavailable

2

CAP

1S3-21875-00-00

$9.99

3

HOSE

90445-08841-00

$3.40

4

HOSE (L420)

90445-08840-00

Unavailable

5

CLIP 101235600

90467-08003-00

$10.49

6

BOLT, WITH WASHER

90119-06152-00

$7.49

7

PLATE

1HP-F176E-01-00

$4.41

8

COVER, TOP

1HP-F171A-00-00

$34.99

9

GROMMET(4DN)

90480-01558-00

$4.19

10

LID, COVER

1HP-F177B-00-00

$12.99

11

PIN, HINGE

3B4-2177K-00-00

$12.99

12

DAMPER

3B4-21747-01-00

$7.99

13

SIDE COVER COMP. 1

1HP-F17E0-11-P1

Unavailable

14

INSULATOR, SIDE COVER

3B4-2174A-00-00

$12.99

15

SEAL 4

3B4-2173N-00-00

$14.49

16

DAMPER

3B4-21717-00-00

Unavailable

17

SEAT, BATTERY

1S3-82123-00-00

Unavailable

18

DAMPER

3B4-2174Y-00-00

Unavailable

19

SEAL 3

3B4-2173M-00-00

Unavailable

20

NUT, SPRING(4ES)

90183-06069-00

Unavailable

21

DAMPER, LOCATING 4

3B4-2177N-01-00

Unavailable

22

SIDE COVER COMP. 2

1HP-F17F0-11-P1

Unavailable

23

INSULATOR, SIDE CO

1HP-F174T-00-00

Unavailable

24

DAMPER

3B4-21717-00-00

Unavailable

25

NUT, SPRING(4ES)

90183-06069-00

Unavailable

26

DAMPER

3B4-2174Y-00-00

Unavailable

27

RIVET

90269-07012-00

Unavailable

28

RIVET

90269-06081-00

Unavailable

29

BOLT, WITH WASHER

90119-06152-00

$7.49

30

DAMPER, PLATE 1

1HP-F414H-00-00

Unavailable

31

RIVET

90269-07010-00

Unavailable

32

CLAMP(3XV)

90464-15157-00

Unavailable
