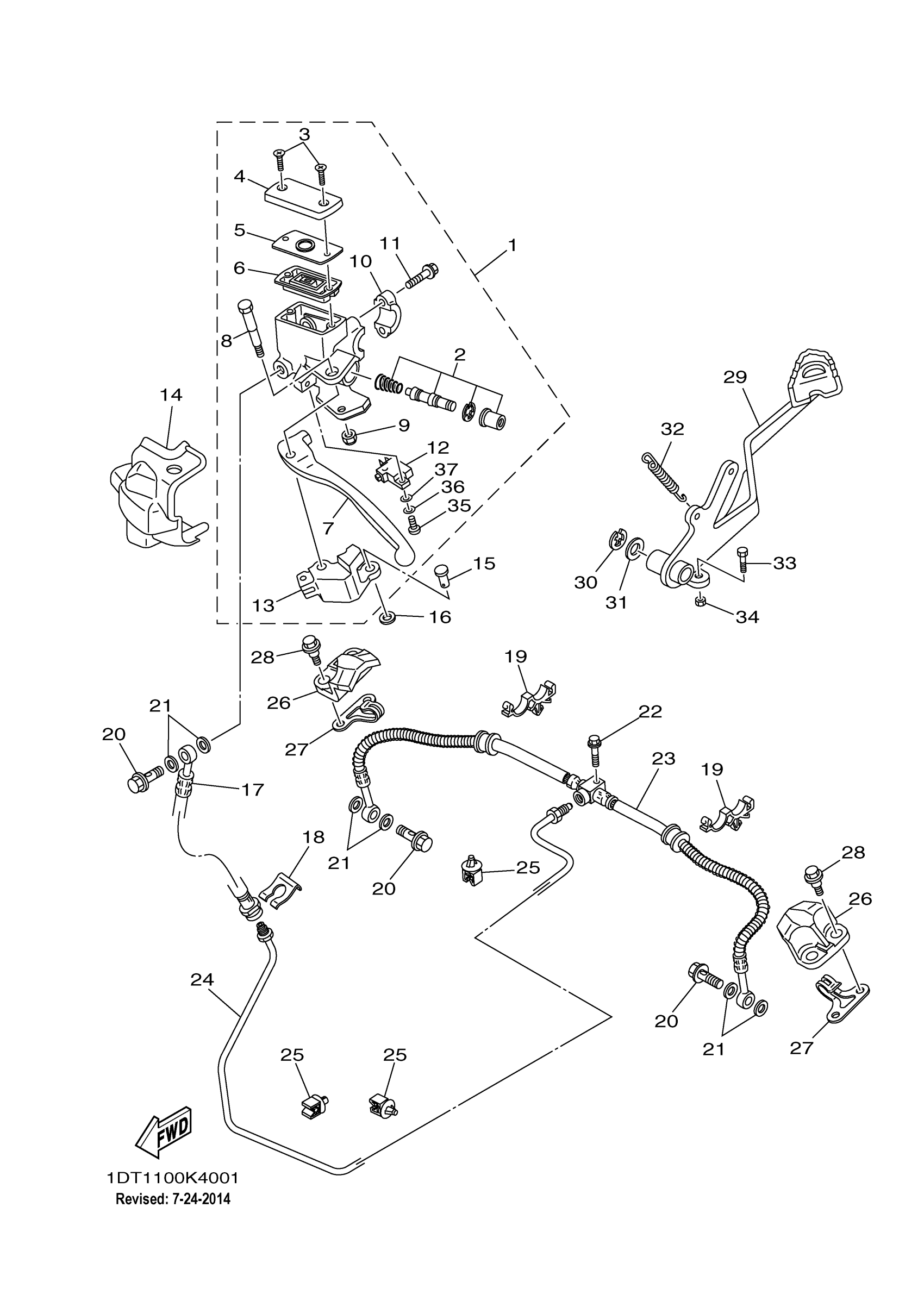

Yamaha YFM7FGPSEB (GRIZZLY 700 EPS 4WD SPECIAL EDITION) 1HP8 2012 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3B4-2583V-13-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

CAP, RESERVOIR

5YU-25852-00-00

$36.99

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$10.99

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

7

LEVER 1

3B4-83912-00-00

$57.99

8

BOLT, LEVER

3B4-2589F-20-00

Unavailable

9

NUT

90170-06024-00

$8.49

10

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

11

BOLT, FITTING

5MV-25833-00-00

$6.99

12

STOP SWITCH ASSY

1HP-82530-03-00

$31.99

13

KNOCKER

3B4-26168-10-00

Unavailable

14

COVER, HANDLE LEVER 1

3B4-26372-00-00

$7.99

15

PIN W/HOLE 307181180000

90240-08013-00

$8.49

16

.. WASHER, PLATE

92990-08600-00

Unavailable

17

HOSE, BRAKE 1

1HP-F5872-00-00

Unavailable

18

CIRCLIP

2GU-25866-00-00

Unavailable

19

CLAMP

90464-16006-00

Unavailable

20

BOLT, UNION

90401-10015-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

HOSE, BRAKE

1HP-F5874-00-00

Unavailable

24

PIPE, BRAKE 2

1HP-F5882-02-00

Unavailable

25

CLAMP 1

5KM-81677-00-00

Unavailable

26

COVER 1

3B4-25715-00-00

Unavailable

27

HOLDER, BRAKE HOSE 5

1HP-F588F-00-00

Unavailable

28

BOLT

90109-06172-00

Unavailable

29

PEDAL, BRAKE

1HP-F7211-01-00

Unavailable

30

CIRCLIP

99006-10600-00

Unavailable

31

WASHER, PLATE

90201-14023-00

Unavailable

32

SPRING, TENSION

90506-20014-00

Unavailable

33

BOLT

97012-06014-00

Unavailable

34

NUT, HEXAGON

95380-06600-00

Unavailable

35

SCREW, PAN HEAD

98511-04012-00

Unavailable

36

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

37

WASHER, PLAIN (646)

92990-04600-00

Unavailable
