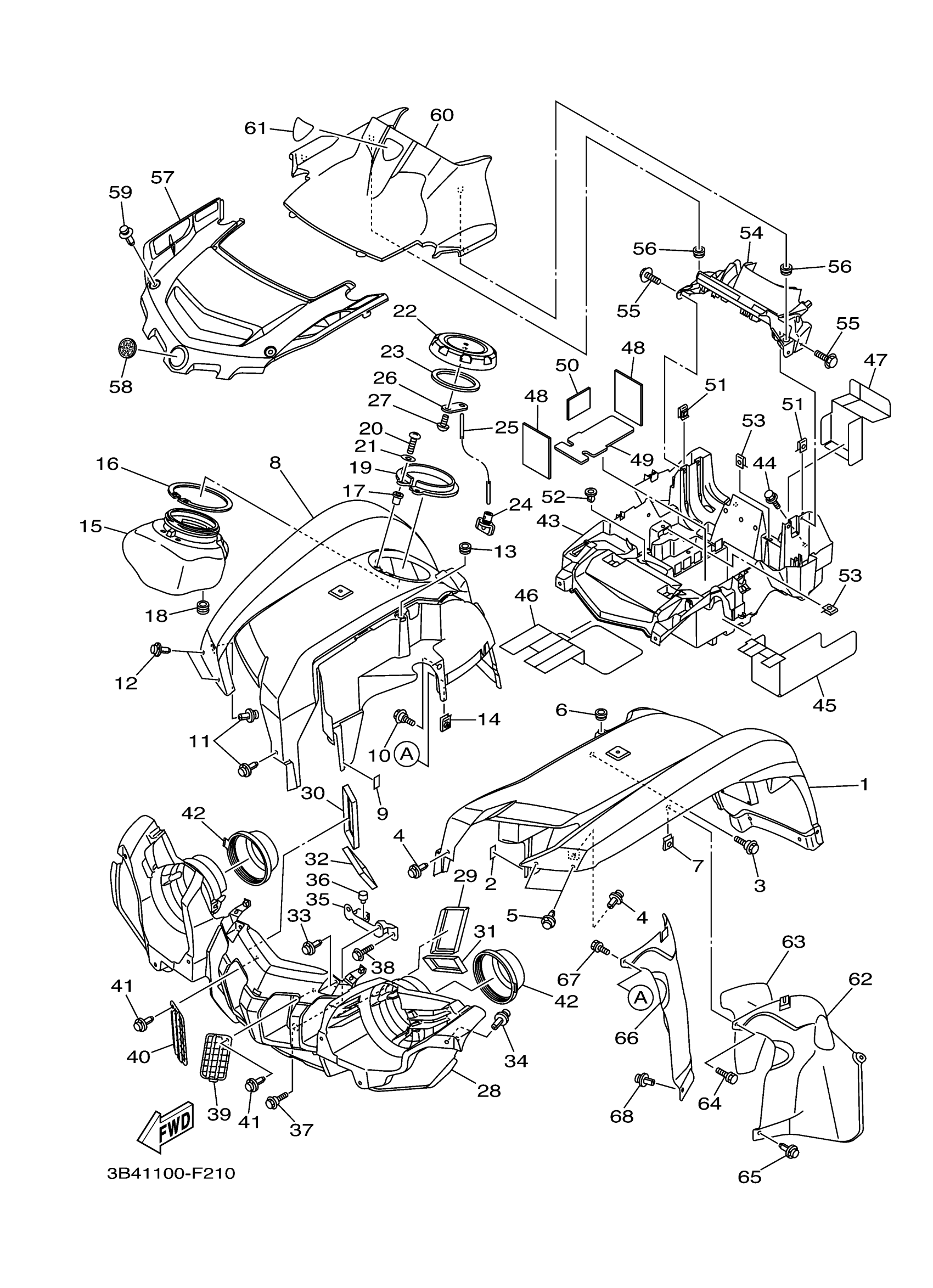

Yamaha YFM7FGPHW (GRIZZLY 700 HUNTER) 3B45 2007 FRONT FENDER Diagram
#
1
FRONT FENDER COMP.
3B4-W2151-A0-00
Unavailable
7
NUT, SPRING(4ES)
90183-06069-00
Unavailable
8
FENDER, FRONT 2
3B4-21556-A0-00
Unavailable
14
NUT, SPRING(4ES)
90183-06069-00
Unavailable
16
SEAL, BOX 1
3B4-2838M-00-00
Unavailable
17
NUT(1KT)
90179-05523-00
Unavailable
18
GROMMET
90480-13004-00
Unavailable
19
HOLDER
3B4-2839N-01-00
Unavailable
20
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
21
WASHER, PLAIN (646)
92990-05600-00
Unavailable
22
CAP
1HP-F151B-00-00
Unavailable
23
SEAL
3B4-28307-00-00
Unavailable
24
PLUG, DRAIN
3B4-215A1-00-00
Unavailable
25
STOPPER, OPEN
3B4-2845L-00-00
Unavailable
26
PLATE 2
3B4-28487-00-00
Unavailable
27
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
28
GRILLE, FRONT
3B4-28309-02-00
Unavailable
29
DAMPER 1
3B4-28217-00-00
Unavailable
30
DAMPER 2
3B4-28227-00-00
Unavailable
31
DAMPER 3
3B4-28237-00-00
Unavailable
32
DAMPER 4
3B4-28247-00-00
Unavailable
34
RIVET(4PH)
90269-07077-00
Unavailable
35
STAY, LEG SHIELD
3B4-28332-00-00
Unavailable
36
STOPPER
5RU-24768-00-00
Unavailable
38
BOLT, FLANGE
95817-06012-00
Unavailable
39
GRILL, AIR INTAKE 1
3B4-2837N-00-00
Unavailable
40
GRILL, AIR INTAKE 2
3B4-2837R-00-00
Unavailable
41
RIVET(4PH)
90269-07077-00
Unavailable
42
CAP
3B4-28349-00-00
Unavailable
43
PLATE 1
3B4-21523-00-00
Unavailable
44
BOLT, WITH WASHER
90119-06152-00
Unavailable
45
INSULATOR 1
3B4-8253E-00-00
Unavailable
46
INSULATOR 2
3B4-8253F-00-00
Unavailable
47
INSULATOR
3B4-8254E-00-00
Unavailable
48
INSU.
3B4-8233W-00-00
Unavailable
49
SEAT, BATTERY
3B4-82122-00-00
Unavailable
50
SEAT, BATTERY
1S3-82123-00-00
Unavailable
51
NUT, SPRING(4ES)
90183-06069-00
Unavailable
52
PLUG(4BP)
90338-08226-00
Unavailable
53
NUT, SPRING
90183-05008-00
Unavailable
54
PANEL, CONSOLE 1
3B4-2837L-01-00
Unavailable
55
BOLT, WITH WASHER
90119-06152-00
Unavailable
56
GROMMET(4FU)
90480-13567-00
Unavailable
57
PANEL, FRONT
1HP-F3391-00-00
Unavailable
58
TUNING FORK MARK
5KM-2175B-00-00
Unavailable
60
LID
3B4-28313-02-00
Unavailable
61
EMBLEM 3D
3B4-26232-01-00
Unavailable
62
FENDER, INNER
1HP-F1552-00-00
Unavailable
63
SEAL 1
1HP-F1575-01-00
Unavailable
64
BOLT, WITH WASHER
90119-06152-00
Unavailable
66
FENDER, INNER 2
1HP-F1553-00-00
Unavailable
67
BOLT, WITH WASHER
90119-06152-00
Unavailable
