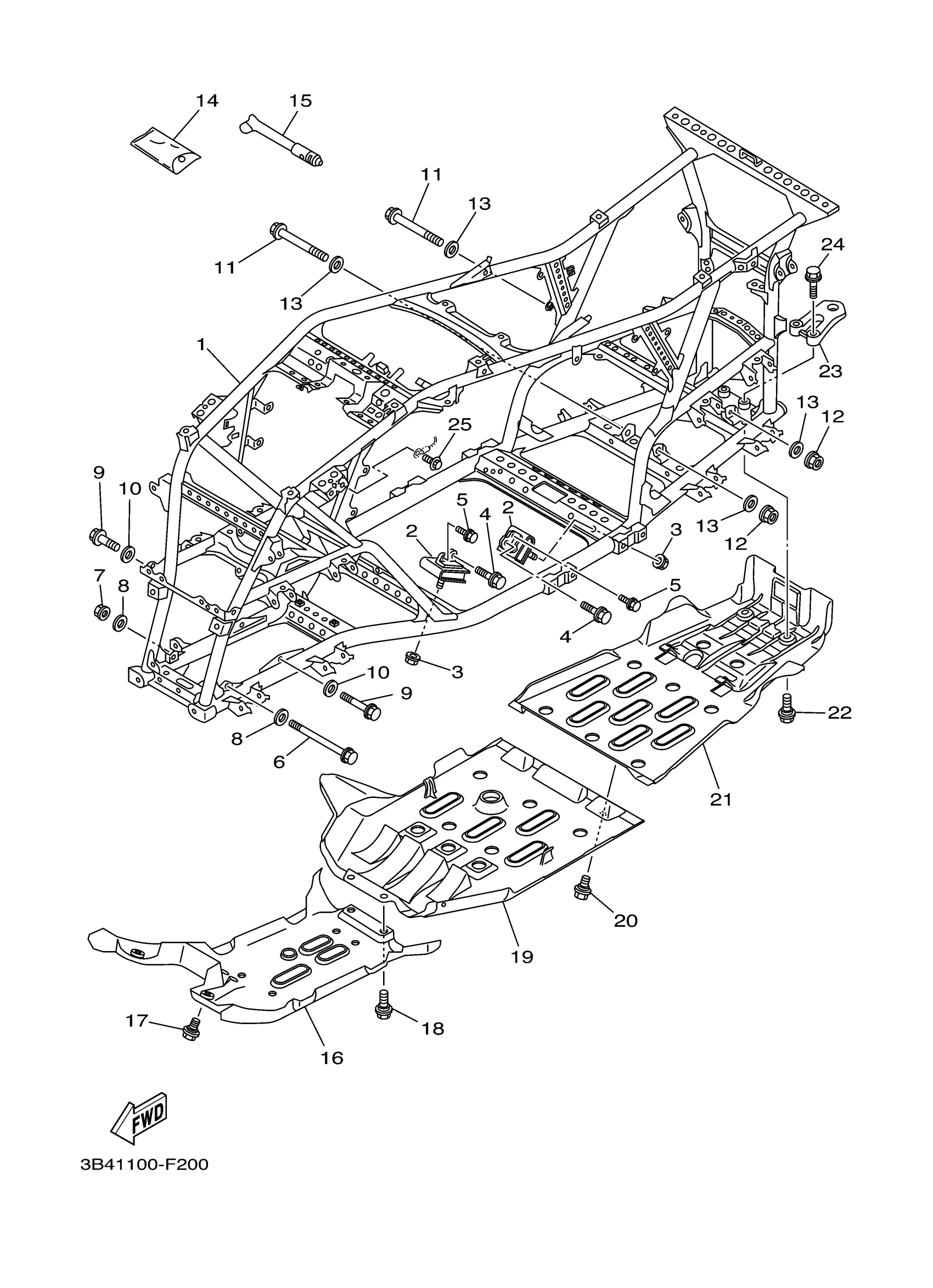

Yamaha YFM7FGPDUW (GRIZZLY 700 DUCKS) 3B48 2007 FRAME Diagram

#

Description
Price

1

FRAME COMPLETE

1HP-F1110-A9-00

Unavailable

2

DAMPER, RUBBER 1

3B4-21485-01-00

$42.99

3

NUT, S/L FLANGE

95602-10200-00

$4.82

4

BOLT, FLANGE

95812-10035-00

$5.60

5

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

6

BOLT, FLANGE

90105-10110-00

$9.49

7

NUT, SELF-LOCKING

90185-10011-00

$5.60

8

WASHER, PLATE(47X)

90201-101J1-00

$8.49

9

BOLT, FLANGE

95817-10030-00

$8.49

10

WASHER, PLATE(47X)

90201-101J1-00

$8.49

11

BOLT, FLANGE

90105-10073-00

Unavailable

12

NUT, SELF-LOCKING

90185-10011-00

$5.60

13

WASHER, PLATE(47X)

90201-101J1-00

$8.49

14

TOOL KIT

5TG-28100-00-00

Unavailable

15

GAUGE, AIR

1NV-2811A-01-00

$57.99

16

GUARD, ENGINE 1

1HP-F147A-01-00

Unavailable

17

BOLT

90109-06086-00

Unavailable

18

BOLT(3KJ)

90109-063F5-00

Unavailable

19

GUARD, ENGINE 2

1HP-F147E-02-00

Unavailable

20

BOLT(3KJ)

90109-063F5-00

Unavailable

21

GUARD, ENGINE 3

1HP-F147F-01-00

Unavailable

22

BOLT

90109-06086-00

Unavailable

23

HOOK

1HP-F8488-00-00

Unavailable

24

BOLT, FLANGE

95817-10035-00

Unavailable

25

BOLT, FLANGE

95817-06012-00

Unavailable
