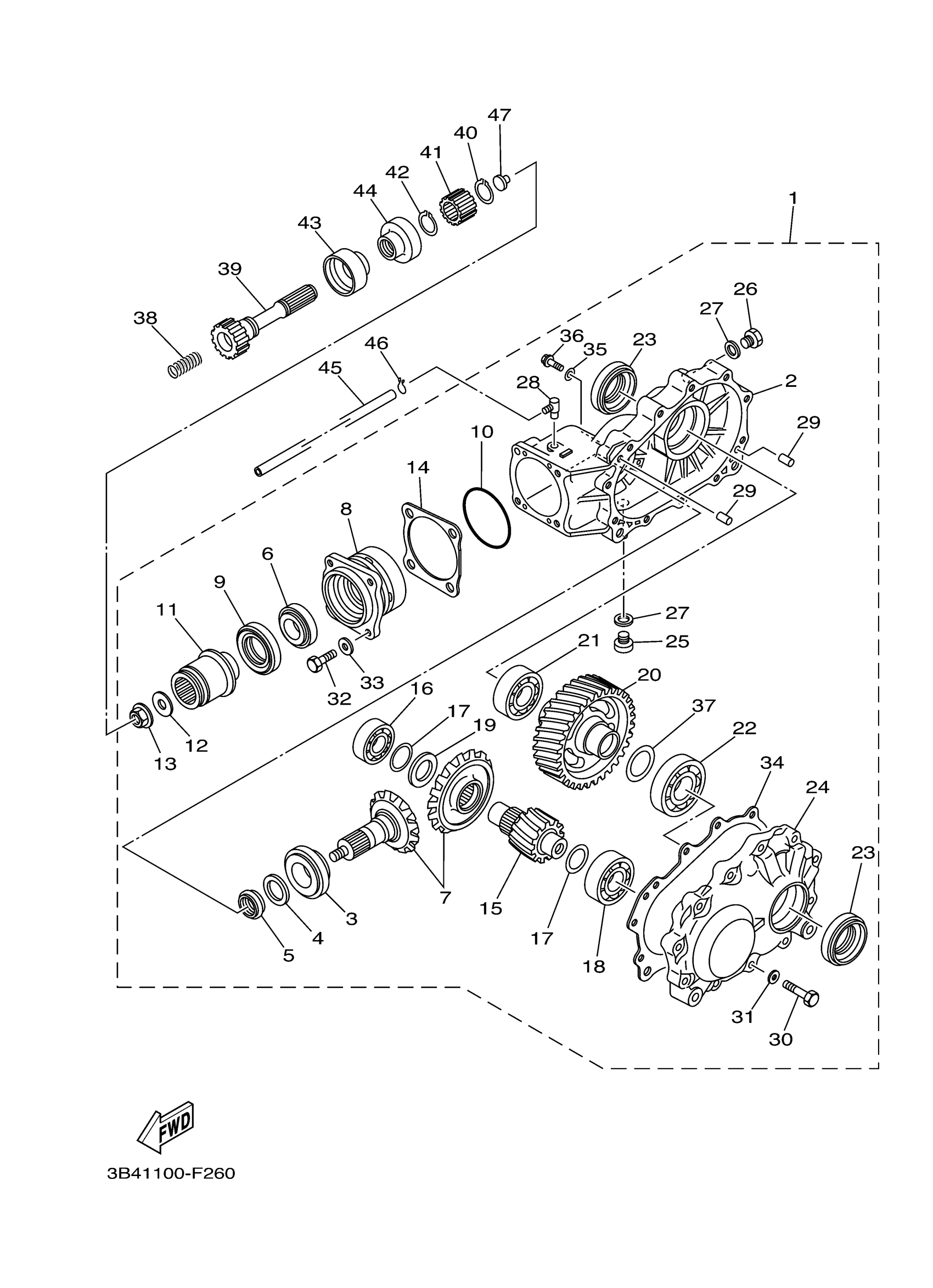

Yamaha YFM7FGPDUW (GRIZZLY 700 DUCKS) 3B48 2007 DRIVE SHAFT Diagram

#

Description
Price

1

REAR AXLE GEAR CASE ASSY

1HP-46101-00-00

$1,461.99

2

HOUSING, DRIVE SHAFT

3B4-46151-00-00

$237.71

3

BEARING (70E)

93332-00046-00

$46.72

4

WASHER, PLATE (1J7)

90201-25634-00

$9.17

5

SPACER, EXPANSION

3B4-46129-00-00

$6.72

6

BEARING TAPER 52-25 (70R)

93332-00053-00

$55.43

7

RING GEAR SET

3B4-461A0-00-00

$419.00

8

HOUSING, PINION BEARING

3B4-46144-00-00

$104.06

9

OIL SEAL

93102-35009-00

$19.37

10

O-RING

93210-626A7-00

$8.16

11

COUPLING

3B4-46126-10-00

$84.19

12

WASHER, PLATE

90201-12029-00

$6.17

13

NUT (4X7)

90179-12325-00

$5.78

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.3T)

2HR-46127-00-30

$14.22

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.40T)

2HR-46127-00-40

$14.12

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

14

SHIM, DRIVE PISTON (0.50T)

2HR-46127-00-50

$14.04

15

GEAR, PINION 1

3B4-46316-00-00

$129.22

16

BEARING (6K8)

93306-205U1-00

$21.14

17

SHIM, THRUST (0.25T)

3B4-46119-00-00

$6.38

17

SHIM, THRUST (0.30T)

3B4-46119-10-00

$6.38

17

SHIM, THRUST (0.35T)

3B4-46119-20-00

$1.54

17

SHIM, THRUST (0.40T)

3B4-46119-30-00

$6.38

17

SHIM, THRUST (0.45T)

3B4-46119-40-00

$1.58

17

SHIM, THRUST (0.50T)

3B4-46119-50-00

$1.54

18

BEARING(3RR)

93306-30560-00

$71.07

19

SHIM,THRUST (4.5T)

3B4-4621F-00-00

$7.34

19

SHIM,THRUST (4.8T)

3B4-4621F-10-00

$7.31

19

SHIM,THRUST (5.1T)

3B4-4621F-20-00

$7.34

19

SHIM,THRUST (5.4T)

3B4-4621F-30-00

$7.34

20

GEAR, WHEEL 1

3B4-46326-01-00

$204.83

21

BRG,R-B 6007 62MM 150G KY

93306-00702-00

$52.00

22

BRG,R-B 6207 72MM 280G (688)

93306-207U0-00

$30.09

23

OIL SEAL

93102-35009-00

$19.37

24

HOUSING, BEARING

3B4-46152-00-00

$95.62

25

PLUG, STRAIGHT SCREW

90340-14002-00

$16.95

26

PLUG, STRAIGHT(2E9)

90340-14029-00

$3.20

27

GASKET

214-11198-01-00

$2.66

28

BREATHER

5UG-15371-00-00

$33.79

29

PIN, DOWEL(3VD)

99530-10114-00

$2.23

30

BOLT

97017-08035-00

$5.75

31

.. WASHER, PLATE

92990-08600-00

$2.36

32

BOLT, HEXAGON

97017-08025-00

$7.46

33

.. WASHER, PLATE

92990-08600-00

$2.36

34

GSKT., CASE

3B4-4631A-01-00

$10.78

35

WASHER, PLATE 3411117500

90201-08087-00

$3.13

36

BOLT, FLANGE

95022-08012-00

$9.51

37

SHIM (0.25T)

3B4-46344-00-00

$1.91

37

SHIM (0.30T)

3B4-46344-10-00

$6.38

37

SHIM (0.35T)

3B4-46344-20-00

$1.91

37

SHIM (0.40T)

3B4-46344-30-00

$1.88

37

SHIM (0.45T)

3B4-46344-40-00

$1.88

37

SHIM (0.50T)

3B4-46344-50-00

$6.38

38

SPRING, COMPRESSION

90501-18002-00

$3.86

39

SHAFT, DRIVE

3B4-46172-10-00

$98.62

40

CIRCLIP(1EY)

99009-19400-00

$6.17

41

COUPLING

5KM-46126-00-00

$57.01

42

CIRCLIP (537)

93410-22039-00

$6.17

43

SEAL 2

5KM-46137-00-00

$14.62

44

SEAL 1

5KM-46136-00-00

$7.51

45

HOSE (L1700)

90445-070G6-00

$35.08

46

CLIP (1J7)

90467-07029-00

$1.92

47

DAMPER

5KM-46559-00-00

$6.72
