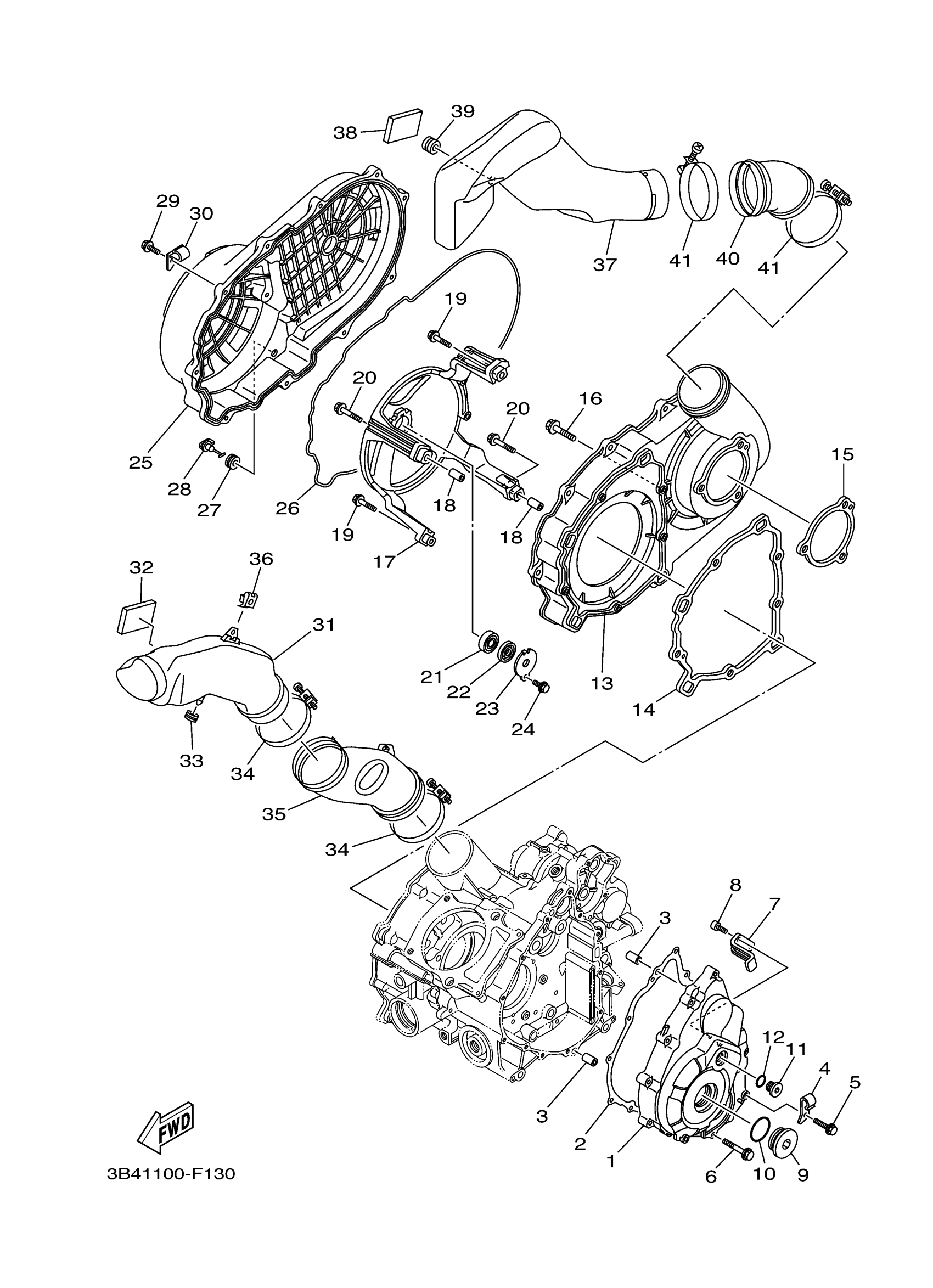

Yamaha YFM7FGPDUW (GRIZZLY 700 DUCKS) 3B48 2007 CRANKCASE COVER 1 Diagram
#
Description
Price
16
95822-06030
95822-06030-00
Unavailable
17
HOUSING, BEARING
3B4-15442-00-00
Unavailable
19
95822-06030
95822-06030-00
Unavailable
20
BOLT, FLANGE
95817-06040-00
Unavailable
21
BEARING(82M)
93306-20117-00
Unavailable
22
OIL SEAL
93101-12168-00
Unavailable
23
PLATE, BEARING COVER
4WV-15381-00-00
Unavailable
24
BOLT, FLANGE
95022-06016-00
Unavailable
25
COVER, CRANKCASE 3
3B4-15431-01-00
Unavailable
26
SEAL, CRANKCASE
3B4-15379-00-00
Unavailable
27
GROMMET (462)
90480-13018-00
Unavailable
28
PLUG, DRAIN
5KM-15351-00-00
Unavailable
29
BOLT, FLANGE
95817-06020-00
Unavailable
30
CLAMP
90462-08055-00
Unavailable
31
DUCT, AIR
1HP-E5471-00-00
Unavailable
32
DAMPER, PLATE 1
5EJ-2414H-00-00
Unavailable
33
GROMMET(4FU)
90480-13567-00
Unavailable
34
CLAMP,HOSE
90460-85135-00
Unavailable
35
SEAL, AIR DUCT
1HP-E5472-00-00
Unavailable
36
NUT, SPRING
90183-06100-00
Unavailable
37
DUCT, AIR
1HP-E5473-00-00
Unavailable
38
SEAT, BATTERY
1S3-82123-00-00
Unavailable
39
GROMMET
90480-13014-00
Unavailable
40
SEAL, AIR DUCT
1HP-E5474-00-00
Unavailable
41
CLAMP,HOSE
90460-85135-00
Unavailable
