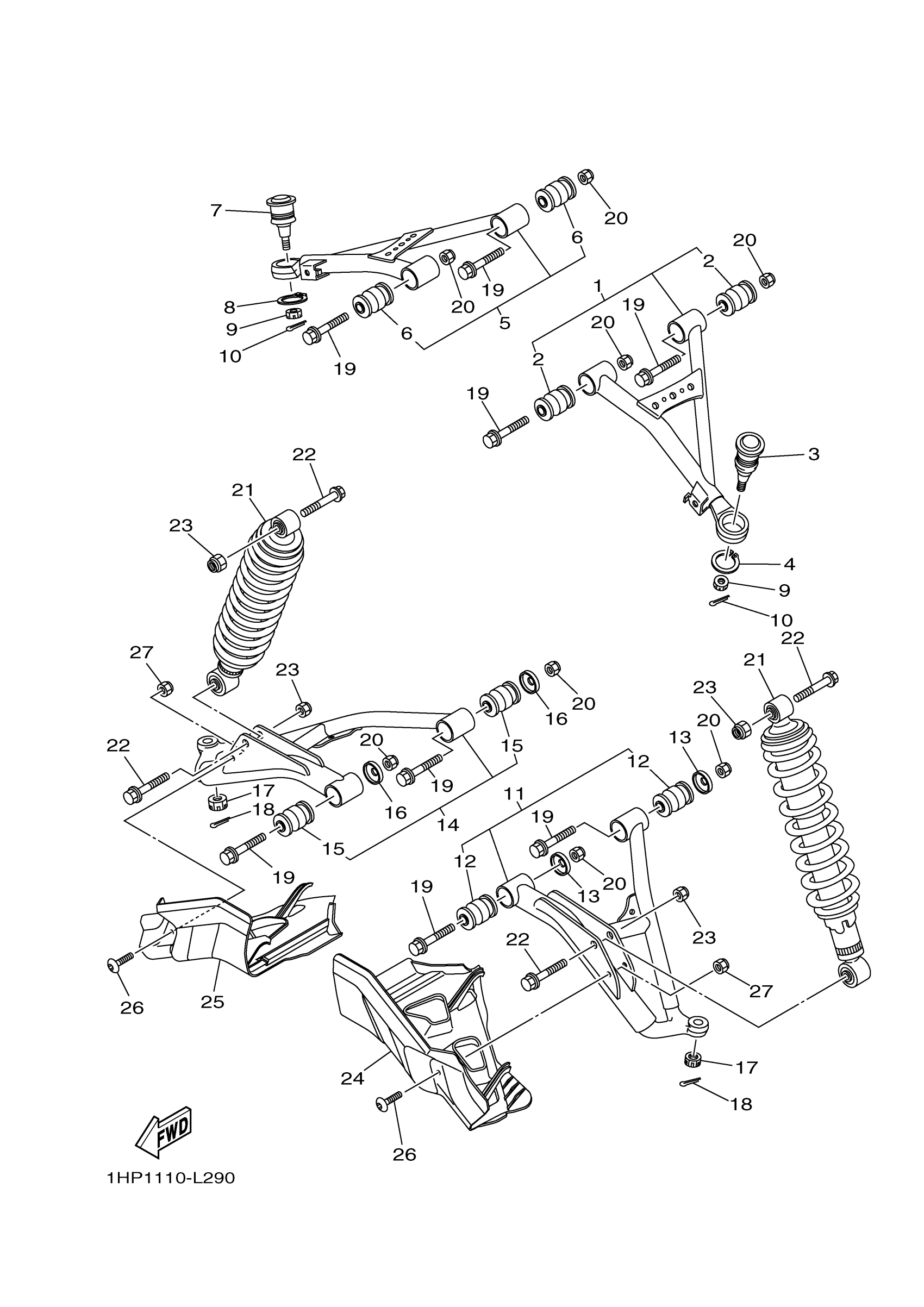

Yamaha YFM7FGPDL (GRIZZLY 700 EPS 4WD) 1HPL 2013 FRONT SUSPENSION WHEEL Diagram
#
Description
Price
5
FRONT UPPER ARM CO
1HP-F3550-01-00
Unavailable
19
BOLT, FLANGE
90105-10222-00
Unavailable
20
NUT, SELF-LOCKING
90185-10012-00
Unavailable
21
SHOCK ABSORBER ASS
1HP-F3350-00-00
Unavailable
22
BOLT, FLANGE
90105-10131-00
Unavailable
23
NUT, SELF-LOCKING
90185-10012-00
Unavailable
24
COVER, UNDER 1
1HP-F3123-01-00
Unavailable
25
COVER, UNDER 2
1HP-F3133-01-00
Unavailable
26
BOLT,HEX SKT HEAD
90111-06814-00
Unavailable
27
NUT, NYLON
95707-06300-00
Unavailable
