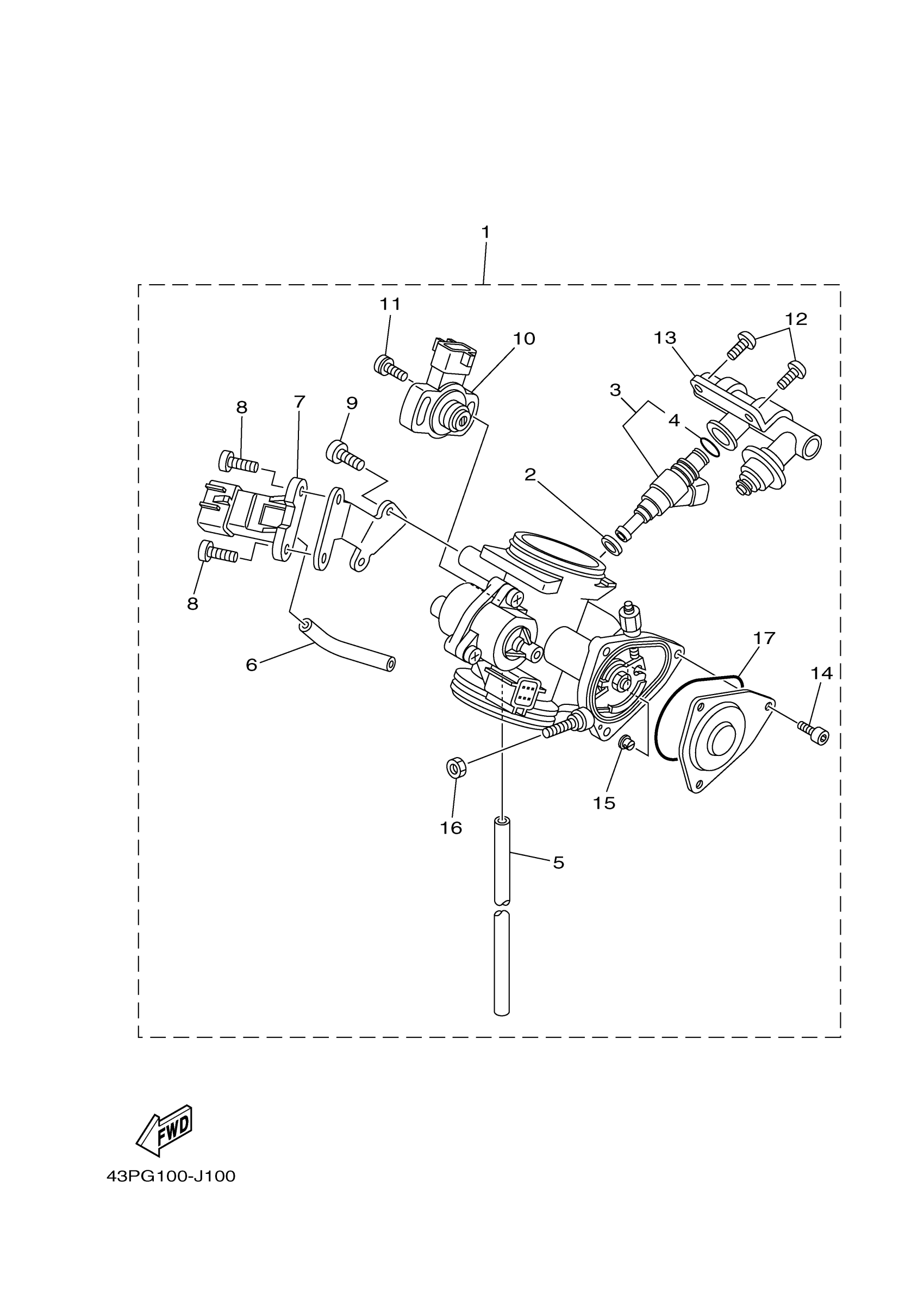

Yamaha YFM7FGPAGR (GRIZZLY 700 EPS 4WD) 1DT1 2011 THROTTLE BODY ASSY 1 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

43P-13750-12-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

3

INJECTOR ASSY

3B4-13761-00-00

$185.98

4

O-RING

5PS-14147-00-00

$8.68

5

HOSE, AIR

28P-13543-00-00

Unavailable

6

PIPE 1

5JW-14348-00-00

$18.03

7

SENSOR, PRESSURE

1C7-82380-00-00

$148.19

8

SCREW PAN HEAD

98580-06010-00

$5.75

9

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

10

THROTTLE SENSOR AS

3B4-85885-01-00

Unavailable

11

SCREW

8CC-14216-10-00

$6.66

12

SCREW, PAN

98517-06012-00

$2.93

13

DELIVERY PIPE ASSY 1

3B4-13160-00-00

$253.52

14

BOLT

91312-04006-00

$2.53

15

GUIDE, CABLE

1UY-14155-00-00

$14.81

16

NUT, CABLE ADJUSTING

1S3-14161-00-00

Unavailable

17

O-RING

5LP-14147-00-00

Unavailable
