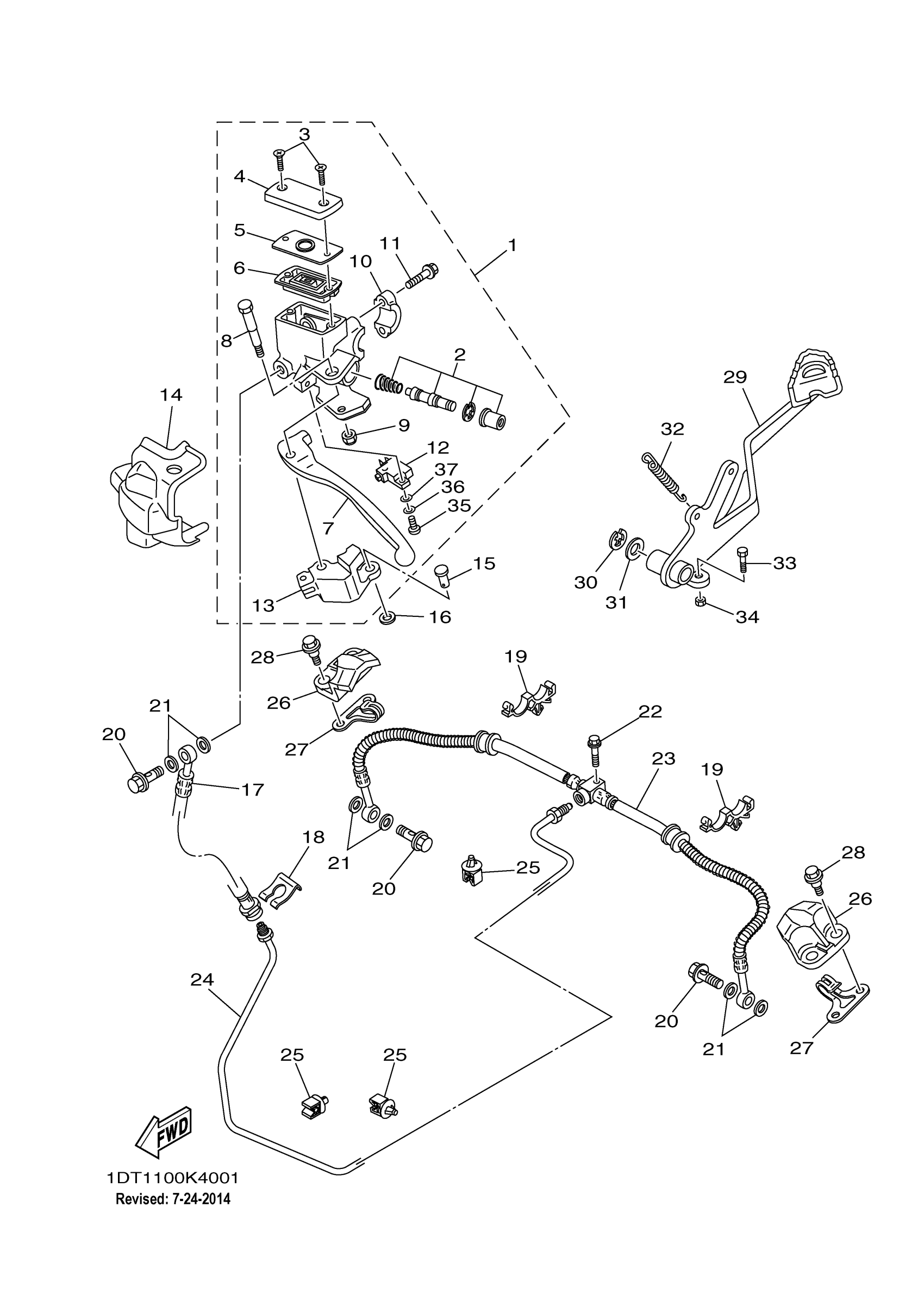

Yamaha YFM7FGPAGR (GRIZZLY 700 EPS 4WD) 1DT1 2011 REAR MASTER CYLINDER Diagram
#
Description
Price
2
CYLINDER KIT, MASTER
5LP-W0041-00-00
Unavailable
12
FRONT STOP SWITCH ASSY
3B4-83980-00-00
Unavailable
13
KNOCKER, REAR MASTER CYLINDER
3B4-26168-00-00
Unavailable
16
.. WASHER, PLATE
92990-08600-00
Unavailable
17
HOSE, BRAKE 1
1HP-F5872-00-00
Unavailable
18
CIRCLIP
2GU-25866-00-00
Unavailable
19
CLAMP
90464-16006-00
Unavailable
20
BOLT, UNION
90401-10015-00
Unavailable
21
WASHER, PLATE(481)
90201-10118-00
Unavailable
22
BOLT, FLANGE
95822-06025-00
Unavailable
23
HOSE, BRAKE
1HP-F5874-00-00
Unavailable
24
PIPE, BRAKE 2
1HP-F5882-02-00
Unavailable
25
CLAMP 1
5KM-81677-00-00
Unavailable
26
COVER 1
3B4-25715-00-00
Unavailable
27
HOLDER, BRAKE HOSE 5
3B4-2588F-00-00
Unavailable
28
BOLT
90109-06172-00
Unavailable
29
PEDAL, BRAKE
1HP-F7211-01-00
Unavailable
30
CIRCLIP
99006-10600-00
Unavailable
31
WASHER, PLATE
90201-14023-00
Unavailable
32
SPRING, TENSION
90506-20014-00
Unavailable
33
BOLT
97012-06014-00
Unavailable
34
NUT(6TA)
95317-06600-00
Unavailable
35
SCREW, PAN HEAD
98511-04012-00
Unavailable
36
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
37
WASHER, PLAIN (646)
92990-04600-00
Unavailable
