Description

Price

1

FRONT UPPER ARM CO

1HP-F3540-01-00

$61.99

2

BALL JOINT

5LP-23579-00-00

$65.99

3

CIRCLIP(4A6)

99009-30400-00

$8.49

4

BUSH

1HP-F3526-00-00

$22.99

5

FRONT UPPER ARM CO

1HP-F3550-01-00

Unavailable

6

BALL JOINT

5LP-23579-00-00

$65.99

7

CIRCLIP(4A6)

99009-30400-00

$8.49

8

BUSH

1HP-F3526-00-00

$22.99

9

NUT, CASTLE

90171-10001-00

$7.49

10

PIN, COTTER

91490-20025-00

$1.99

11

FRONT LOWER ARM CO

1HP-F3570-11-00

$68.99

12

BUSH

1HP-F3526-00-00

$22.99

13

WASHER

5KM-22149-10-00

$7.99

14

FRONT LOWER ARM CO

1HP-F3580-11-00

$78.99

15

BUSH

1HP-F3526-00-00

$22.99

16

WASHER

5KM-22149-10-00

$7.99

17

NUT, CASTLE

90171-12001-00

Unavailable

18

PIN, COTTER

91490-25020-00

Unavailable

19

BOLT, FLANGE

90105-10222-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

Unavailable

21

SHOCK ABSORBER ASSY

3B4-23350-01-00

Unavailable

22

BOLT, FLANGE

90105-10131-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable

24

COVER, UNDER 1

28P-23123-00-00

Unavailable

25

COVER, LOWER 2

28P-23133-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

Unavailable

27

NUT, NYLON

95707-06300-00

Unavailable

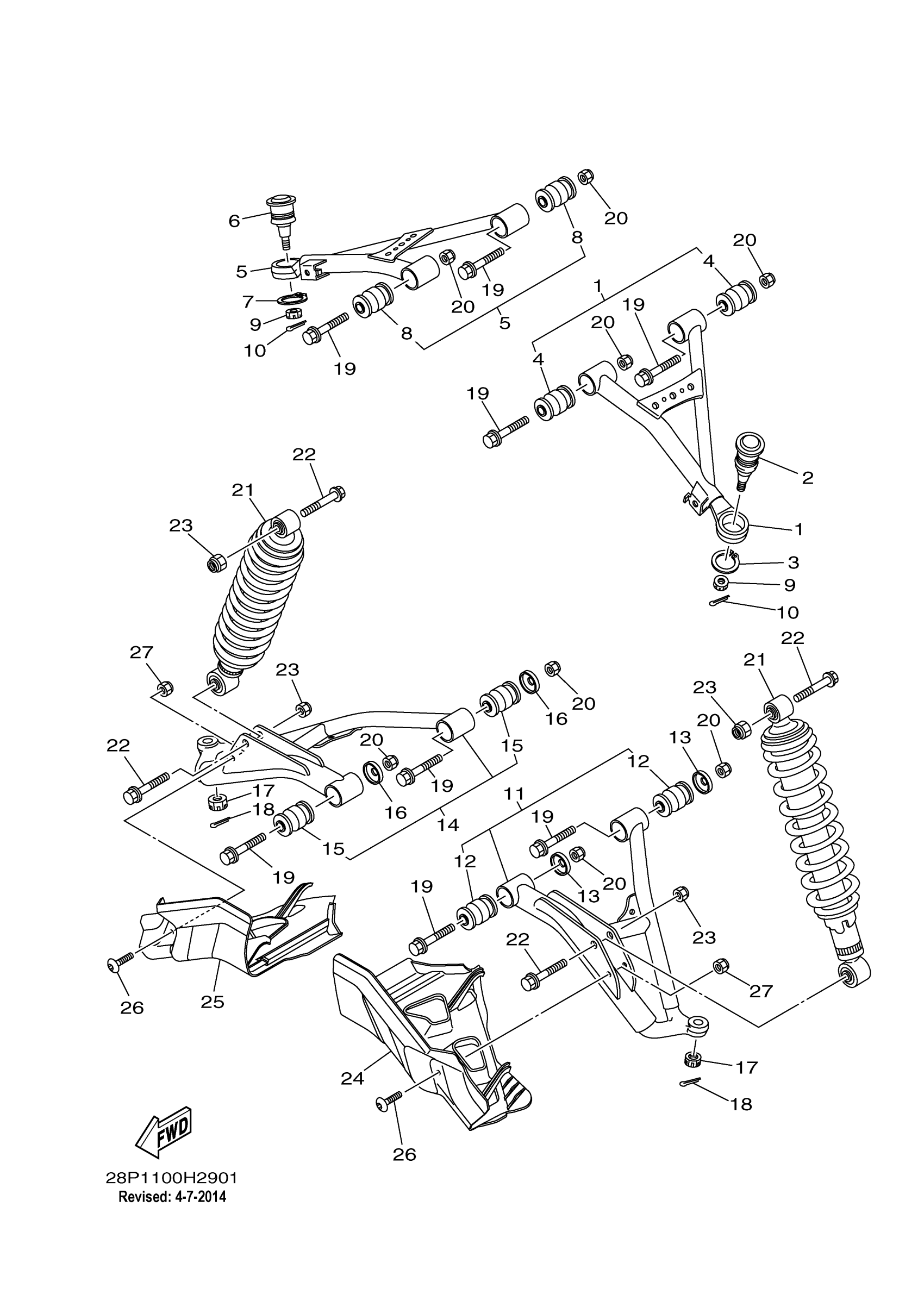

Yamaha YFM7FGHZ (GRIZZLY 700 FI 4WD HUNTER) 5C0G 2010 FRONT SUSPENSION WHEEL Diagram

FRONT UPPER ARM CO

BALL JOINT

CIRCLIP(4A6)

BUSH

FRONT UPPER ARM CO

BALL JOINT

CIRCLIP(4A6)

BUSH

NUT, CASTLE

PIN, COTTER

FRONT LOWER ARM CO

BUSH

WASHER

FRONT LOWER ARM CO

BUSH

WASHER

NUT, CASTLE

PIN, COTTER

BOLT, FLANGE

NUT, SELF-LOCKING

SHOCK ABSORBER ASSY

BOLT, FLANGE

NUT, SELF-LOCKING

COVER, UNDER 1

COVER, LOWER 2

BOLT, HEXAGON SOCKET HEAD(3HE)

NUT, NYLON
