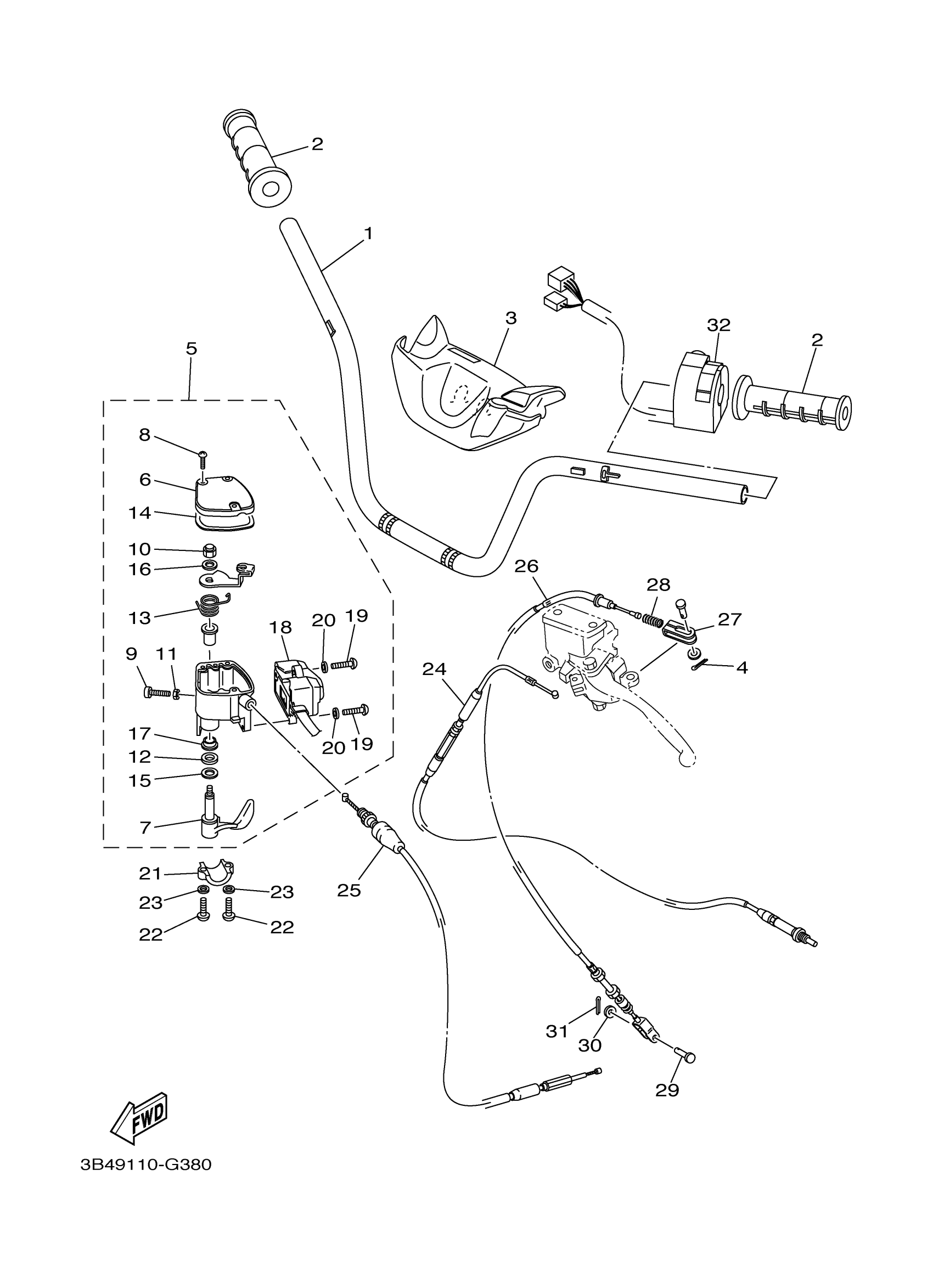

Yamaha YFM7FGHX (GRIZZLY FI 700 HUNTER) 5C05 2008 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3B4-26111-20-00

Unavailable

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

PROTECTOR, HANDLEBAR

3B4-26124-11-00

Unavailable

4

PIN, COTTER

91490-16020-00

Unavailable

5

THROTTLE LEVER ASSY

5KM-26250-23-00

$232.99

6

CAP, GEAR

4KB-2628F-10-00

$30.99

7

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

8

SCREW(3HE)

90149-04278-00

$2.39

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

NUT, U

95617-05100-00

$9.49

11

NUT, HEXAGON SMALL

95317-05700-00

$8.49

12

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

13

SPRING

1NV-26304-00-00

$11.99

14

GASKET

4KB-2628G-00-00

$13.49

15

WASHER

1NV-26129-00-00

$6.99

16

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

17

COLLAR

1NV-2625K-00-00

Unavailable

18

SWITCH, HANDLE 1

5KM-83976-23-00

Unavailable

19

SCREW, PAN HEAD

98517-04016-00

Unavailable

20

WASHER(JF2)

92907-04600-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$4.25

23

WASHER, PLAIN (646)

92990-05600-00

Unavailable

24

CABLE, CONTROL 2

3B4-2637F-10-00

Unavailable

25

CABLE, THROTTLE 1

3B4-26311-10-00

Unavailable

26

CABLE, BRAKE

3B4-26341-00-00

Unavailable

27

JOINT, CABLE

3B4-26347-00-00

Unavailable

28

SPRING, CONPRESSION (7R4)

90501-08665-00

Unavailable

29

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

30

WASHER(6TA)

92907-06200-00

Unavailable

31

PIN, COTTER (648)

91490-20015-00

Unavailable

32

SWITCH, HANDLE 4

3B4-83972-00-00

Unavailable
