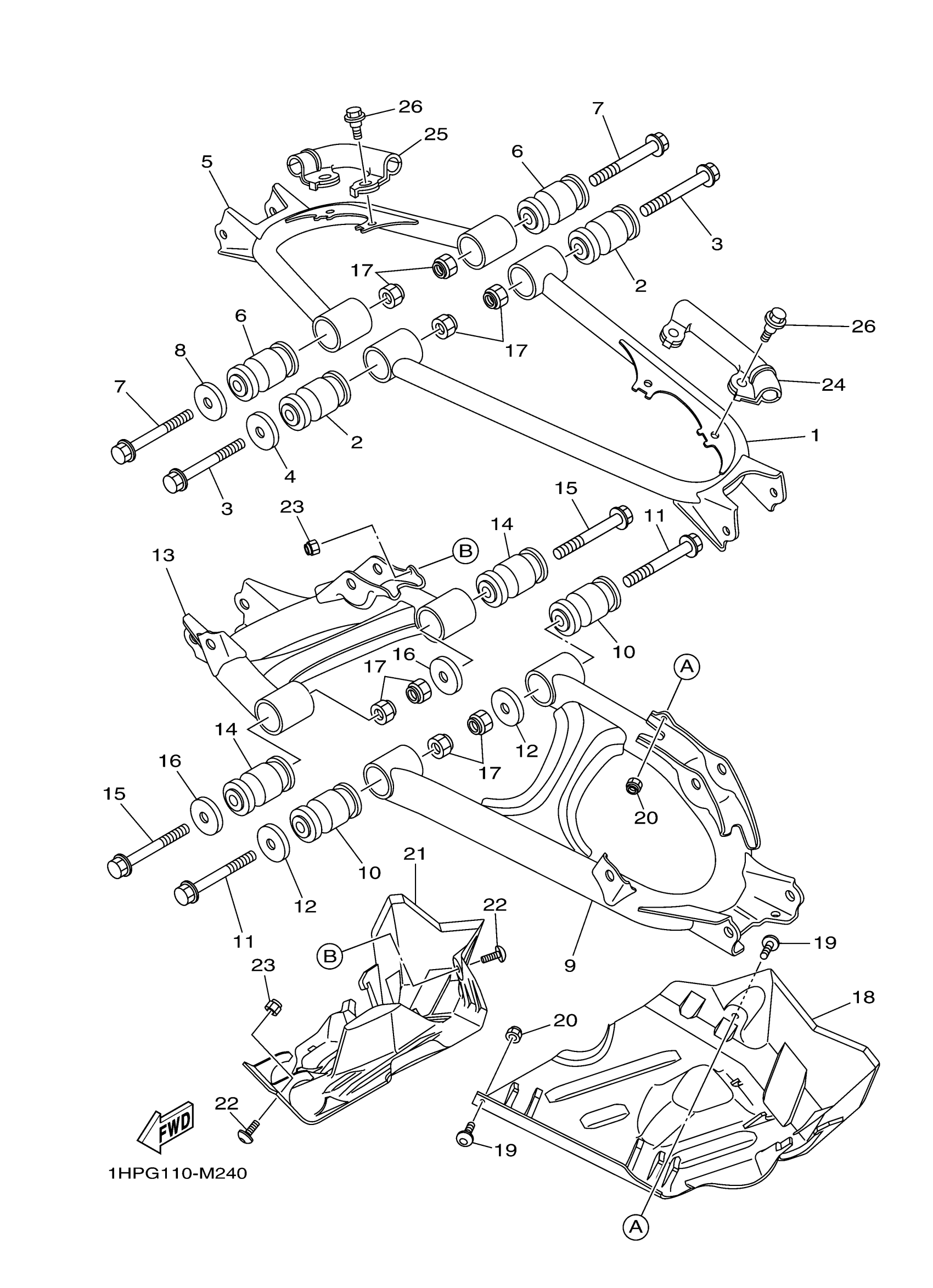

Yamaha YFM7FGHD (GRIZZLY 700 4WD HUNTER) 1ND6 2013 REAR ARM Diagram

#

Description
Price

1

ARM,REAR 1

1HP-F2171-01-00

$40.99

2

BUSH

1HP-F3526-00-00

$22.99

3

BOLT, FLANGE

90105-10222-00

$5.60

4

WASHER

5KM-22149-10-00

$7.99

5

ARM, REAR 2

1HP-F2172-01-00

$41.99

6

BUSH

1HP-F3526-00-00

$22.99

7

BOLT, FLANGE

90105-10222-00

$5.60

8

WASHER

5KM-22149-10-00

$7.99

9

ARM 1

1HP-F217M-01-00

$71.99

10

BUSH

1HP-F3526-00-00

$22.99

11

BOLT, FLANGE

90105-10222-00

$5.60

12

WASHER

5KM-22149-10-00

$7.99

13

ARM 2

1HP-F217N-01-00

Unavailable

14

BUSH

1HP-F3526-00-00

$22.99

15

BOLT, FLANGE

90105-10222-00

$5.60

16

WASHER

5KM-22149-10-00

$7.99

17

NUT, SELF-LOCKING

90185-10012-00

Unavailable

18

COVER, THRUST 1

1HP-F2128-01-00

Unavailable

19

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

20

NUT, NYLON

95707-06300-00

Unavailable

21

COVER, THRUST 2

1HP-F2129-01-00

Unavailable

22

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

23

NUT, NYLON

95707-06300-00

Unavailable

24

PROTECTOR 1

1HP-F315H-00-00

Unavailable

25

PROTECTOR 2

1HP-F315J-00-00

Unavailable

26

BOLT

90109-06840-00

Unavailable
