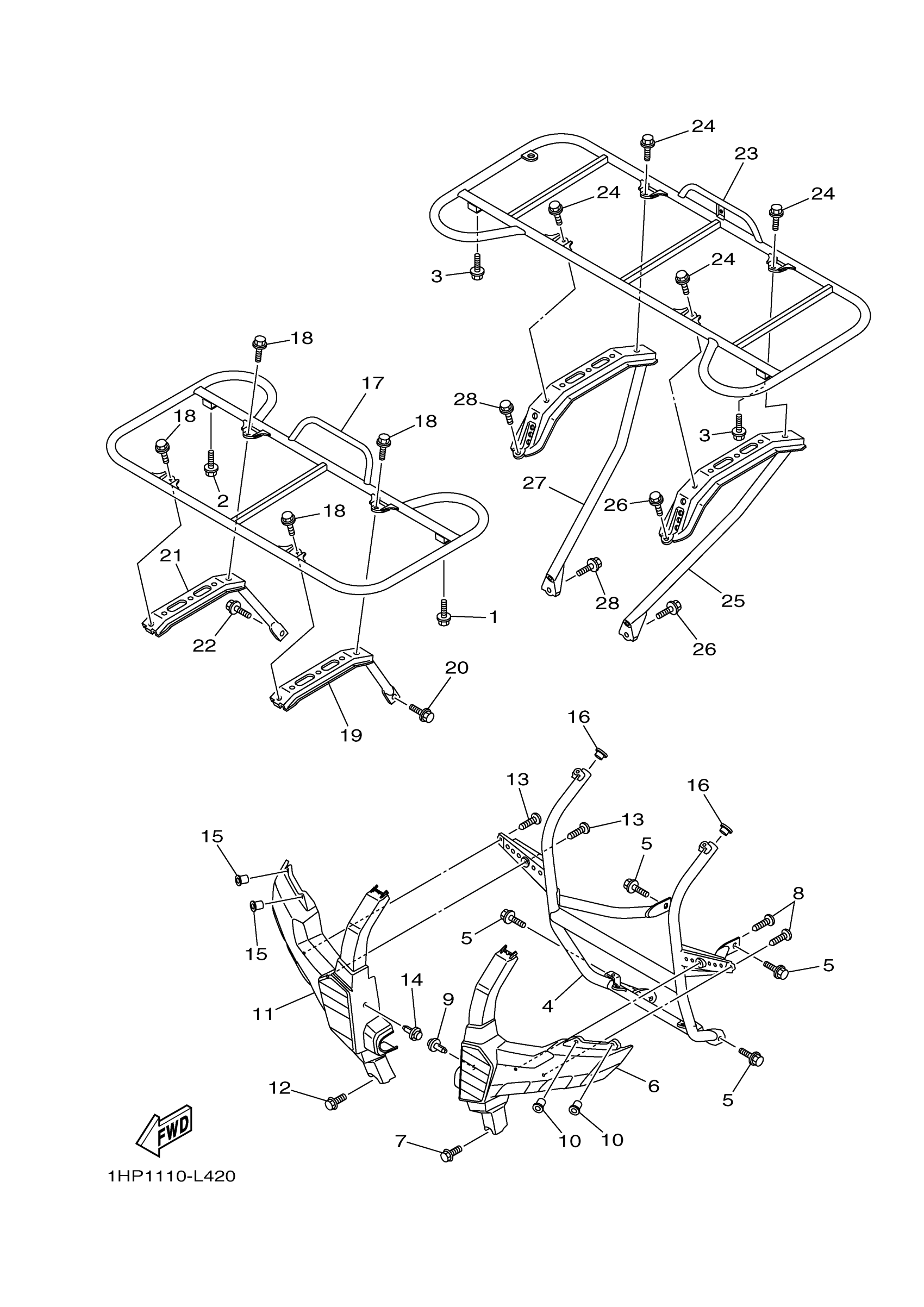

Yamaha YFM7FGHD (GRIZZLY 700 4WD HUNTER) 1ND6 2013 GUARD Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-06152-00

$7.49

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

BOLT, WITH WASHER

90119-06152-00

$7.49

4

BAR, CARRY FRONT

1HP-F845N-01-00

Unavailable

5

BOLT, FLANGE

95817-08014-00

$5.60

6

COVER, 1

1HP-F842M-01-00

$170.99

7

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

8

SCREW, TAPPING

90167-06800-00

$1.71

9

RIVET

90269-07012-00

$2.97

10

NUT(1KT)

90179-05523-00

$8.49

11

COVER, 2

1HP-F842N-01-00

$170.99

12

BOLT, FLANGE (SELF TAPPING)

90105-06832-00

$2.13

13

SCREW, TAPPING

90167-06800-00

$1.71

14

RIVET

90269-07012-00

$2.97

15

NUT(1KT)

90179-05523-00

$8.49

16

PLUG (5R2)

90338-18122-00

Unavailable

17

CARRIER, FRONT

1HP-F4841-00-00

Unavailable

18

BOLT, FLANGE

95817-08014-00

$5.60

19

STAY, FRONT CARRIE

1HP-F4821-00-00

Unavailable

20

BOLT, WITH WASHER

90119-08118-00

Unavailable

21

STAY, FRONT CARRIE

1HP-F4822-00-00

Unavailable

22

BOLT, WITH WASHER

90119-08118-00

Unavailable

23

CARRIER, REAR

1HP-F4842-00-00

Unavailable

24

BOLT, FLANGE

95817-08014-00

$5.60

25

FRAME, CARRIER 1

1HP-F482J-00-00

Unavailable

26

BOLT, WITH WASHER

90119-10044-00

Unavailable

27

FRAME, CARRIER 2

1HP-F482K-00-00

Unavailable

28

BOLT, WITH WASHER

90119-10044-00

Unavailable
