Yamaha YFM7FGHA (GRIZZLY 700 HUNTER) 5C0L 2011 FRONT FENDER Diagram
#
1

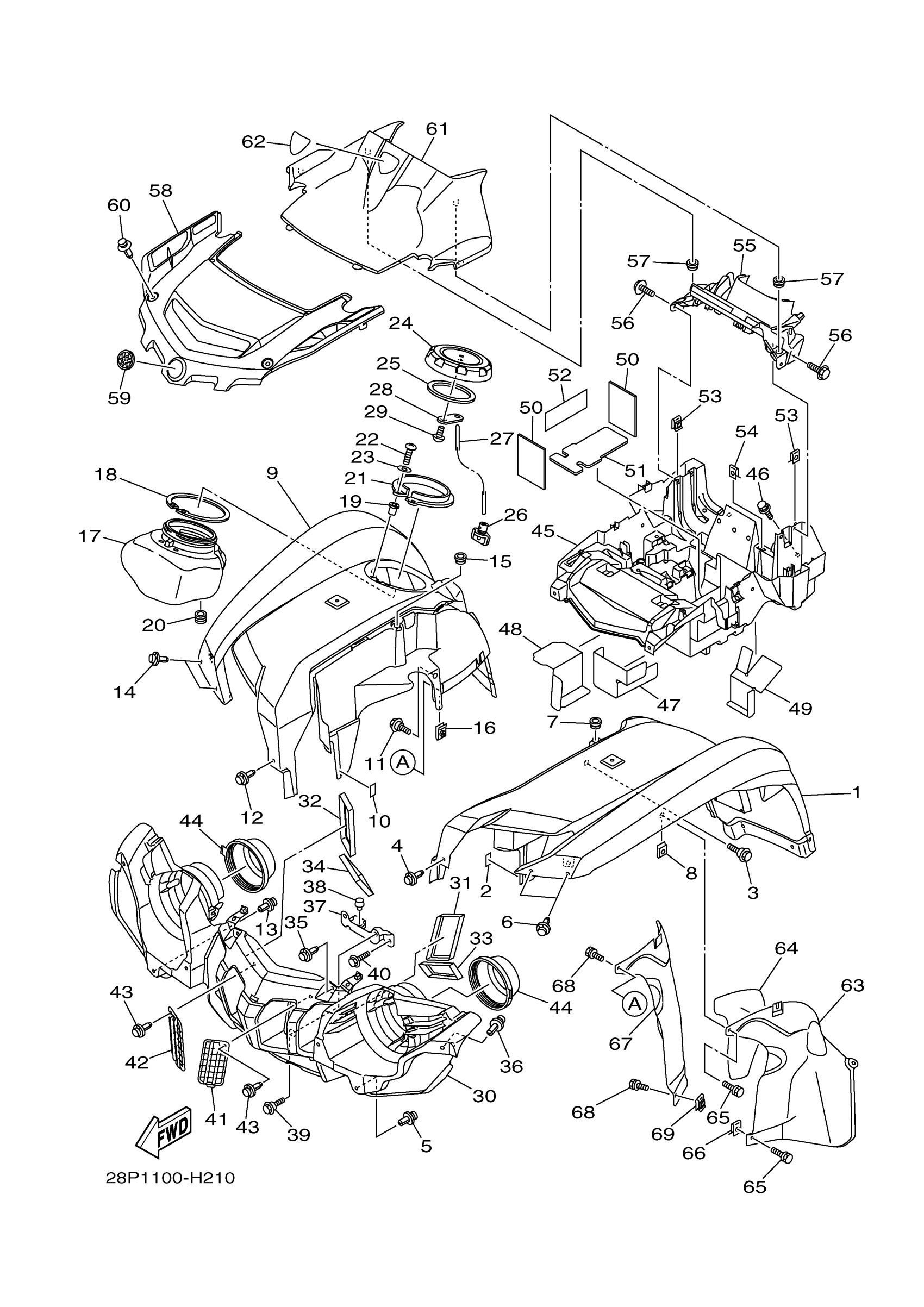

FRONT FENDER COMP.
3B4-W2151-D1-00
Unavailable
8
NUT, SPRING(4ES)
90183-06069-00
Unavailable
9
FENDER, FRONT 2
3B4-21556-D0-00
Unavailable
16
NUT, SPRING(4ES)
90183-06069-00
Unavailable
17
BOX 1
1HP-F838K-00-00
Unavailable
18
SEAL, BOX 1
3B4-2838M-00-00
Unavailable
19
NUT(1KT)
90179-05523-00
Unavailable
20
GROMMET
90480-13004-00
Unavailable
21
HOLDER
3B4-2839N-01-00
Unavailable
22
SCREW, PAN HEAD(JJ6)
98507-05016-00
Unavailable
23
WASHER, PLAIN (646)
92990-05600-00
Unavailable
24
CAP
1HP-F151B-00-00
Unavailable
25
SEAL
3B4-28307-00-00
Unavailable
26
PLUG, DRAIN
3B4-215A1-00-00
Unavailable
27
STOPPER, OPEN
3B4-2845L-00-00
Unavailable
28
PLATE 2
3B4-28487-00-00
Unavailable
29
SCREW, TAPPING(61A)
97780-50612-00
Unavailable
30
GRILLE, FRONT
3B4-28309-02-00
Unavailable
31
DAMPER 1
3B4-28217-00-00
Unavailable
32
DAMPER 2
3B4-28227-00-00
Unavailable
33
DAMPER 3
3B4-28237-00-00
Unavailable
34
DAMPER 4
3B4-28247-00-00
Unavailable
35
RIVET
90269-07010-00
Unavailable
37
STAY, LEG SHIELD
3B4-28332-00-00
Unavailable
38
STOPPER
5RU-24768-00-00
Unavailable
40
BOLT, FLANGE
95817-06012-00
Unavailable
41
GRILL, AIR INTAKE 1
3B4-2837N-00-00
Unavailable
42
GRILL, AIR INTAKE 2
3B4-2837R-00-00
Unavailable
43
RIVET(4PH)
90269-07077-00
Unavailable
44
CAP
3B4-28349-00-00
Unavailable
45
BOX, BATTERY 1
28P-8212B-01-00
Unavailable
46
BOLT, WITH WASHER
90119-06152-00
Unavailable
47
INSULATOR 1
1HP-H253E-01-00
Unavailable
48
INSULATOR 2
1HP-H253F-00-00
Unavailable
49
INSULATOR
1HP-H254E-01-00
Unavailable
50
INSU.
3B4-8233W-10-00
Unavailable
51
SEAT, BATTERY
3B4-82122-00-00
Unavailable
52
DAMPER
1HP-H2176-01-00
Unavailable
53
NUT, SPRING(4ES)
90183-06069-00
Unavailable
54
NUT, SPRING
90183-05008-00
Unavailable
55
PANEL, CONSOLE 1
3B4-2837L-01-00
Unavailable
56
BOLT, WITH WASHER
90119-06152-00
Unavailable
57
GROMMET(4FU)
90480-13567-00
Unavailable
58
PANEL, FRONT
1HP-F3391-00-00
Unavailable
59
TUNING FORK MARK
5KM-2175B-00-00
Unavailable
60
RIVET
90269-07010-00
Unavailable
61
LID
3B4-28313-02-00
Unavailable
62
EMBLEM 3D
3B4-26232-01-00
Unavailable
63
FENDER, INNER
1HP-F1552-00-00
Unavailable
64
SEAL 1
1HP-F1575-01-00
Unavailable
65
BOLT, WITH WASHER
90119-06152-00
Unavailable
66
NUT, SPRING(4ES)
90183-06069-00
Unavailable
67
FENDER, INNER 2
1HP-F1553-00-00
Unavailable
68
BOLT, WITH WASHER
90119-06152-00
Unavailable
69
NUT, SPRING(4ES)
90183-06069-00
Unavailable
