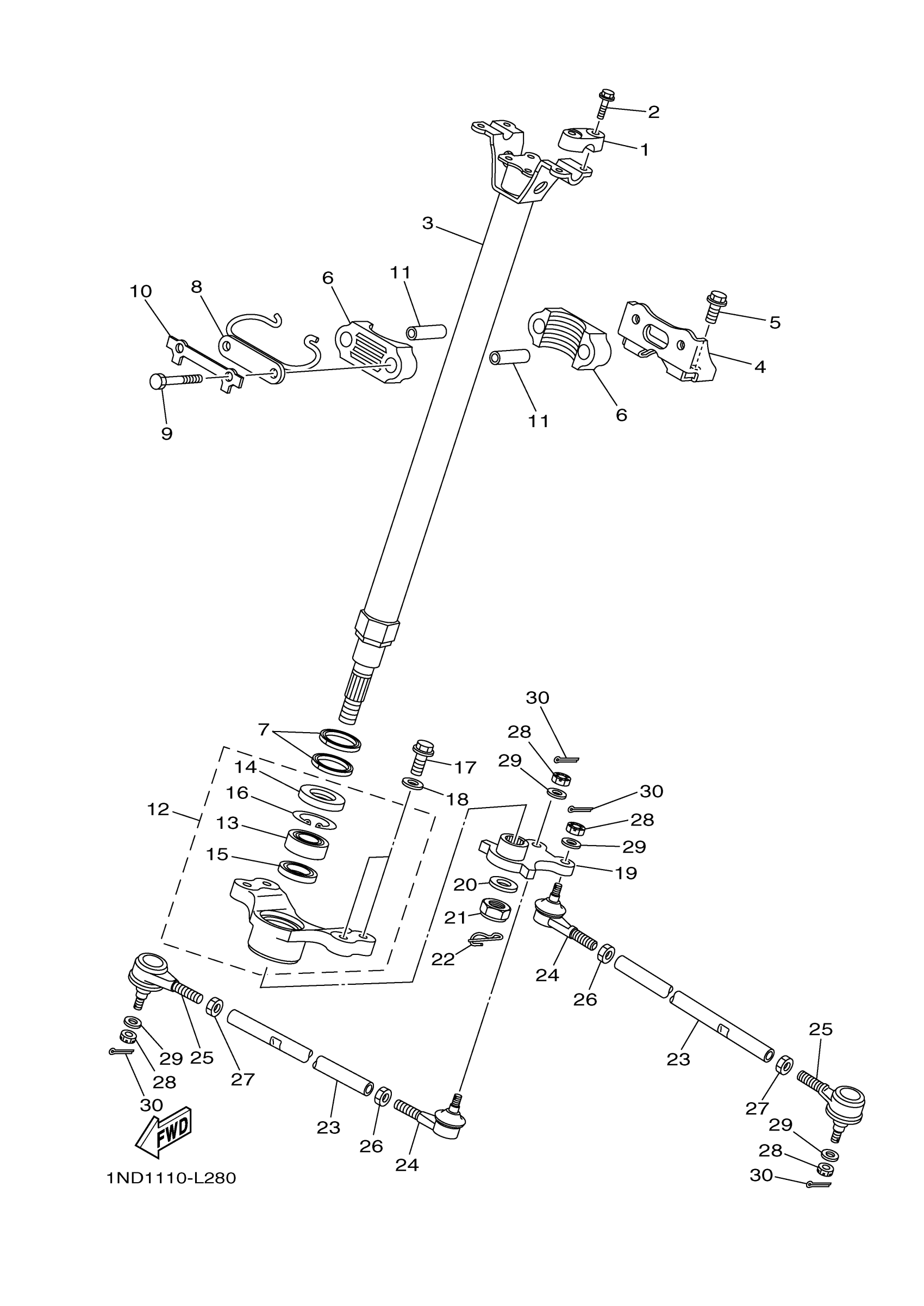

Yamaha YFM7FGBL (GRIZZLY 700 4WD) 1ND10 2012 STEERING Diagram

#

Description
Price

1

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

2

BOLT, FLANGE

95812-08030-00

$3.81

3

COLUMN, STEERING 2

1ND-F3813-00-00

Unavailable

4

SUPT., STRG. COLUMN

1HP-F2517-00-00

Unavailable

5

BOLT, FLANGE

95812-10016-00

$9.49

6

PLANE BEARING, STE

37S-F3812-00-00

$7.99

7

OIL SEAL

93112-31800-00

$1.59

8

BRACKET, STEERING

1HP-F3868-00-00

$9.99

9

BOLT, HEXAGON

97017-08060-00

Unavailable

10

WASHER, LOCK 1

1UY-23894-01-00

$7.99

11

COLLAR(85G)

90387-106T4-00

$14.99

12

STEERING COLUMN SUPPORT ASSY

5C0-22502-10-00

$228.99

13

BEARING

93306-20352-00

$33.99

14

OIL SEAL (25X44X6-810)

93102-25081-00

$5.60

15

OIL SEAL (25X36X8-334)

93102-25099-00

$13.49

16

CIR-CLIP (70R)

93420-40064-00

Unavailable

17

BOLT, FLANGE

95812-08030-00

$3.81

18

WASHER, PLATE

90201-08048-00

Unavailable

19

ARM, PITMAN

1ND-F3816-00-00

Unavailable

20

WASHER, PLATE

90201-14021-00

Unavailable

21

NUT, SELF-LOCKING

90185-14009-00

Unavailable

22

PIN, COTTER

91490-20035-00

Unavailable

23

ROD, TIE

5KM-23831-00-00

Unavailable

24

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

25

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

26

NUT (682)

95380-10700-00

Unavailable

27

NUT

90170-10010-00

Unavailable

28

NUT, CASTLE

90171-10001-00

Unavailable

29

WASHER (25G)

90209-10229-00

Unavailable

30

PIN, COTTER

91490-20025-00

Unavailable
