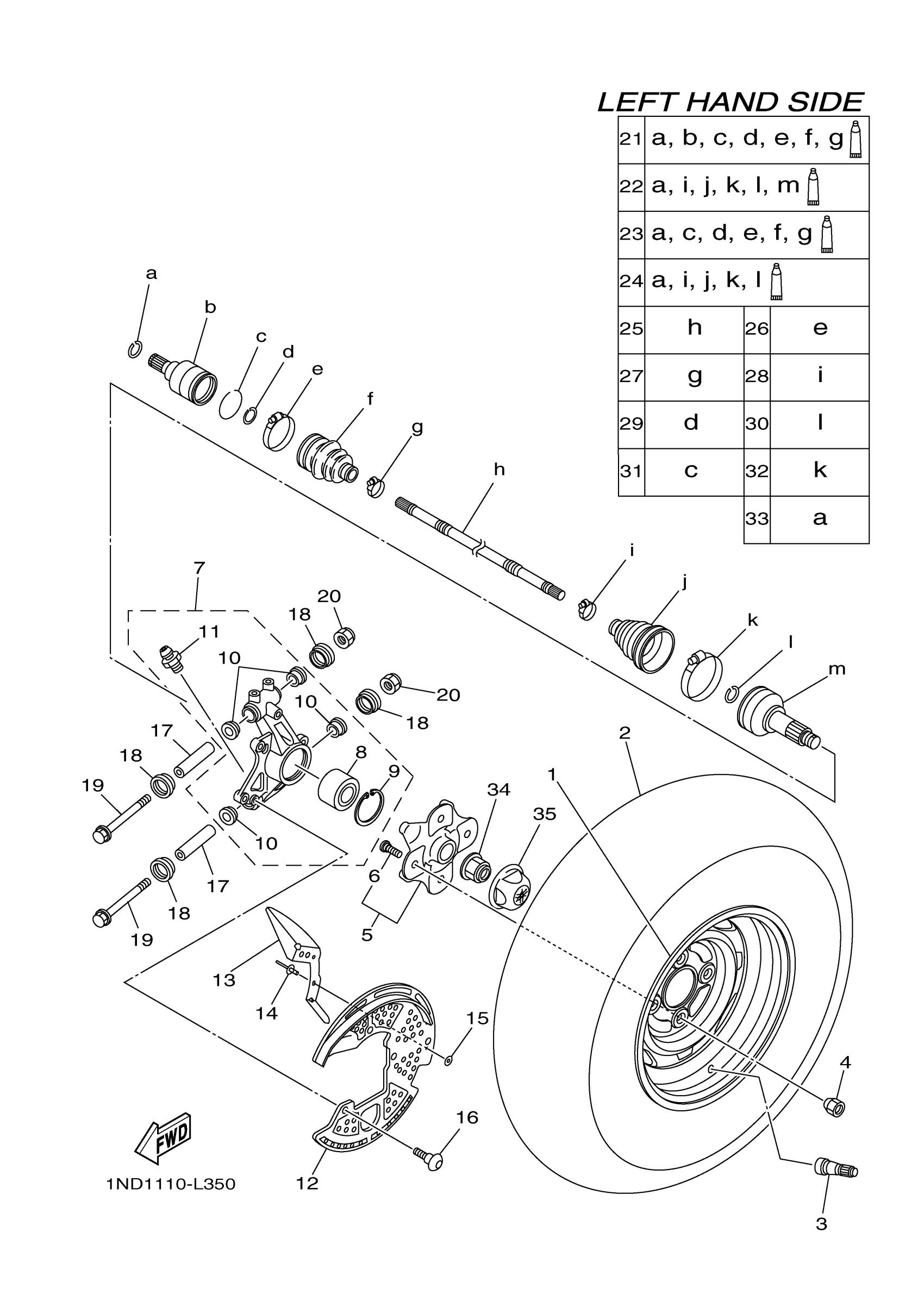

Yamaha YFM7FGBL (GRIZZLY 700 4WD) 1ND10 2012 REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR

1ND-F5390-09-00

Unavailable

2

AT25X10.00-12 MU20

94110-12814-00

$237.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT

90179-10020-00

$5.60

5

HUB ASSY 2

B16-F510D-03-00

$47.99

6

BOLT, SERRATION

90114-10014-00

$7.49

7

REAR KNUCKLE ASSY

2BG-F530F-01-00

$151.99

8

BEARING

93305-00602-00

$101.99

9

CIRCLIP

99009-55500-00

$9.49

10

BUSH, SOLID(2NL)

90381-17067-00

$11.49

11

NIPPLE, GREASE

93700-06M03-00

Unavailable

12

RING, WHEEL 1 (LEFT)

3B4-2514A-00-00

$16.49

13

PLATE 1

3B4-2539F-00-00

$24.99

14

RIVET, BLIND(8CH)

90267-47187-00

$2.34

15

WASHER, PLATE

90201-04027-00

$3.02

16

SCREW

90149-06117-00

Unavailable

17

SPACER

5KM-23448-00-00

Unavailable

18

COVER, THRUST 1

3JN-23517-00-00

Unavailable

19

BOLT, FLANGE

90105-10212-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

Unavailable

21

DOUBLE OFF SET JOI

28P-2530V-10-00

Unavailable

22

BALL JOINT SET

28P-2510F-10-00

Unavailable

23

BOOT SET(DOUBLE OF

28P-2510H-10-00

Unavailable

24

BOOT SET (BALL JOI

28P-2510G-10-00

Unavailable

25

SHAFT

28P-2518E-10-00

Unavailable

26

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

27

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

28

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

29

SNAP RING

3B4-2512J-00-00

Unavailable

30

CIRCLIP

3B4-2512H-00-00

Unavailable

31

CIRCLIP

3B4-25182-00-00

Unavailable

32

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

33

CLIP, SPRING

3B4-2536E-00-00

Unavailable

34

NUT

90179-20016-00

Unavailable

35

CAP, WHEEL

1HP-F512A-00-00

Unavailable
