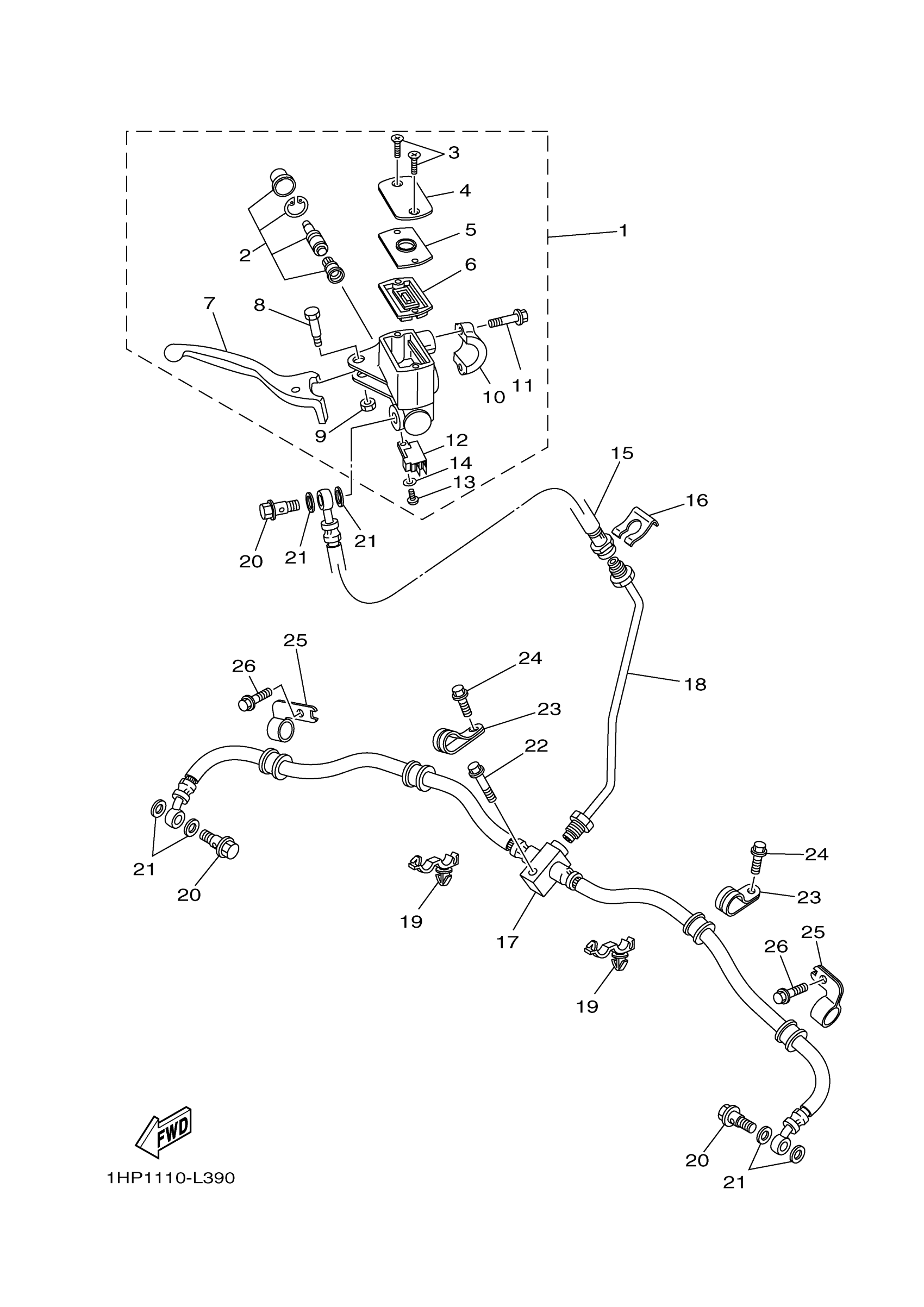

Yamaha YFM7FGBL (GRIZZLY 700 4WD) 1ND10 2012 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER ASSY

3B4-2583T-13-00

Unavailable

2

CYLINDER KIT, MASTER

5HH-W0041-00-00

$41.99

3

SCREW, FLAT

98707-04012-00

$2.18

4

CAP, RESERVOIR

5YU-25852-00-00

$36.99

5

PLATE, DIAPHRAGM

3B4-2585B-00-00

$10.99

6

DIAPHRAGM, RESERVOIR

4TT-25854-00-00

$18.49

7

LEVER 2

3B4-83922-00-00

Unavailable

8

BOLT, LEVER

3B4-2589F-00-00

Unavailable

9

NUT, FLANGE(7NB)

95780-06500-00

$2.60

10

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

11

BOLT, FITTING

5MV-25833-00-00

$6.99

12

FRONT STOP SWITCH ASSY

1HP-83980-03-00

$31.99

13

SCREW, PAN HEAD

98511-04012-00

Unavailable

14

WASHER, PLAIN (646)

92990-04600-00

$5.99

15

HOSE, BRAKE 1

1HP-F5872-00-00

$25.99

16

CIRCLIP

2GU-25866-00-00

Unavailable

17

HOSE, BRAKE 2

1HP-F5873-01-00

Unavailable

18

PIPE, BRAKE

1HP-F5871-00-00

Unavailable

19

CLAMP

90464-20010-00

Unavailable

20

BOLT, UNION

90401-10015-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

BOLT, FLANGE

95817-06025-00

Unavailable

23

HOLDER, BRAKE HOSE

3B4-25886-00-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable

25

HOLDER, BRAKE HOSE 2

3B4-25876-10-00

Unavailable

26

BOLT, FLANGE

95817-06012-00

Unavailable
