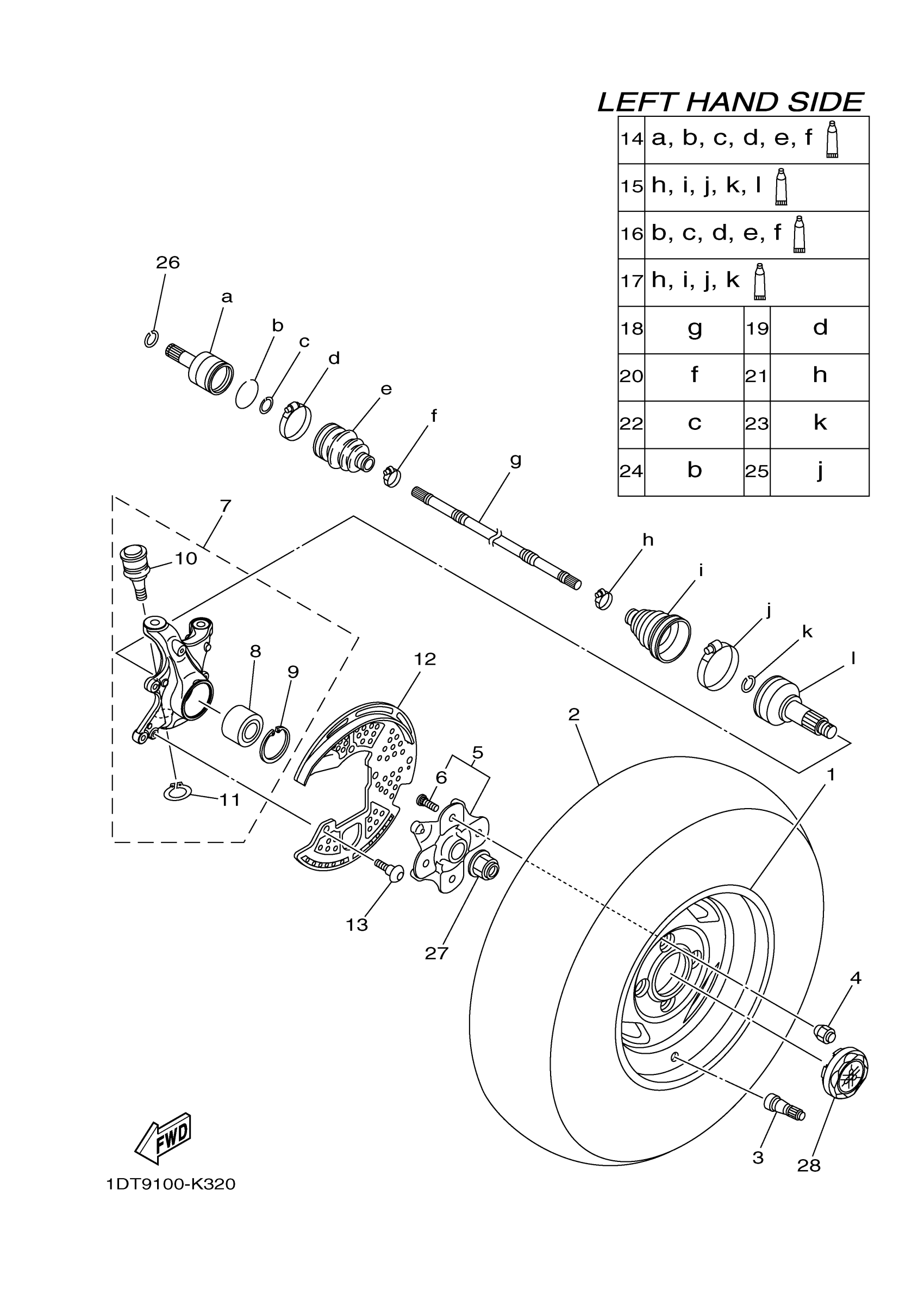

Yamaha YFM7FGAL (GRIZZLY 700 4WD) 5C0M 2011 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

1HP-F5180-A0-00

Unavailable

2

AT25X8.00-12 MU19

94108-12817-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

NUT

90179-10032-00

$11.05

5

HUB ASSY 2

B16-F510D-03-00

$46.16

6

BOLT, SERRATION

90114-10014-00

$2.70

7

STEERING KNUCKLE ASSY (LEFT)

1DT-23501-00-00

$378.42

8

BEARING

93305-00602-00

$97.33

9

CIRCLIP

99009-55500-00

$6.76

10

BALL JOINT 2

3B4-23579-01-00

$70.02

11

CIRCLIP(4A6)

99009-30400-00

$6.11

12

RING, WHEEL 1 (LEFT)

3B4-2514A-00-00

$12.21

13

SCREW

90149-06117-00

$5.03

14

DOUBLE OFF SET JOI

28P-2510J-02-00

$282.35

15

BALL JOINT SET

28P-2510F-05-00

$495.65

16

BOOT SET(DOUBLE OF

28P-2510H-03-00

Unavailable

17

BOOT SET (BALL JOI

28P-2510G-02-00

Unavailable

18

SHAFT

28P-2518E-00-00

Unavailable

19

BOOT BAND(DOUBLE OFFSET JOINT)

3B4-2511H-00-00

Unavailable

20

BOOT BAND (SMALL)

3B4-2512G-00-00

Unavailable

21

BOOT BAND (SMALL)

28P-2512G-00-00

Unavailable

22

SNAP RING

3B4-2512J-00-00

Unavailable

23

CIRCLIP

3B4-2512H-00-00

Unavailable

24

CIRCLIP

3B4-25182-00-00

Unavailable

25

BOOT BAND(DOUBLE OFFSET JOINT)

28P-2511H-00-00

Unavailable

26

CIRCLIP(2HR)

93450-22119-00

Unavailable

27

NUT

90179-20016-00

Unavailable

28

WHEEL CAP ASSY.

5UG-F530B-00-00

Unavailable
