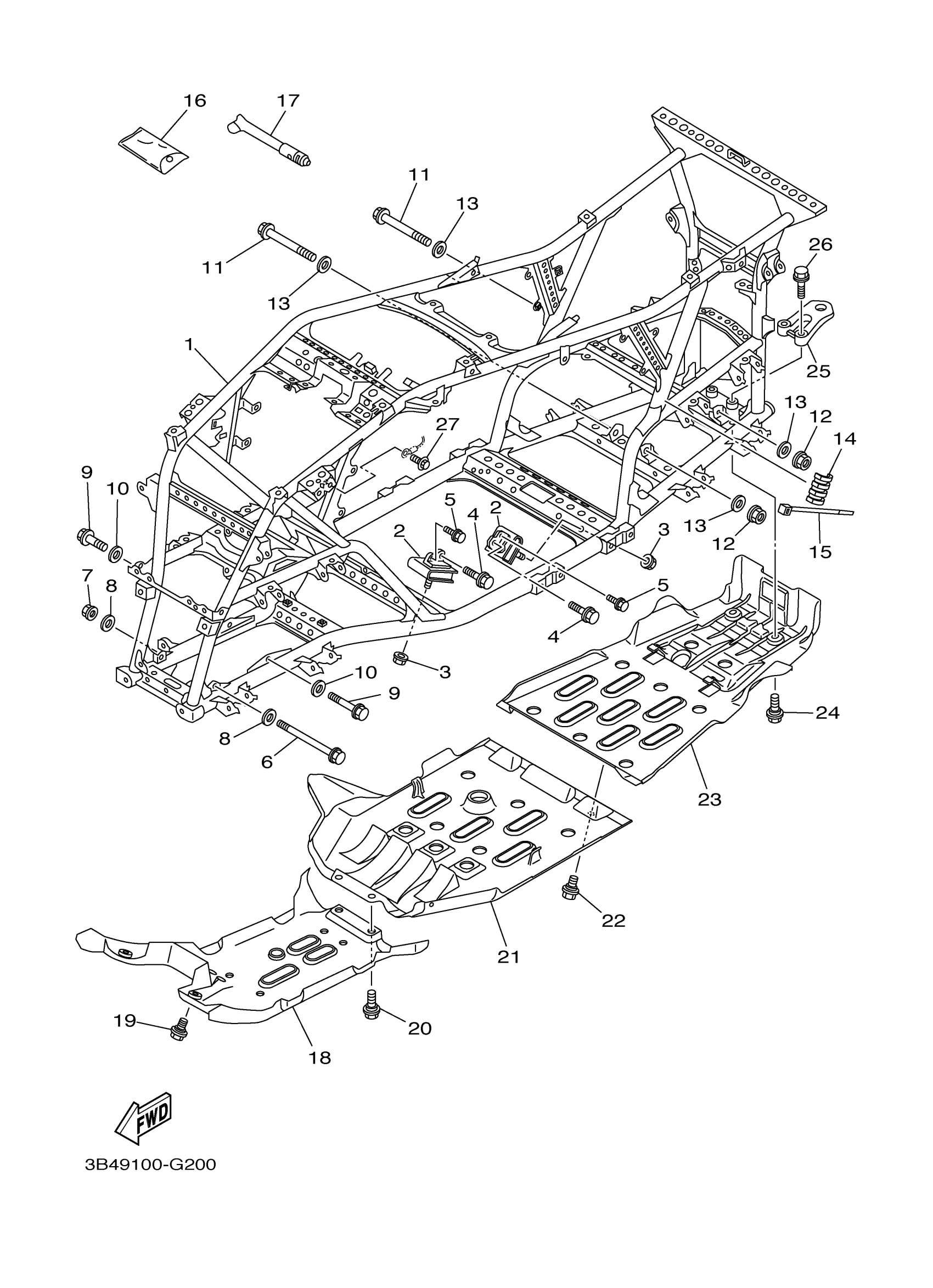

Yamaha YFM7FGAL (GRIZZLY 700 4WD) 5C0M 2011 FRAME Diagram

#

Description
Price

1

FRAME COMPLETE

1HP-F1110-B9-00

Unavailable

2

DAMPER, RUBBER 1

3B4-21485-01-00

$38.39

3

NUT, S/L FLANGE

95602-10200-00

$2.14

4

BOLT, FLANGE

95812-10035-00

$4.66

5

BOLT, FLANGE(2UJ)

95024-06016-00

$6.22

6

BOLT, FLANGE

90105-10219-00

$5.36

7

NUT, SELF-LOCKING

90185-10011-00

$3.67

8

WASHER, PLATE

90201-10035-00

$3.33

9

BOLT, FLANGE

95817-10030-00

$5.75

10

WASHER, PLATE

90201-10035-00

$3.33

11

BOLT, FLANGE

90105-10238-00

$6.06

12

NUT, SELF-LOCKING

90185-10011-00

$3.67

13

WASHER, PLATE

90201-10035-00

$3.33

14

DAMPER

3B4-2113B-01-00

$16.41

15

CLAMP(3XW)

90464-35132-00

$6.77

16

TOOL KIT

28P-28100-01-00

Unavailable

17

GAUGE, AIR

1NV-2811A-01-00

Unavailable

18

GUARD, ENGINE 1

1HP-F147A-01-00

Unavailable

19

BOLT

90109-06202-00

Unavailable

20

BOLT

90109-06214-00

Unavailable

21

GUARD, ENGINE 2

1HP-F147E-02-00

Unavailable

22

BOLT

90109-06214-00

Unavailable

23

GUARD, ENGINE 3

1HP-F147F-01-00

Unavailable

24

BOLT

90109-06202-00

Unavailable

25

HOOK

1HP-F8488-00-00

Unavailable

26

BOLT, FLANGE

95812-10035-00

$4.66

27

BOLT, FLANGE

95817-06012-00

Unavailable
