Description

Price

1

JOINT, CARBURETOR 1

3B4-13586-00-00

$69.99

2

HOSE CLAMP ASSY

90450-72004-00

$18.99

3

CASE,AIR CLEANER 1

1HP-E4411-00-00

$74.99

4

CAP ASSY, AIR CLEANER

3B4-14402-03-00

$70.99

5

JOINT, AIR CLEANER 1

3B4-14453-00-00

$38.99

6

ELEMENT, AIR CLEAN

1HP-E4451-01-00

Unavailable

7

PLATE, ELEMENT

1HP-E4472-00-00

$14.49

8

SEAL

3B4-14457-00-00

$16.49

9

DAMPER

3B4-14409-00-00

$6.99

10

CLIP, CAP FITTING

3B4-14424-00-00

$7.99

11

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

12

SCREW, PANHEAD TAPPING

97702-50520-00

$0.43

13

SEAL

59V-14457-00-00

$6.99

14

CLIP

90467-220A1-00

$5.60

15

TUBE, FLEXIBLE VINYL (L200)

91A20-07020-00

Unavailable

16

CLIP

90467-100A1-00

Unavailable

17

PLUG (1HX)

90338-08174-00

Unavailable

18

HOSE CLAMP ASSY

90450-59005-00

Unavailable

19

BAND

3B4-14455-00-00

Unavailable

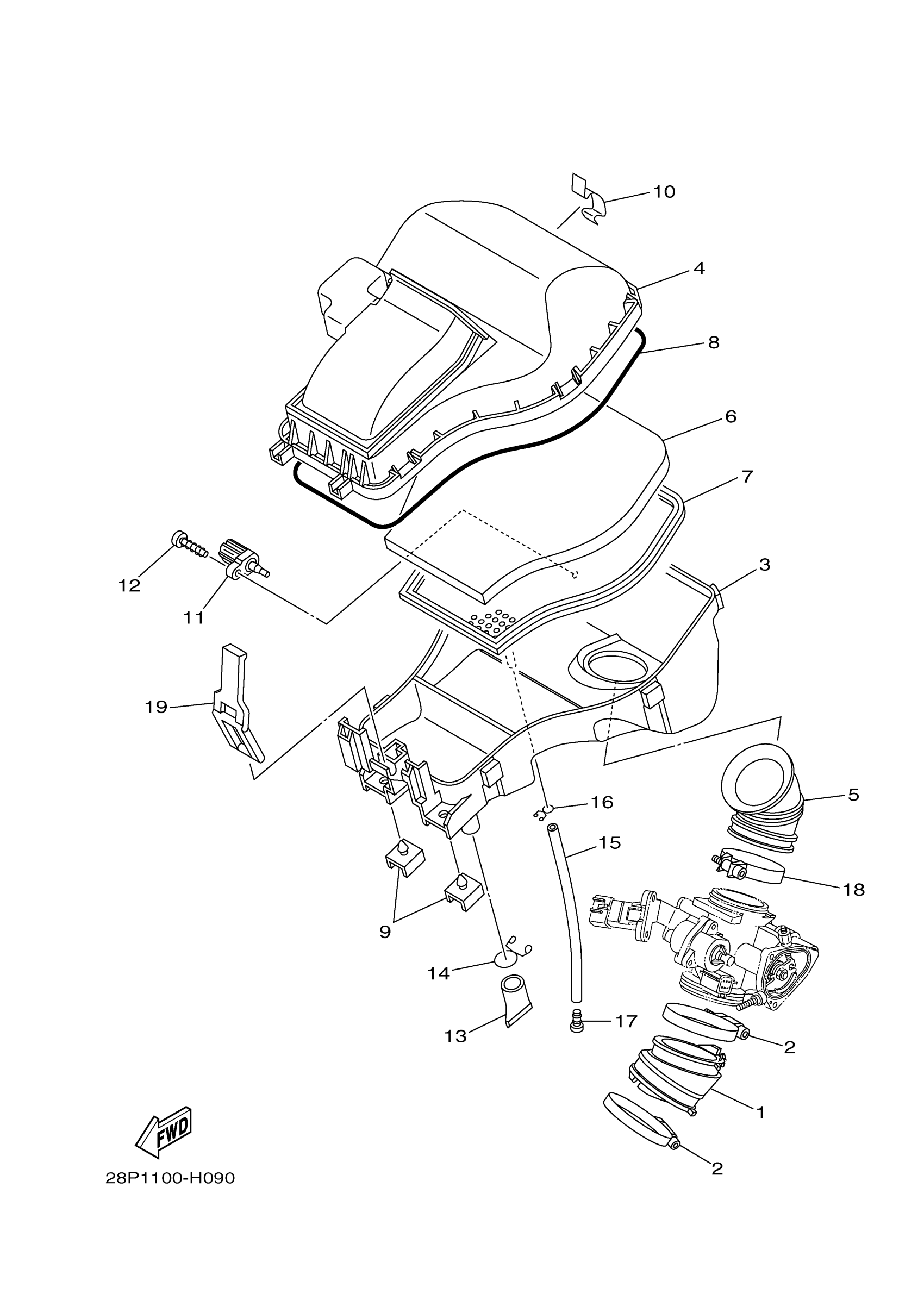

Yamaha YFM7FGAGR (GRIZZLY 700 4WD) 5C0J 2011 INTAKE Diagram

JOINT, CARBURETOR 1

HOSE CLAMP ASSY

CASE,AIR CLEANER 1

CAP ASSY, AIR CLEANER

JOINT, AIR CLEANER 1

ELEMENT, AIR CLEAN

PLATE, ELEMENT

SEAL

DAMPER

CLIP, CAP FITTING

SENSOR, AIR TEMPERATURE

SCREW, PANHEAD TAPPING

SEAL

CLIP

TUBE, FLEXIBLE VINYL (L200)

CLIP

PLUG (1HX)

HOSE CLAMP ASSY

BAND
