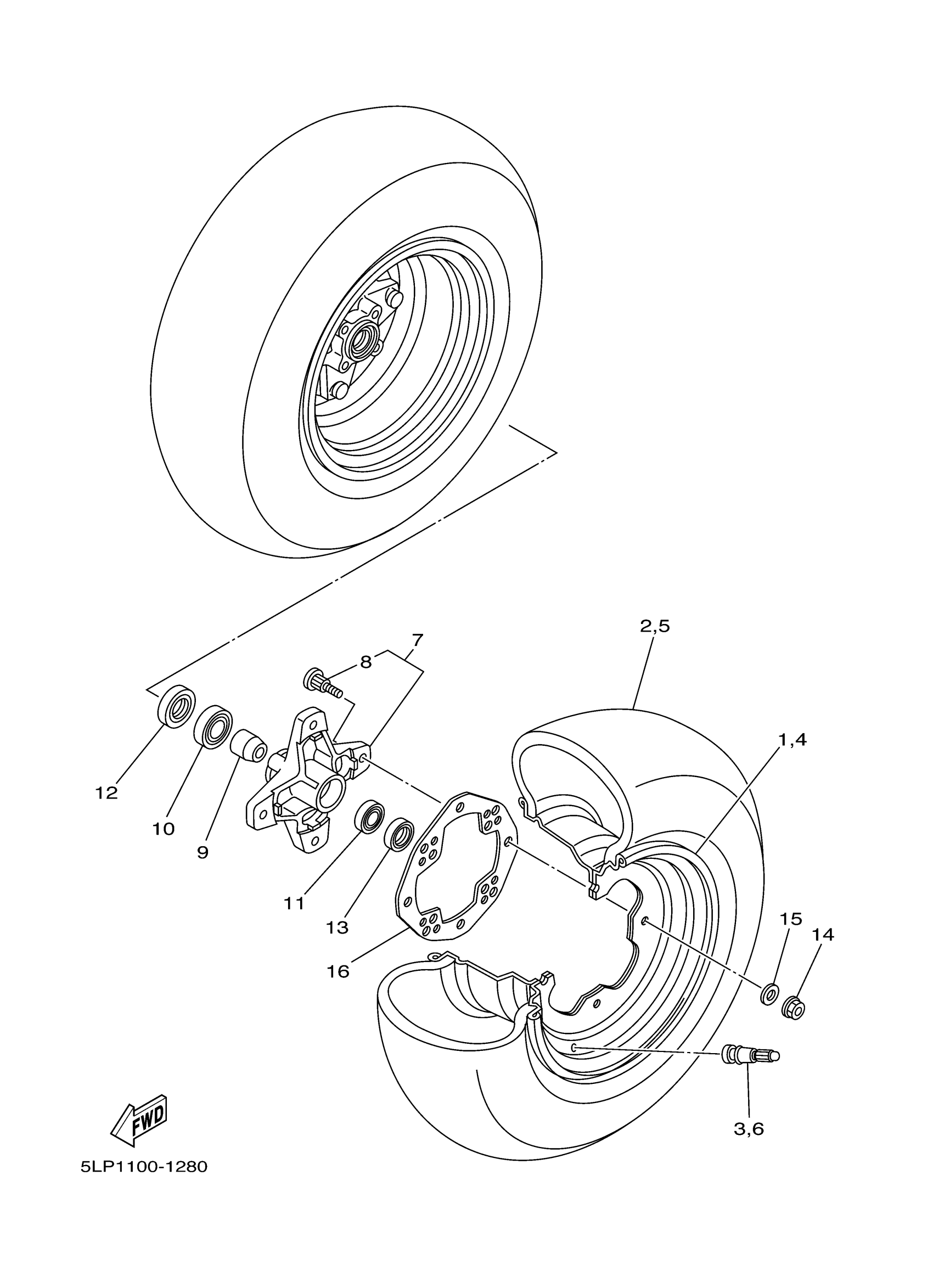

Yamaha YFM70RYW (RAPTOR 700 R) 1S3L0 2009 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

5LP-F5180-29-00

$274.99

2

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL,FRONT

5LP-F5180-29-00

$274.99

5

TIRE (AT21X7R10 KT341 T/L N)

94107-10015-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

HUB, FRONT

1PE-F5111-00-00

$141.99

8

BOLT, SERRATION

90114-10006-00

$5.60

9

SPACER, BEARING

5LP-25117-00-00

$17.49

10

BEARING

93306-00446-00

$43.99

11

. BEARING

93306-20231-00

Unavailable

12

OIL SEAL(1UY)

93105-26026-00

$12.49

13

OIL SEAL (7H5)

93102-22216-00

$11.49

14

NUT, FLANGE(3BM)

95704-10500-00

$4.29

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

COVER, PLATE

1S3-25127-01-00

Unavailable
