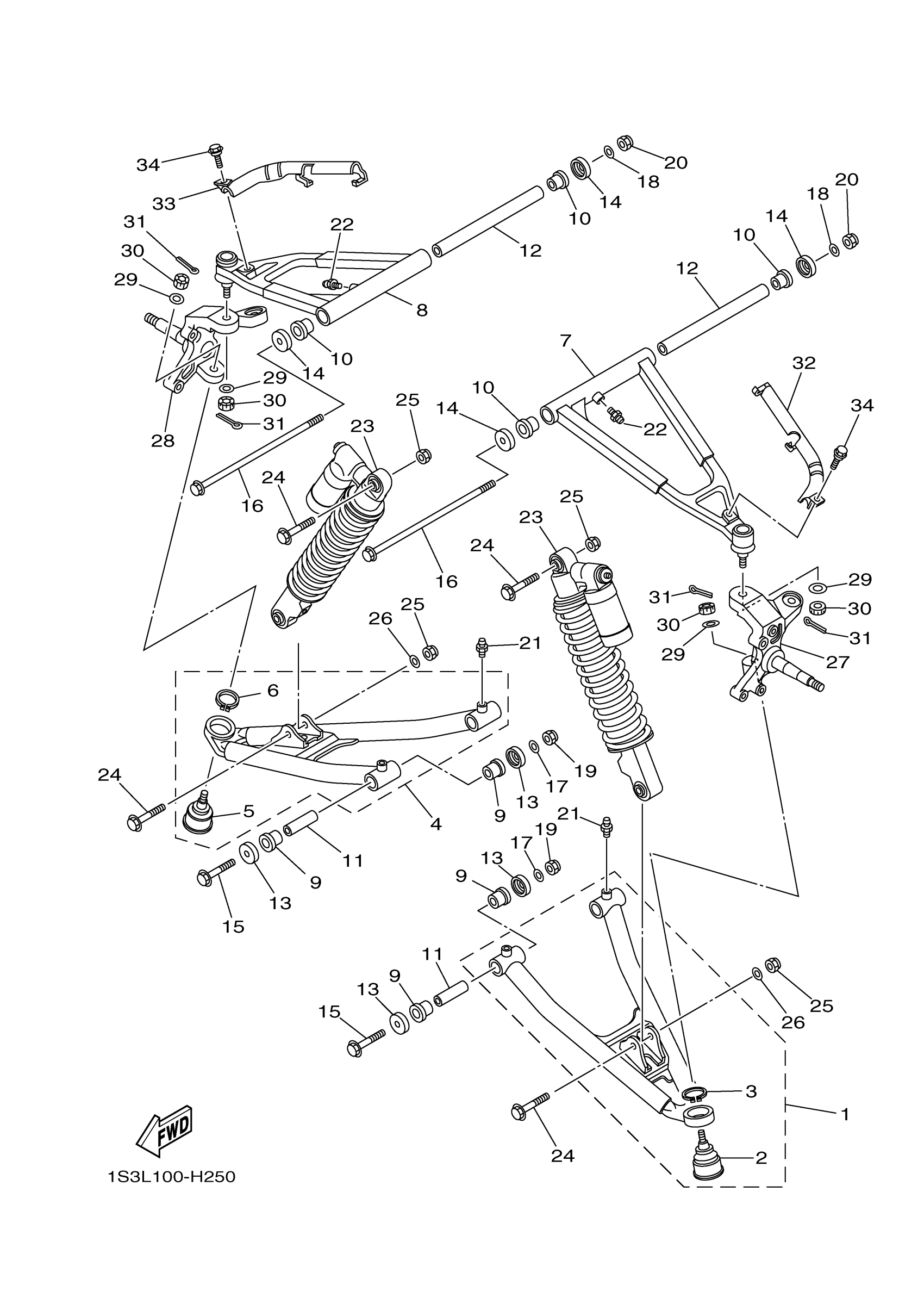

Yamaha YFM70RYW (RAPTOR 700 R) 1S3L0 2009 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT LOWER ARM COMP. (LEFT)

5TG-23570-01-00

Unavailable

2

BALL JOINT

5LP-23579-00-00

$65.99

3

CIRCLIP(4A6)

99009-30400-00

$8.49

4

FRONT LOWER ARM COMP. (RIGHT)

5TG-23580-01-00

Unavailable

5

BALL JOINT

5LP-23579-00-00

$65.99

6

CIRCLIP(4A6)

99009-30400-00

$8.49

7

FRONT UPPER ARM COMP. (LEFT)

5TG-23540-02-00

Unavailable

8

FRONT UPPER ARM COMP. (RIGHT)

5TG-23550-02-00

Unavailable

9

BUSH, SOLID(3GG)

90381-15088-00

$21.99

10

BUSH, SOLID(3GG)

90381-15088-00

$21.99

11

COLLAR(1UY)

90387-101R3-00

$19.99

12

COLLAR(3GG)

90387-100Y6-00

$33.99

13

COVER, THRUST 1

1UY-23517-01-00

$6.99

14

COVER, THRUST 1

1UY-23517-01-00

$6.99

15

BOLT, FLANGE

90105-10135-00

$5.60

16

BOLT, WASHER BASED(3GG)

90105-10651-00

Unavailable

17

WASHER, PLATE

90201-10037-00

Unavailable

18

WASHER, PLATE

90201-10037-00

Unavailable

19

NUT, SELF-LOCKING

90185-10012-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

Unavailable

21

NIPPLE, GREASE

93700-06M03-00

Unavailable

22

NIPPLE, GREASE

93700-06M03-00

Unavailable

23

SHOCK ABSORBER ASSY

1S3-23350-D2-00

Unavailable

24

BOLT, FLANGE

90105-10131-00

Unavailable

25

NUT, SELF-LOCKING

90185-10012-00

Unavailable

26

WASHER, PLATE

90201-10035-00

Unavailable

27

STEERING KNUCKLE ASSY (LEFT)

1S3-23501-01-00

Unavailable

28

STEERING KNUCKLE ASSY (RIGHT)

1S3-23502-01-00

Unavailable

29

WASHER (25G)

90209-10229-00

Unavailable

30

NUT, CASTLE

90171-10001-00

Unavailable

31

PIN, COTTER

91490-20025-00

Unavailable

32

HOLDER, BRAKE HOSE 1

5TG-25875-00-00

Unavailable

33

HOLDER, BRAKE HOSE 2

5TG-25876-00-00

Unavailable

34

BOLT(4EW)

90109-067F4-00

Unavailable
