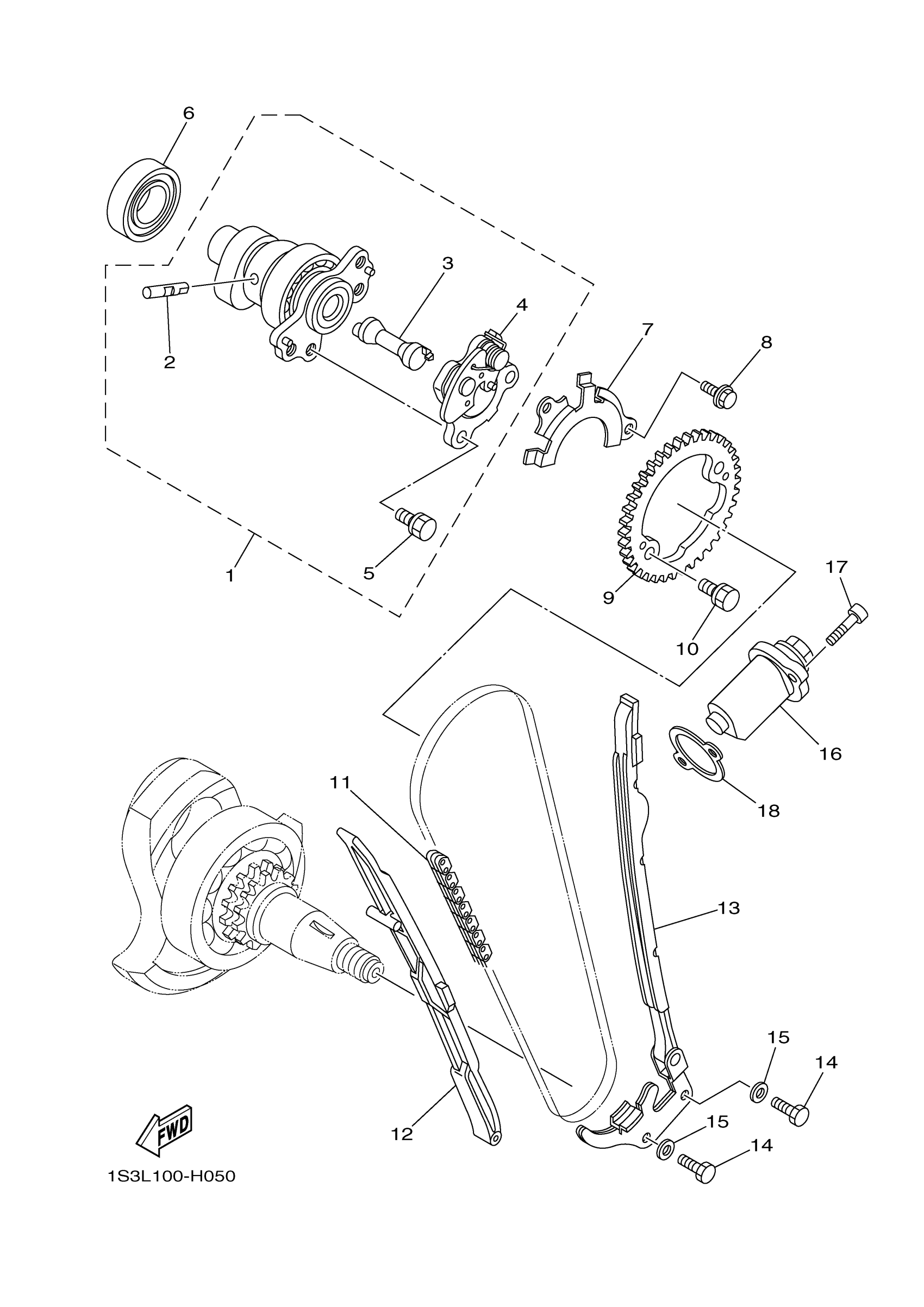

Yamaha YFM70RYW (RAPTOR 700 R) 1S3L0 2009 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

1S3-12170-10-00

Unavailable

2

PIN, DECOMPRESSION LEVER

5VK-12284-00-00

$17.91

3

LEVER, DECOMPRESSION SPRING

1S3-12290-00-00

$50.91

4

DECOMPRESSION ASSY

1S3-12280-01-00

$89.25

5

BOLT, FLANGE

90105-07004-00

$4.66

6

BEARING

93306-07209-00

$35.37

7

PLATE

5VK-1111F-00-00

$12.53

8

BOLT, FLANGE

95022-06012-00

$2.80

9

SPROCKET, CAM CHAIN

1S3-12176-00-00

$61.55

10

BOLT, FLANGE

90105-07004-00

$4.66

11

CHAIN

94591-57126-00

$32.67

12

GUIDE, STOPPER 1

5VK-12231-00-00

$36.01

13

GUIDE, STOPPER 2

1S3-12241-01-00

$37.91

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

15

WASHER, PLAIN (646)

92990-06600-00

$2.80

16

TENSIONER ASSY, CAM CHAIN

3TB-12210-00-00

Unavailable

17

BOLT,SOCKET

91317-06025-00

Unavailable

18

GASKET, TENSIONER CASE

4DW-12213-00-00

Unavailable
