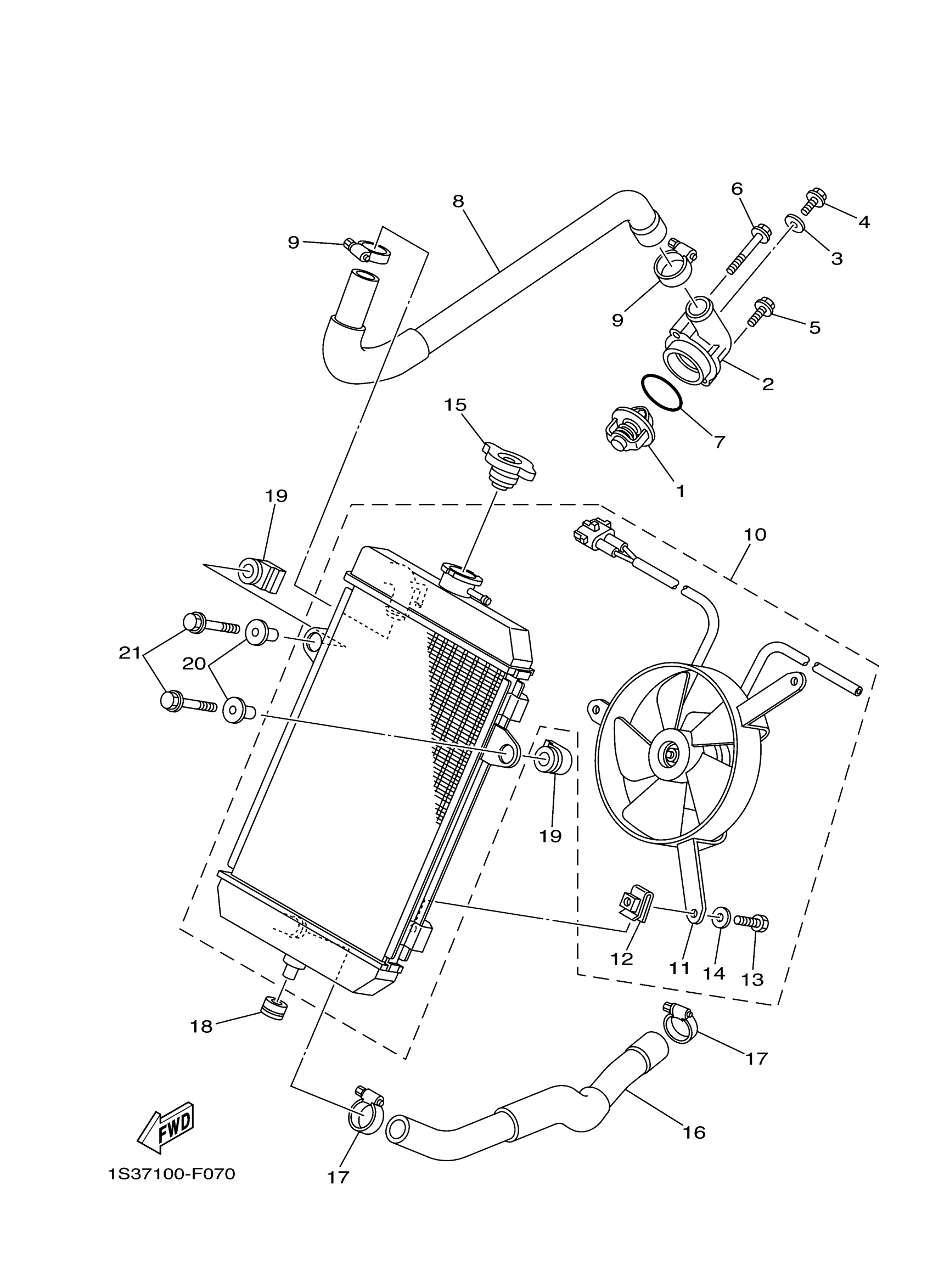

Yamaha YFM70RYRW (RAPTOR 700 GYTR EDITION) 1S3D 2007 RADIATOR HOSE Diagram

#

Description
Price

1

THERMOSTAT ASSY

5VK-12410-01-00

$31.99

2

COVER, THERMOSTAT

1S3-12413-00-00

Unavailable

3

GASKET 256113960000

90430-06014-00

Unavailable

4

BOLT, FLANGE

95022-06010-00

$5.60

5

BOLT, FLANGE

95022-06020-00

$3.62

6

BOLT, FLANGE

95022-06045-00

$4.29

7

O-RING (132)

93210-41042-00

$7.49

8

HOSE 3

1S3-12578-00-00

Unavailable

9

HOSE CLAMP ASSY

90450-32015-00

$17.99

10

YFM700R RADIATOR KIT

1PE-WE246-00-00

Unavailable

11

BLOWER ASSY

1S3-12405-00-00

$317.99

12

PLATE

1AA-12535-00-00

$14.49

13

BOLT(3JP)

97017-06010-00

$3.76

14

WASHER(6TA)

92907-06600-00

$2.72

15

CAP, RADIATOR

4FL-12462-00-00

$62.99

16

HOSE 4

1S3-12579-00-00

Unavailable

17

HOSE CLAMP ASSY

90450-32015-00

$17.99

18

GROMMET (13X)

90480-18330-00

Unavailable

19

DAMPER, RADIATOR

1S3-12465-00-00

Unavailable

20

COLLAR

90387-06166-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable
