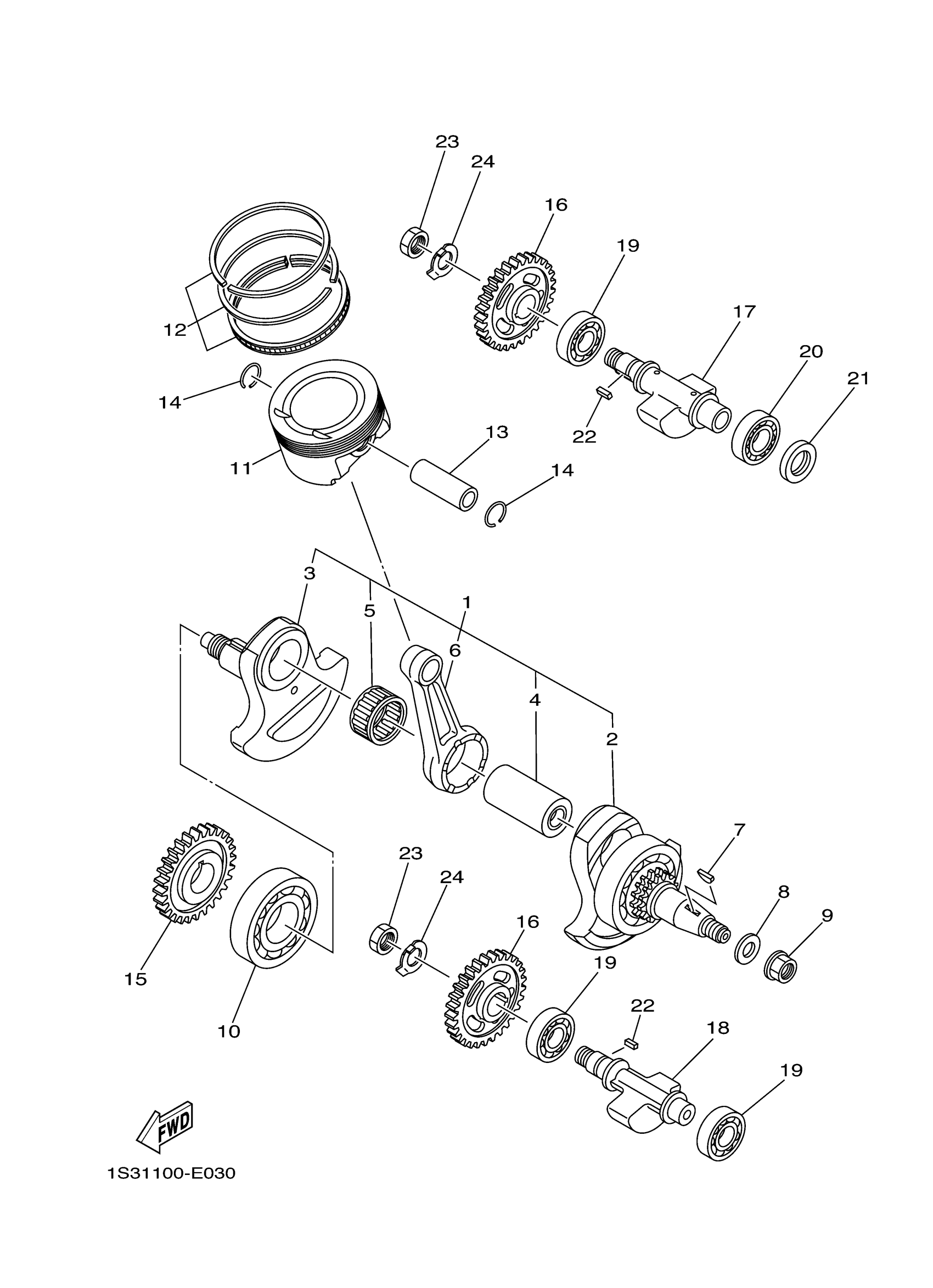

Yamaha YFM70RYRW (RAPTOR 700 GYTR EDITION) 1S3D 2007 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1PE-11400-01-00

Unavailable

2

CRANK SUB ASSY 1

1S3-11401-09-00

$425.28

3

CRANK 2

1S3-11422-00-00

$284.63

4

PIN, CRANK 1

1S3-11681-00-00

$88.69

5

BEARING

93310-84017-00

$91.41

6

ROD, CONNECTING

1S3-11651-00-00

$130.67

7

KEY, WOODRUFF

90280-05001-00

$10.68

8

WASHER, PLATE

90201-16013-00

$11.86

9

NUT

90179-16004-00

$13.69

10

BEARING

93306-30810-00

$65.73

11

PISTON (STD)

1S3-11631-10-00

$144.93

12

PISTON RING SET (STD)

1S3-11603-10-00

$51.87

13

PIN, PISTON

5VK-11633-00-00

$36.42

14

CIRCLIP

93450-24154-00

$2.86

15

GEAR, DRIVE

1S3-11536-00-00

Unavailable

16

GEAR, BALANCE WEIGHT

1S3-11531-00-00

$106.34

17

WEIGHT 1

1S3-11454-00-00

$124.33

18

WEIGHT 2

1S3-11464-00-00

$89.49

19

BEARING

93306-20481-00

$32.33

20

BEARING(1FF)

93306-00519-00

$31.24

21

OIL SEAL (5Y1)

93101-25106-00

$8.97

22

KEY, STRAIGHT 3531154600

90282-05005-00

$9.10

23

NUT, HEXAGON (30X)

90170-16326-00

$11.00

24

WASHER, LOCK (30X)

90215-16221-00

$9.60
