Description

Price

1

WHEEL,REAR

5LP-F5390-29-00

Unavailable

2

TIRE(AT20X10-R9 KT345 T/L N)

94110-09012-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL,REAR

5LP-F5390-29-00

Unavailable

5

TIRE(AT20X10-R9 KT345 T/L N)

94110-09012-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

8

BOLT, SERRATION

90114-10013-00

$7.49

9

NUT, FLANGE(3BM)

95704-10500-00

$4.29

10

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

11

WASHER, PLATE

90201-16023-00

$8.49

12

NUT, CASTLE

90171-16002-00

$20.99

13

PIN, COTTER

90252-03001-00

$1.96

14

COLLAR, SPROCKET AXLE

1S3-25386-00-00

$165.99

15

SPROCKET, DRIVEN (38T)

5TG-25438-10-00

$43.99

16

BOLT

90109-10013-00

Unavailable

17

NUT, SELF-LOCKING

90185-10011-00

Unavailable

18

AXLE, WHEEL

BFK-F5381-01-00

Unavailable

19

O-RING(2TY)

93210-36769-00

Unavailable

20

CHAIN

94582-13098-00

Unavailable

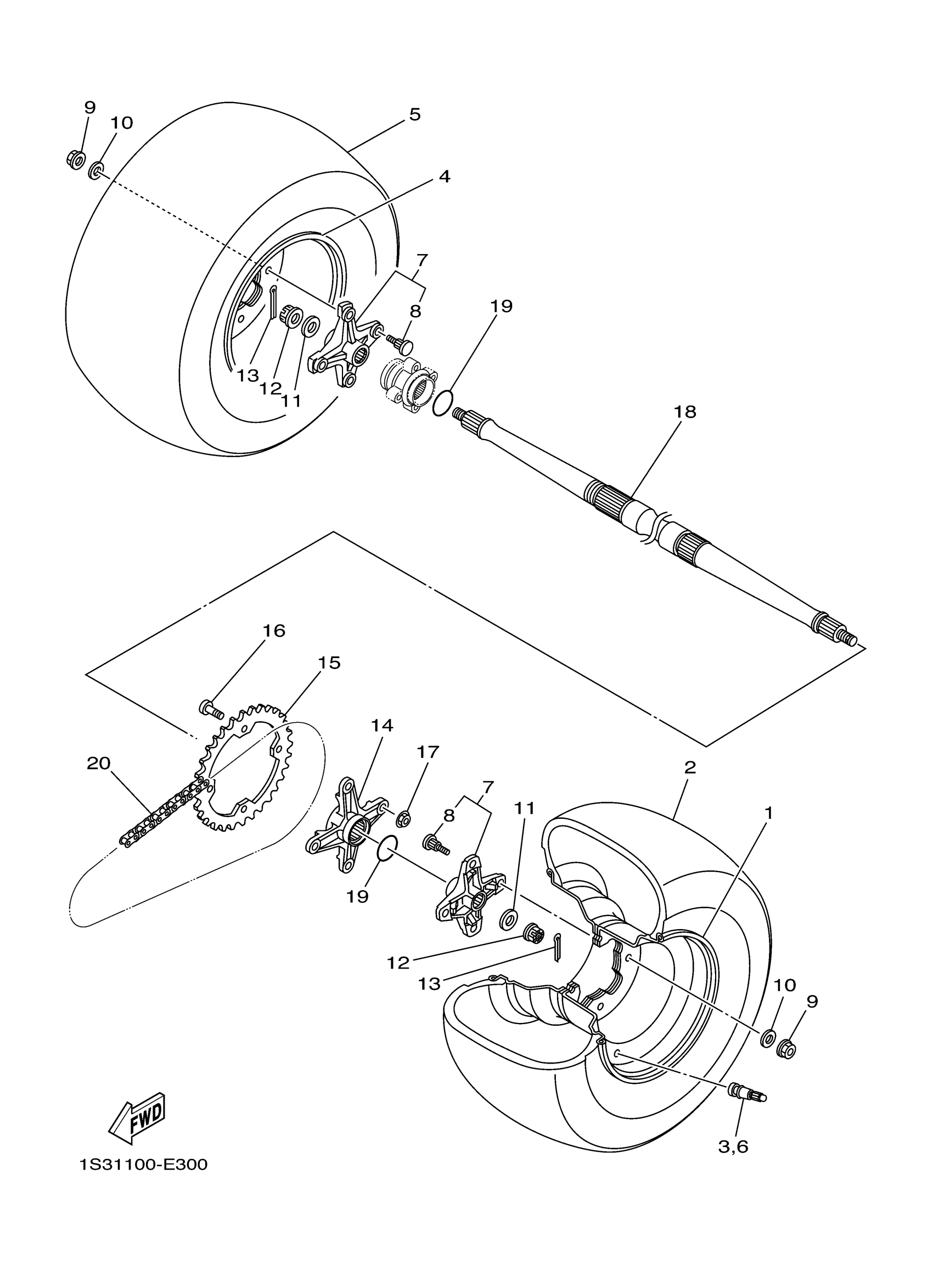

Yamaha YFM70RXL (RAPTOR 700) 1S3HO 2008 REAR WHEEL Diagram

WHEEL,REAR

TIRE(AT20X10-R9 KT345 T/L N)

VALVE, RIM(2GH)

WHEEL,REAR

TIRE(AT20X10-R9 KT345 T/L N)

VALVE, RIM(2GH)

WHEEL SHAFT COLLAR ASSY.

BOLT, SERRATION

NUT, FLANGE(3BM)

958-69527-00 WASHER, PLAIN

WASHER, PLATE

NUT, CASTLE

PIN, COTTER

COLLAR, SPROCKET AXLE

SPROCKET, DRIVEN (38T)

BOLT

NUT, SELF-LOCKING

AXLE, WHEEL

O-RING(2TY)

CHAIN
