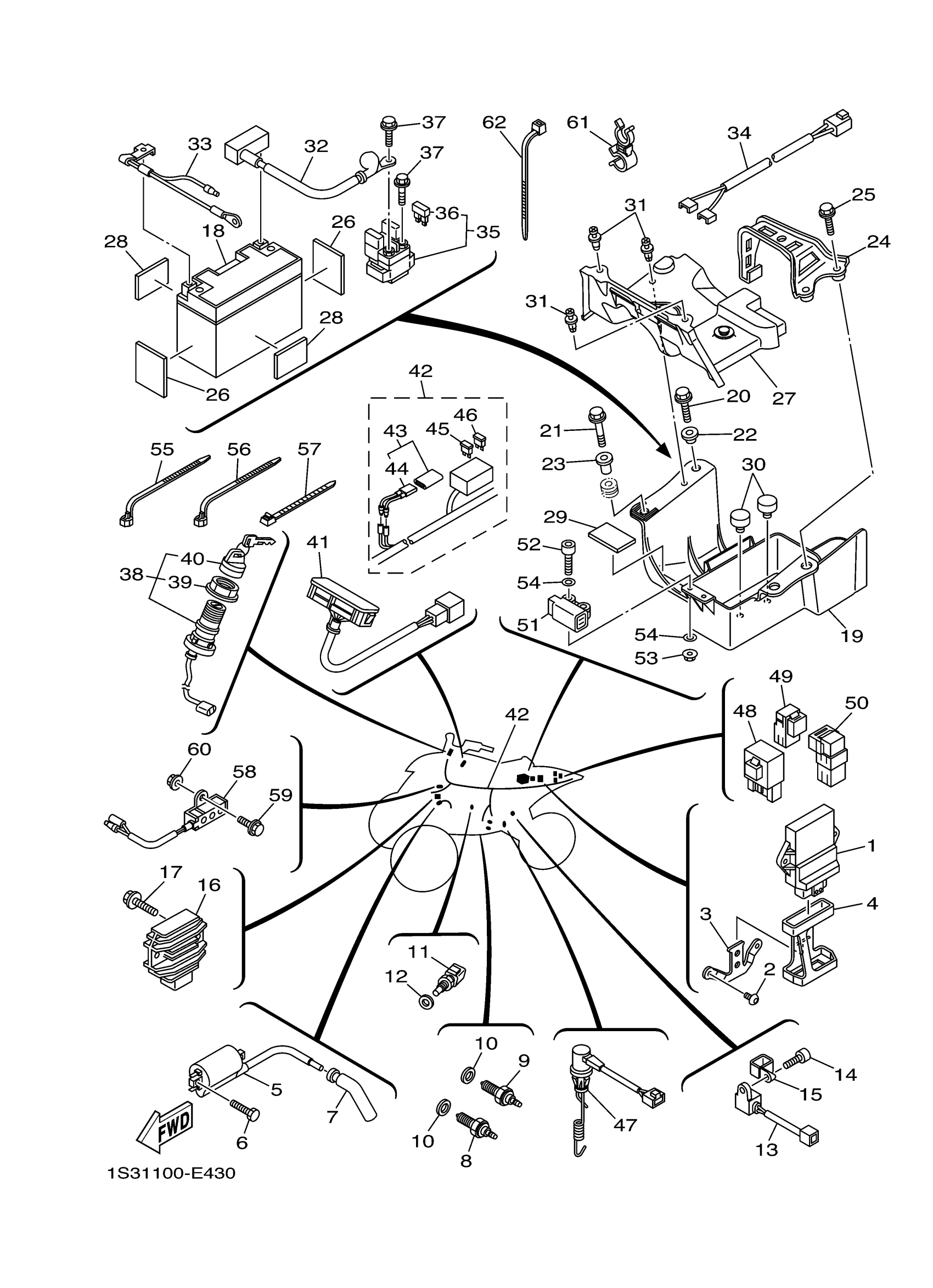

Yamaha YFM70RXL (RAPTOR 700) 1S3HO 2008 ELECTRICAL 1 Diagram

#

Description
Price

1

Engine Control Unit Assembly

1S3-8591A-01-00

$914.99

2

BOLT, BUTTON HEAD

92012-06010-00

$4.30

3

BRACKET, C.D.I. UNIT

1S3-21274-00-00

Unavailable

4

BAND

1S3-85546-00-00

$25.99

5

IGNITION COIL ASSY

4DN-82320-01-00

$111.99

6

BOLT(3JK)

97027-05020-00

$3.29

7

PLUG CAP ASSY

5VK-82370-00-00

$62.99

8

NEUTRAL SWITCH ASSY

5LP-82540-01-00

$37.99

9

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

10

GASKET (1KH,1.0T)

90430-10148-00

$5.60

11

THERMOSENSOR ASSY

5PS-85790-00-00

$85.99

12

GASKET(2GH)

90430-12202-00

$9.49

13

SENSOR, SPEED

1S3-83755-02-00

$126.99

14

BOLT(3MA)

91312-06016-00

$5.60

15

CLAMP

90461-10004-00

Unavailable

16

RECTIFIER & REGULATOR ASSY

5BN-81960-00-00

Unavailable

17

BOLT, FLANGE

95822-06025-00

Unavailable

18

YT9BB-S YUASA BATTERY - SA

YT9-BBS00-00-00

Unavailable

19

BOX, BATTERY 1

1S3-8212B-00-00

Unavailable

20

BOLT, FLANGE

90105-06084-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable

22

COLLAR

90387-06153-00

Unavailable

23

COLLAR

90387-06168-00

Unavailable

24

BRACKET, BATTERY

1S3-82128-00-00

Unavailable

25

BOLT, FLANGE

95817-06020-00

Unavailable

26

SEAT, BATTERY

1S3-82123-00-00

Unavailable

27

COVER, BATTERY

1S3-82129-00-00

Unavailable

28

SEAT, BATTERY

1S3-82122-00-00

Unavailable

29

DAMPER

22F-2139X-00-00

Unavailable

30

PAD, BATTERY

5TG-82121-10-00

Unavailable

31

RIVET

90269-06002-00

Unavailable

32

WIRE, PLUS LEAD

1S3-82115-00-00

Unavailable

33

WIRE, MINUS LEAD

1S3-82116-10-00

Unavailable

34

WIRE, LEAD

1S3-82541-00-00

Unavailable

35

STARTER RELAY ASSY (2768106-A)

1S3-81940-00-00

Unavailable

36

FUSE (20A)

2GV-82151-00-00

Unavailable

37

BOLT, FLANGE

95022-06008-00

Unavailable

38

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

39

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

40

CAP, KEY

3HN-82579-00-00

Unavailable

41

PILOT LIGHT ASSY

1S3-83530-01-00

Unavailable

42

WIRE HARNESS ASSY

1S3-82590-10-00

Unavailable

43

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

44

THERMO SWITCH ASSY

5GT-82560-00-00

Unavailable

45

FUSE (15A)

67F-82151-50-00

Unavailable

46

. FUSE (10A)

67F-82151-40-00

Unavailable

47

STOP SWITCH ASSY

1S3-82530-11-00

Unavailable

48

RELAY ASSY

5VK-81950-33-00

Unavailable

49

RELAY ASSY (5EA-02)

5EA-81950-20-00

Unavailable

50

RELAY ASSY

5DM-81950-01-00

Unavailable

51

SENSOR, LEAN ANGLE

5PS-82576-02-00

Unavailable

52

BOLT

91312-04025-00

Unavailable

53

NUT, FLANGE

95707-04500-00

Unavailable

54

WASHER, PLATE

90201-04030-00

Unavailable

55

CLAMP

90464-13077-00

Unavailable

56

CLAMP(4FM)

90464-15195-00

Unavailable

57

CLAMP (6E5)

90465-13M11-00

Unavailable

58

RESISTOR ASSY

1S3-85370-00-00

Unavailable

59

BOLT, FLANGE

95817-06016-00

Unavailable

60

NUT, FLANGE

95702-06500-00

Unavailable

61

CLAMP

90464-16013-00

Unavailable

62

CLAMP

90465-10098-00

Unavailable
