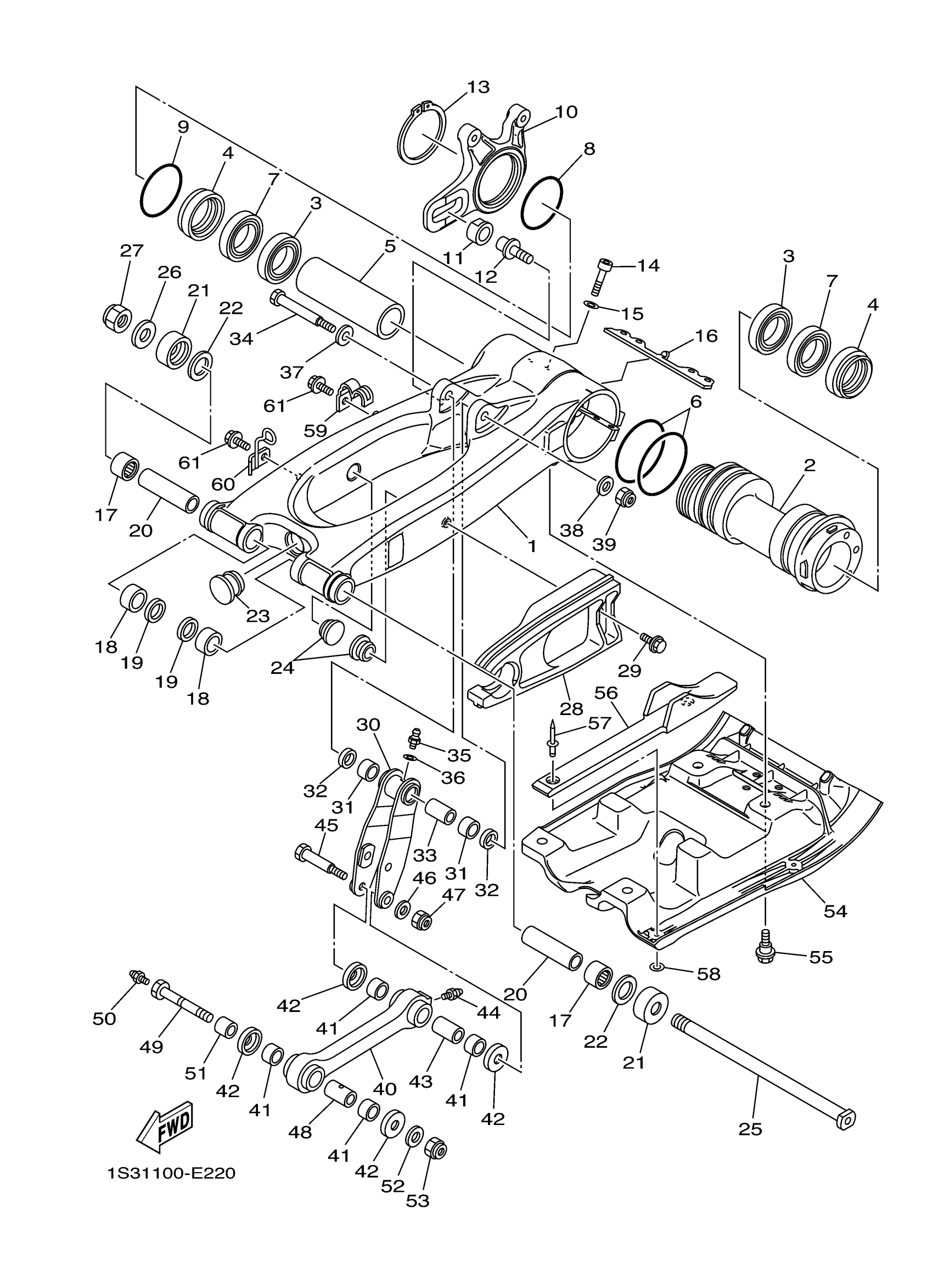

Yamaha YFM70RW (RAPTOR 700) 1S37 2007 REAR ARM Diagram
#
1
REAR ARM COMP.
1S3-22110-00-00
Unavailable
2
HUB, REAR
1S3-25311-01-00
Unavailable
10
BRACKET, CALIPER
1S3-25721-01-00
Unavailable
15
.. WASHER, PLATE
92990-08600-00
Unavailable
16
SEAL, DUST
1S3-22475-00-00
Unavailable
17
BEARING, CYLINDRICAL (23X)
93317-32231-00
Unavailable
18
BUSH, SOLID (23X)
90380-22111-00
Unavailable
19
OIL SEAL (23X)
93106-22019-00
Unavailable
20
BUSH
1S3-22184-00-00
Unavailable
21
COVER, THRUST 2
4X7-22129-00-00
Unavailable
22
WASHER
3YF-22149-00-00
Unavailable
23
PLUG
1S3-22417-00-00
Unavailable
24
PLUG
90338-23004-00
Unavailable
25
SHAFT, PIVOT
1S3-22141-00-00
Unavailable
26
WASHER, PLATE
90201-16018-00
Unavailable
27
NUT, SELF-LOCKING
90185-16002-00
Unavailable
28
SEAL, GUARD
1S3-22151-00-00
Unavailable
29
BOLT
90109-06172-00
Unavailable
30
ARM, RELAY
1S3-2217A-00-00
Unavailable
31
BUSH, FORMED(1RX)
90383-20033-00
Unavailable
32
OIL SEAL
93109-20076-00
Unavailable
33
COLLAR
90387-12021-00
Unavailable
34
BOLT
90109-10018-00
Unavailable
35
NIPPLE, GREASE
93700-06M03-00
Unavailable
36
WASHER, PLATE (J22)
90201-063F3-00
Unavailable
37
WASHER, PLATE
90201-12030-00
Unavailable
38
WASHER, PLATE
90201-10034-00
Unavailable
39
NUT, SELF-LOCKING
90185-10012-00
Unavailable
40
ROD, CONNECTING 1
1S3-2217F-00-00
Unavailable
41
BUSH, FORMED(1RX)
90383-20032-00
Unavailable
42
COVER, THRUST 2
5YT-22129-00-00
Unavailable
43
COLLAR(36Y)
90387-125K2-00
Unavailable
44
NIPPLE, GREASE
93700-06M03-00
Unavailable
45
BOLT
90109-10020-00
Unavailable
46
WASHER, PLATE
90201-10035-00
Unavailable
47
NUT, SELF-LOCKING
90185-10012-00
Unavailable
48
COLLAR
90387-12010-00
Unavailable
49
BOLT
90109-12009-00
Unavailable
50
NIPPLE, GREASE
93700-06M03-00
Unavailable
51
COLLAR
90387-12028-00
Unavailable
52
WASHER, PLATE
90201-12032-00
Unavailable
53
NUT, SELF-LOCKING
90185-12007-00
Unavailable
54
COVER
1S3-2219X-00-00
Unavailable
55
BOLT
90109-06199-00
Unavailable
56
GUARD, CHAIN
1S3-22153-00-00
Unavailable
57
RIVET, BLIND(8CH)
90267-47187-00
Unavailable
58
WASHER, PLATE
90201-04027-00
Unavailable
59
HOLDER, BRAKE HOSE
1S3-25886-00-00
Unavailable
60
HOLDER, CABLE
1S3-23317-00-00
Unavailable
61
BOLT, FLANGE
95022-06012-00
Unavailable
